Holzmann SB3116RHN Radial Arm Drill Press 230v

X
Product Code: HOL/SB3116RHN
Brand: Holzmann
Available to Order Please Contact Us
or Call 01726 828 388
£539.99 Inc. VAT
£449.99 Exc. VAT
Holzmann

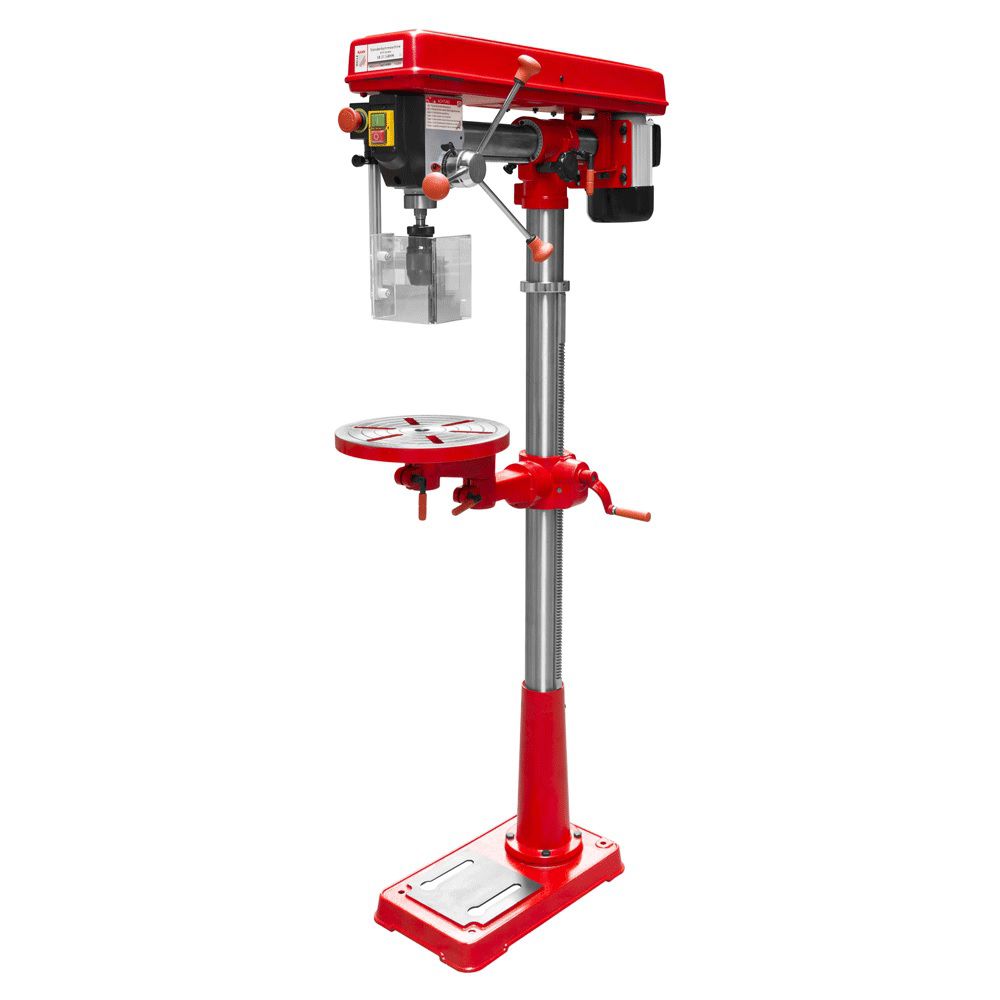

Holzmann SB3116RHN Radial Arm Drill Press 230v



Key Features

  • features solid, polished base with T-nuts
  • aluminum motor according IP54
  • torsion-resistant, solid and polished steel column
  • the worktable is tiltable from-45 to +45 and rotates 360 around table center and column
  • spindle protection cover
  • adjustable drill depth stop with scale for accurate drill depth control
  • includes automatic chuck 3-16mm, B16



Technical details

motor data

  • motor power s6 in W 900
  • motor power s1 in W 600
  • voltage 230V

measurements

  • total dimensions in mm 830x320x1660
  • table size in mm 300
  • outreach in mm 130-430

technical specification

  • max. drilling performance in mm 16
  • base in mm 275×490
  • spindle stroke in mm 80
  • distance spindle-base in mm 1300
  • max. distance spindle-table in mm 740
  • drilling spindle collet MK2 / MT2
  • drilling spindle speed in min-1 (5) 500-2500
  • column diameter in mm 70 / 2

weight

  • net weight in kg 56
  • gross weight in kg 58



Holzmann SB3116RHN Pillar Drill Manual
