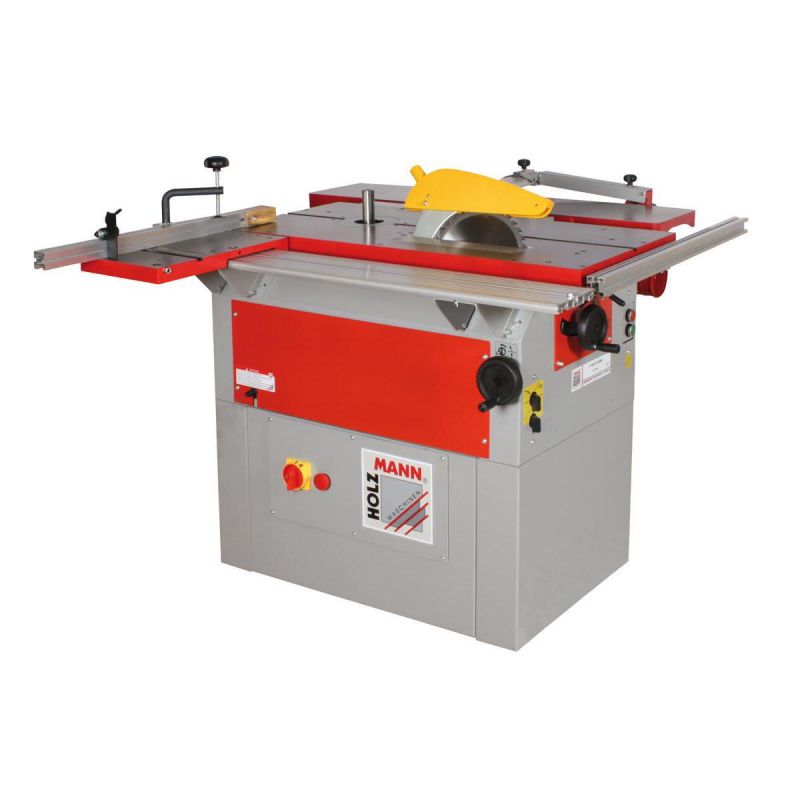

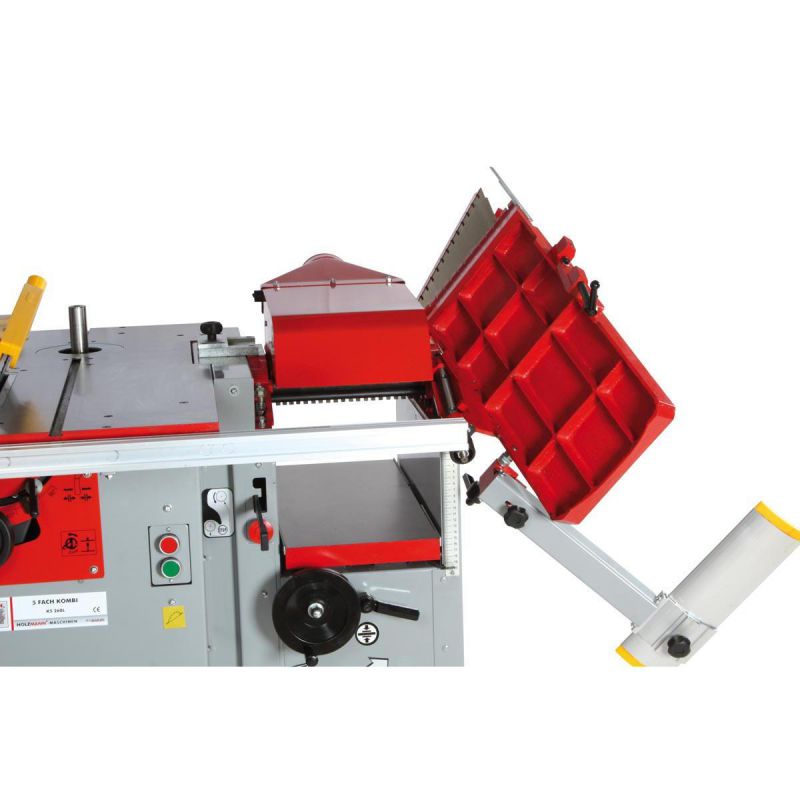

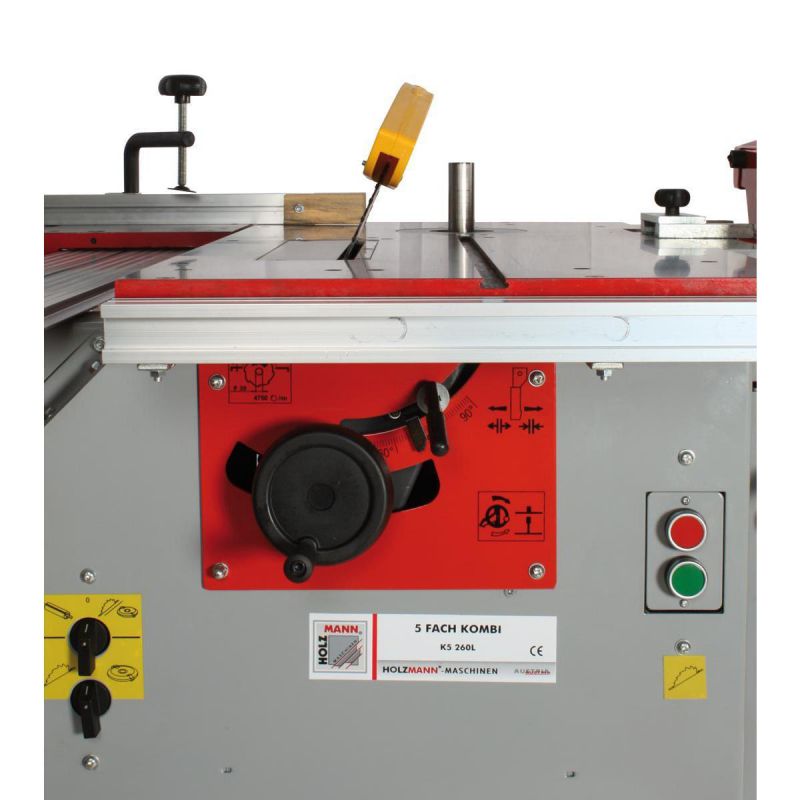

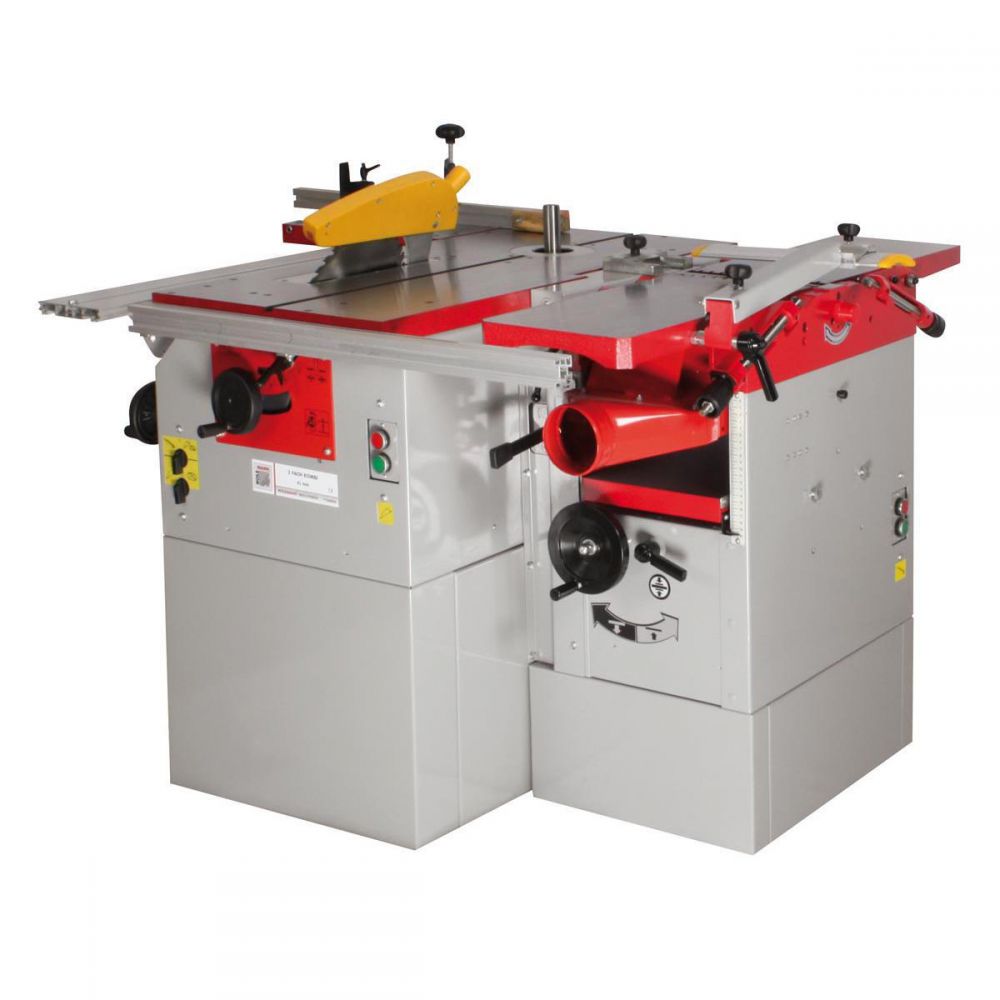

Holzmann K5260L 5 Operation Universal Combination Woodworker 415v
Product Code: HOL/K5260L-415V
Brand: Holzmann
£3,959.99 Inc. VAT
£3,299.99 Exc. VAT
Holzmann K5260L 5 Operation Universal Combination Woodworker 415v
Key Features
- compact universal combination machine with small foot print and optimal price/performance ratio best choice for woodworking enthusiasts with constrained
- workshop capacity
- saw-blade can be tilted with handwheel from 90 – 45°
- large and precision-ground cast iron table with mitre gauge (+-45°) guided in T-slot
- fast and convenient transformation between the operation modes with turn switch
- each machine unit powered by an independent motor delivering long-lasting performance at duty
- solid 3-knife cutterblock with pre-mounted HSS plane knives
- engine power circular saw S1 (100%) / S6 2,2 kW / 3,1 kW
- engine power spindle shaper S1 (100%) / S6 1.5 kW / 2.1 kW
- engine power planer S1 (100%) / S6 1,5 kW / 2,1 kW
- included in delivery: shaper hood incl. guide rail and protective plate, mitre gauge incl. workpiece clamp, mitre fence incl. end stop, rip fence, tiltable (90-45°) planer fence, planer gauge, tools.
- K5260L 5 Operation Universal woodworker. 254mm Dia circular saw + 78mm max depth of cut + sliding table carriage w clamp + 250x195mm planer/thicknesser + spindle moulder + 3 x Independent motors + switch turn for operating modes 2200W / 1500W / 1500W (S1) 415v Trade
- 16 AMP
Technical details
planing
- infeed table length in mm 1090
- fence tilt 90-45°
- planer fence in mm 715×130
- max. thicknessing cutting depth in mm 5
motor data
- motor power s1 in W 2200 / 1500 / 1500
- motor power s6 in W 3100 / 2100 / 2100
- feed speed 8
- voltage 415V
measurements
- sliding table in mm 250×400
- suction port in mm 100
- table height in mm 840
- table size in mm 980×470
cutting performance
- max. cutting height 90° in mm 78
- max. cutting height 45° in mm 60
- max. cutting width at parallel fence in mm 510
thicknessing
- thicknessing height in mm 5-195
general planing
- cutter knives amount 3
- shaft speed in min-1 4500
- shaft diameter in mm 75
technical specification
- max. tool diameter above table 160
- mitre fence in mm 350×125
- table opening in mm 145
- max. tool diameter below table in mm 140
- max. clamping height in mm 80
- spindle stroke in mm 100
- milling spindle speed in min-1 6500
- milling spindle diameter in mm 30
circular saws
- sawblade in mm 254
- sawblade speed in min-1 4750
weight
- gross weight in kg 390
- net weight in kg 375
packaging
- packaging length in mm 1.300
- packaging width in mm 1.170
- packaging height in mm 970
