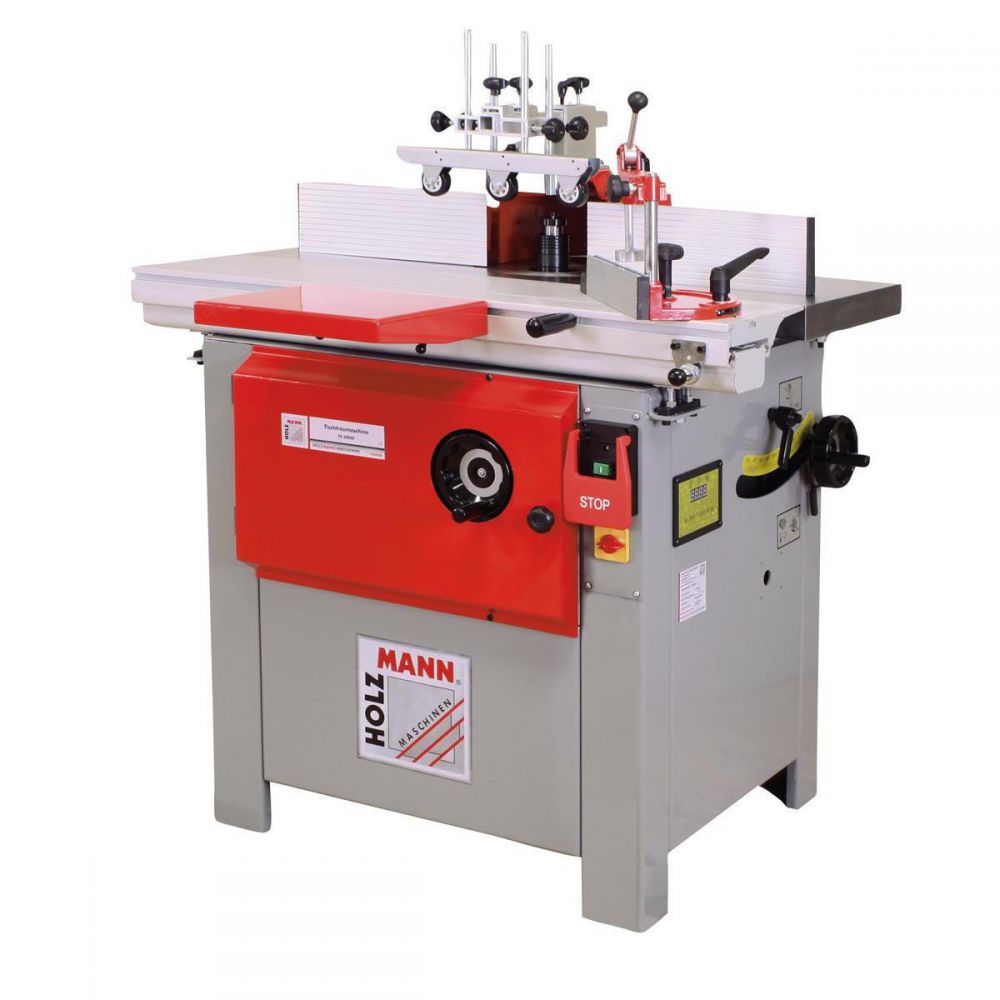

Holzmann FS200SF 4-Speed Tilting Spindle Moulder 230v
Product Code: HOL/FS200SF
Brand: Holzmann
£3,599.99 Inc. VAT
£2,999.99 Exc. VAT
Holzmann FS200SF 4-Speed Tilting Spindle Moulder 230v
Key Features
- massive and torsion-resistant, ground grey cast iron table
- smoothly running aluminium sliding table (250mm width) with extension table (+ 250mm width)
- 4 spindle speeds, maintenance cover positioned at frontside of the machine for convenient speed change.
- Spindle tilts backwards – up to 45°
- HQ shaper fence with guiding-rollers ensures an exact workpiece feeding.
- Electric spindle speed indication via LCD
- Spindle-lock lever positioned at machine side for fast and convenient cutter head change.
- Dust extraction plug diameter: 100mm
- included in delivery:Table extension, spindle shaper guard, angle gauge incl. workpiece clamp, spindle shaper hood
- FS200SF 4 Speed tilting spindle moulder + reverse tilting spindle up to -45dg + cast iron table + 250mm alloy integral sliding table w table extension support & mitre att & clamp 180mm max tool dia + electronic speed indicator + Euro 3 x roller pressure guard + 2800W (S1) motor 230v Professional
- 16 Amp
Technical details
motor data
- Motor power s6 in W 3750
- motor power s1 in W 2800
- voltage 230V
measurements
- table size in mm 1000×360
- table height in mm 900
- suction port in mm 100
- sliding table in mm 1000×250
technical specification
- milling spindle diameter in mm 30
- milling spindle speed in min-1 1800/3000/6000/9000
- spindle stroke in mm 100
- max. clamping height in mm 100
- milling spindle swivel 0° +45°
- max. tool diameter below table in mm 180
- table opening in mm 200
- mitre fence in mm 360×120
- max. tool diameter above table 180
weight
