Draper Expert Auto-Ranging Digital Clamp Meter - 41911
Product Code: DRA/41911
Brand: Draper Expert
In Offsite Stock - Delivery in 4 to 5 Days
£82.56 Inc. VAT
£68.80 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

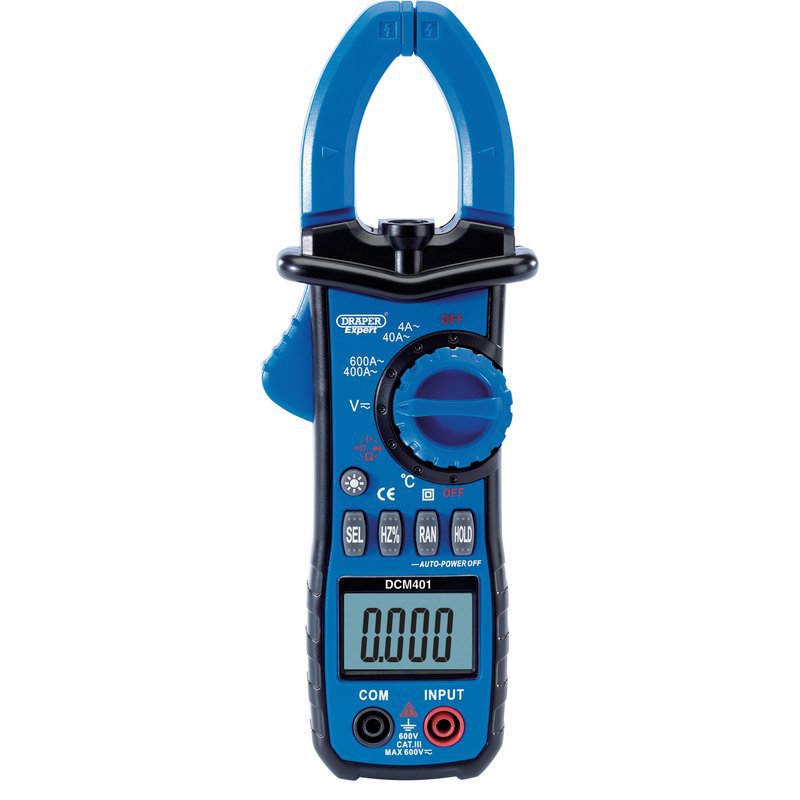

Draper Expert Auto-Ranging Digital Clamp Meter
ref: 41911 / DCM401
Key Features
- Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing.
- Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off and a useful inspection light.
- Supplied with test leads, temp probe and a case.
Specification
- AC Amps: 4A/40A/400A/600A
- AC Current: 4A/40A/400A/600A
- AC Voltage: 400mV/4V/40V/400V/600V
- Automatic Power Off: Yes
- Battery: 3 x AAA (not supplied)
- Capacitance: 5nF/50nF/500nF/5µF/50µF/200µF
- DC Current: N/A
- DC Voltage: 400mV/4V/40V/400V/600V
- Diode on/off Test: Yes
- Dimensions: 230mm x 156mm x 62mm
- Duty Ratio: N/A
- Dwell: N/A
- Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
- Resistance (Ohms): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Symbol Unit Data Hold: Yes
- TACH: N/A
- Temperature Range: -20°C - 1000°C
- Weight: 488g (approx)
