Charnwood W740 16'' Woodworking Bandsaw - CAST IRON WHEELS

X
Product Code: CH/W740
Brand: Charnwood
Stock Due Soon
Please Call For Update
£1,199.00 Inc. VAT
£999.17 Exc. VAT
Charnwood

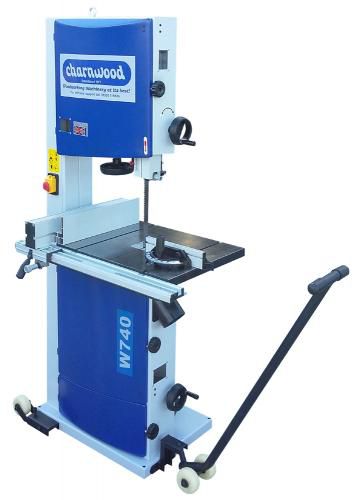

Charnwood W740 - 16'' Professional Woodworking Bandsaw



Key Features

  • A large trade rated woodworking bandsaw packed with features you would expect to find on a machine ready for professional use.
  • Cast Iron Wheels
  • 10" Cutting Depth Capacity
  • 16" Width Cutting Capacity

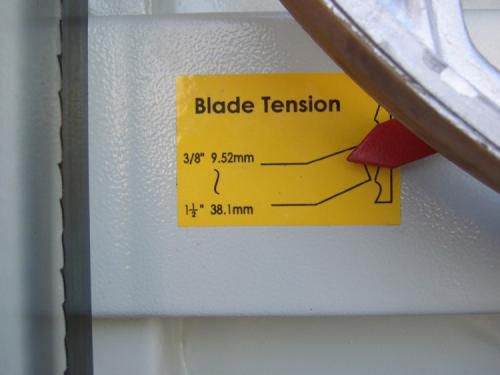

  • Blade Tension Indicator
  • 3hp Induction Motor with Brake
  • Wheel Kit Included



Strengths and benefits

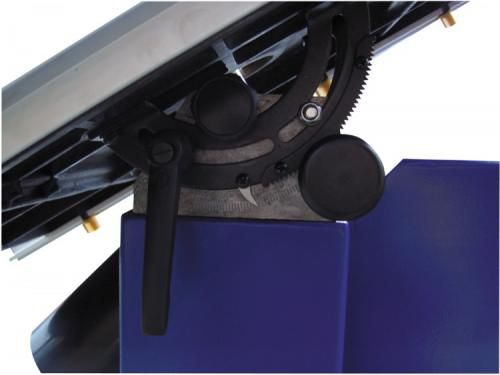

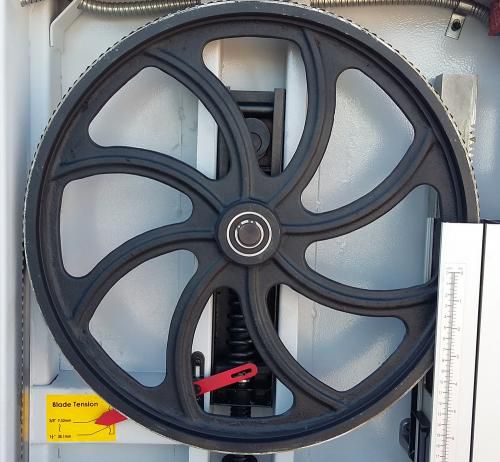

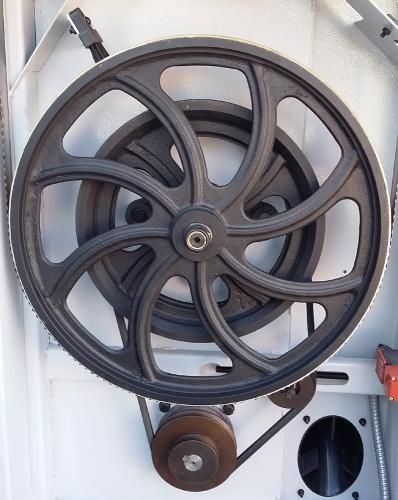

  • 16" diameter cast iron balanced wheels and a powerful 3hp mechanically braked, induction motor give this bandsaw serious cutting capacities ideal for a production workshop or ambitious woodturner. The angle of the heavy cast iron table is adjusted by a handle at the rear and the work is guided by using either the quick lock rip fence, with a scale in both metric and imperial, or a well made sliding mitre fence for crosscutting. Setting the bandsaw blade tension correctly is made simple with the addition of a quick release lever and a tension indicator. A wheel kit gives the user complete freedom to move the bandsaw around the workshop.

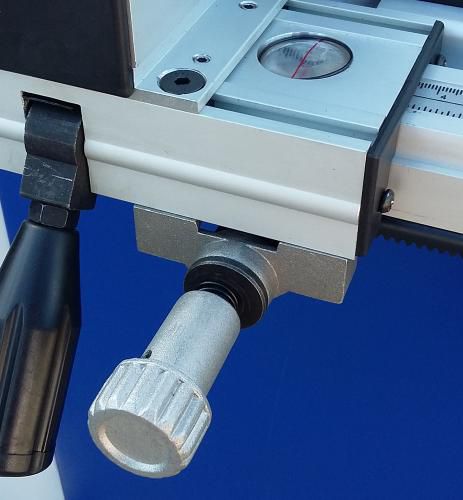

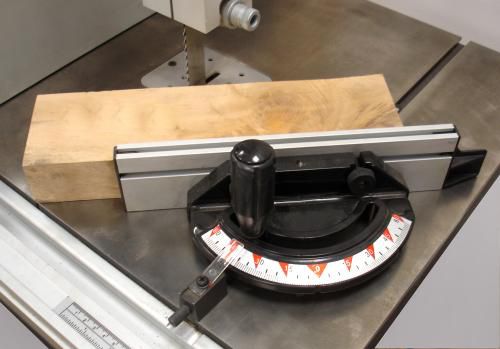

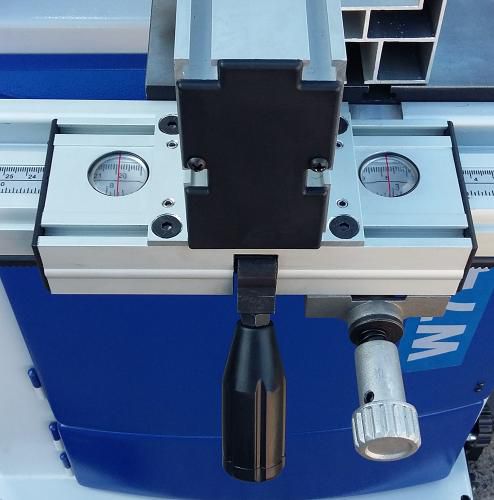

  • The Charnwood W740 woodworking bandsaw comes supplied with rip fence with micro adjuster, a cast metal sliding mitre guide and fence adjustable 60 degrees each way with preset stops, 25mm woodcutting blade, 2 x 100mm diameter extraction outlets, wheel kit and 2.5m power cable with UK 3 pin plug.
  • Runs on a standard 13 amp electric supply.



Specification

  • Maximum cutting depth: 255mm (10")
  • Throat width: 410mm (16")
  • Max. cutting width with fence: 275mm Left / 225mm Right
  • Table size: 560mm x 450mm
  • Table height: 890mm
  • Table tilt: -10 to +45
  • Mitre Guide T-Slot: (x2) 10mm / 16mm
  • Cutting speed: 420 & 840m/min
  • Motor (induction) Braked: 2200w (3hp)
  • Blade length: 3345mm
  • Blade widths: 10-38mm (3/8" - 1.1/2")
  • Dimensions (WxDxH): 965mm x 800mm x 1760mm
  • Weight: 150kg
  • Assembly Time Required: 60 Minutes (Needs 2 People)
  • Rating: Trade
  • Warranty: 1 Year



W740 Owners Manual.pdf
