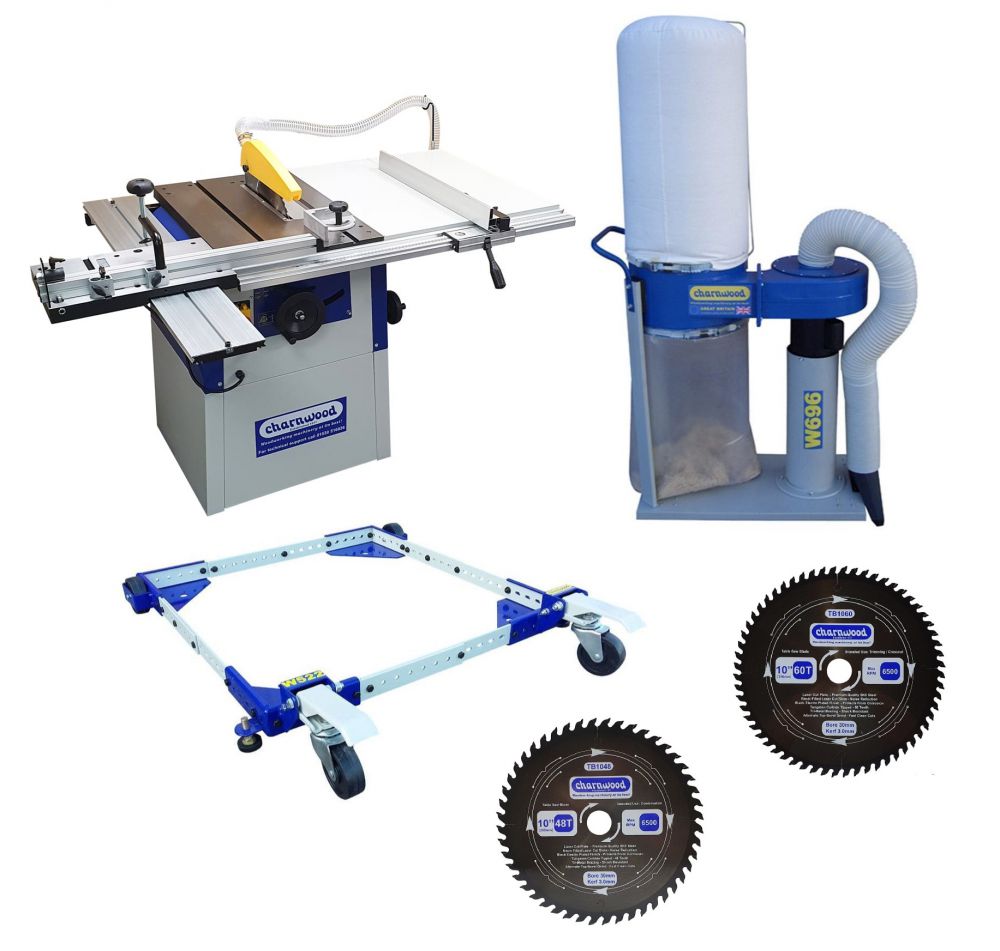

Charnwood W629PD 10" Table Saw Package with Extractor, Base and Blades

Charnwood W629PD 10" Table Saw Package with Extractor, Base and Blades

Free Delivery *

RRP £1426 - SAVE £227

Offer until 31st July - or while stocks last

• W629 Cast Iron Table saw 10” Diameter Blade
• W696 1hp Portable Dust Extractor
• W522 Universal Wheel Base
• TB1048 48 Tooth TCT Saw Blade
• TB1060 60 Tooth TCT Saw Blade

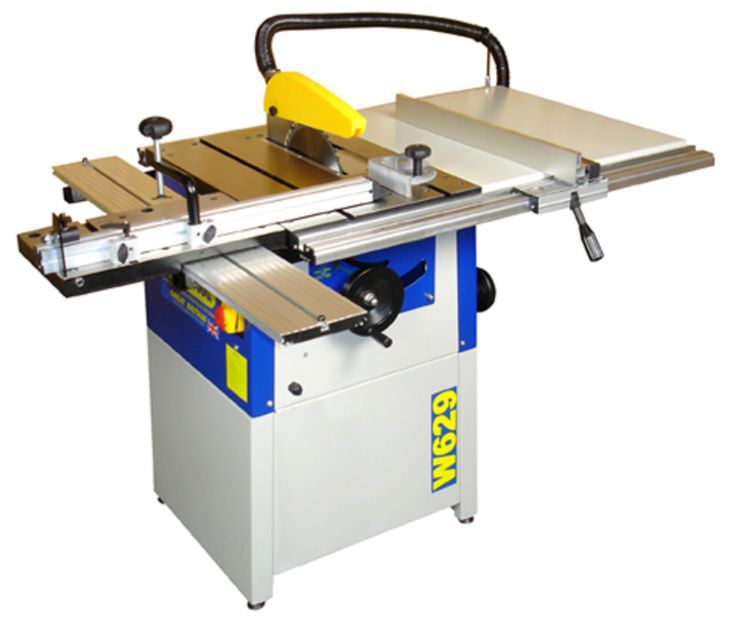

Charnwood W629 Table Saw - 10" Cast Iron Table Saw

• The W629 is our best selling table saw model. The cutting capacities are big enough for any hobby workshop, providing a level of accuracy only normally found on industrial machinery, with a compact foot print suited to the average sized workshop.
• The quiet running induction motor turns the blade via a drive belt which means the blade is mounted onto a dedicated shaft. Expect greatly reduced noise and increased accuracy. Far superior to any gearbox type system found on most hobby level machines.
• Blade height and blade angle are controlled using 2 separate hand wheels. The front handle adjusts the height of the blade, 1 clockwise rotation lowers the blade by 2mm. The side hand wheel adjusts the angle of the blade, anywhere from 90 degrees to 45 degrees with a locking level to ensure it does not creep. There is a large scale on the front of the cabinet to read the current angle off.
• The rip fence slides smoothly along an aluminium rail. A single locking lever sets the fence at the desired width, anywhere up to the huge capacity of 730mm (28″).  There is a sight line looking down onto a scale measured in millimeters. The scale has 2 sets of numbers depending on whether the guide fence is set in the high or low position. For general working the higher fence face is used, but for cutting very narrow strips the fence is rotated to the low position to give clearance right up to the side of the blade.
• For quick crosscut jobs there is a sliding mitre fence supplied which runs in one of the T-slots, located on each side of the saw blade. The block is a one-piece metal diecast and has 2 perpendicular faces which can be rotated by 45 degrees each way. The front face has a slot allowing a home made sacrificial fence to be added.
• For very accurate crosscutting, the highlight of the saw is the sliding table. It glides along a guide rail running on 4 bearings. When pulled into the forward position it can load a 500mm (20″) board onto the table. There is a vertical work clamp to hold the board whilst making the cut. The angle of the back fence can be adjusted through a range of 45 degrees, with a positive stop to bring it back to 90 degrees. A flip over length stop completes the setup for making repeat cuts.
• The hose kit supplied collects dust from the overhead saw guard and from underneath the blade meeting at a single 100mm diameter hose connection point at the back of the machine.
• Supplied with 36 tooth TCT saw blade, sliding table, sliding mitre fence, side extension tables, floor stand, 4 adjustable feet, push stick, 1.7m power cable and UK 3 pin plug.
• It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. We recommend our model W696 which also has an induction motor to keep the noise level low.

There are alternate ways to configure the table saw:

• The sliding carriage can be fitted on either side of the blade so that you can work on the left or right.
• If you are not using the sliding carriage, you can fit one extension table on either side of the blade.
• For compact storage the extension tables and sliding carriage can be quickly removed, (takes around 3 minutes). They reassemble without any further setting up required. With these parts removed the body of the saw measures 70cm wide x 100cm deep.
• Please note: It is not possible to use a stacked dado set with this saw.

• Main Table Size: 420mm x 635mm
• Table Size (with Extensions): 1000mm x 635mm
• Maximum Ripping Width Using Fence: 730mm
• Crosscut Table Size: 400mm x 180mm
• Maximum Crosscutting Width: 500mm (680mm using reverse table)
• Blade Tilt: 90 - 45 degrees
• Cutting Depth at 90 degrees: 80mm
• Cutting Depth at 45 degrees: 64mm
• Blade Diameter: 250mm
• Blade Bore: 30mm
• Work Table Height: 845mm
• Motor (induction) Braked: 2200w (3hp) / 240v
• No-Load Blade Speed: 4000 rpm
• Minimum Blade Width (Kerf): 3.0mm
• Dimensions (WxDxH): 1480mm x 1000mm x 1100mm
• Weight: 110Kg
• Rating: Light Trade
• Warranty: 5 Years

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips. The hose kit supplied collects dust from the sawguard and takes it to the single 100mm diameter hose connection point at the back of the machine.

Charnwood W629 Owners Manual

Charnwood Machinery 5 Year Guarantee

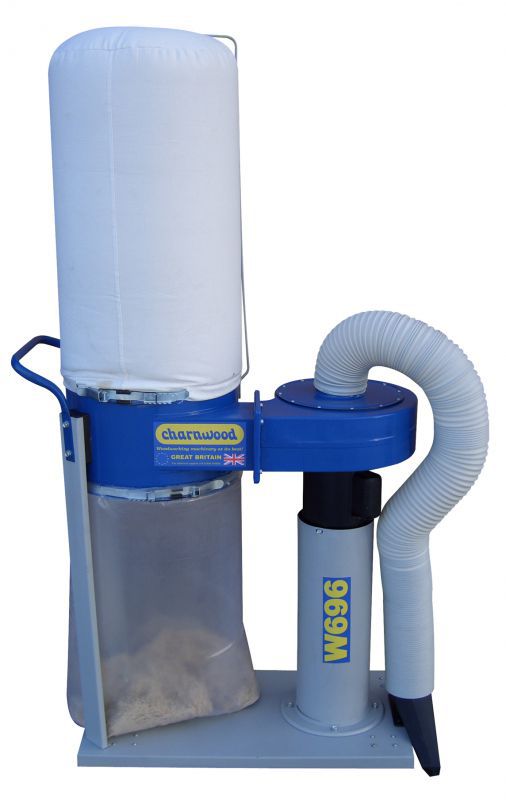

Charnwood W696 - Single Bag Portable Dust Extractor - Chip Collector

The best buy in our Hobby range of wood dust and chip extractors, this amazingly low priced unit brings affordable dust control to the woodworking enthusiast.

It is a portable floorstanding unit intended for the one-man workshop and can be connected to any bench top machine or floorstanding machine such as bandsaws, planer thicknessers, table saws. The inclusion of the floor sweeping attachment means it can easily be used to clean up the workshop floor.

• Quiet Induction Motor
• Highly Portable
• 5 Micron Filter Bag
• Tough Powder Coated Pain Finish
• Transparent Collection Bag
• Quick Action Metal Bag Clamps

The induction motor ensures that noise levels are kept to a minimum. Dust and chippings are all collected in the transparent collection bag which when full can either be emptied and refitted or disposed of and a replacement fitted.

The extractor is finished in a tough paint job to keep its looks for many years.

The maximum running time for this machine is 2 hours without rest. If you are a professional user who needs continous extraction, please see the equivalent machine in our professional range W790.

Supplied with steel fan, 2 metre length of our tough adjustable length hose, transparent plastic collection bag with quick release metal strap, floorsweep, castors, NVR switch, cable and plug.

• Motor (Induction) 750w (1hp)
• Voltage 240v
• Flowrate (cubic metres per hour) 1020m3/hour
• Inlet Diameter 100mm
• Collection Bag Capacity 70 Litres
• Dimensions (WxDxH) 900mm x 390mm x 1570mm
• Weight 30kg
• Rating Hobby
• Warranty 5 Years

We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.

Charnwood W696 Operators Manual

Charnwood Machinery 5 Year Guarantee

Knowledge Centre - Buyers Guide to Dust Extraction

Charnwood W522 - Universal Wheel Base

• Constantly having to push one machine to the back of the workshop to make space to bring another one forward ?
• Convert your machines into portable units by adding this highly adaptable wheel base. There are two fixed wheels and two steering wheels allowing excellent manoeuvring across a relatively flat floor surface. Step on the two foot plates to lower the wheels for moving the machine, then raise the two foot plates to lower the base back onto the adjustable rubber feet.
• The base can be assembled either as a square shape or a rectangle shape to suit the footprint of the machine being mounted.
• It can be used with a huge variety of machines including Planer Thicknessers, Table Saws, Bandsaws, Spindle Moulders and Lathes.

• Minimum square size 340mm x 340mm
• Maximum square size 930mm x 930mm
• Maximum rectangle size 520mm x 1340mm
• Maximum weight load 295kg
• Rating Light trade
• Warranty 1 Year

Charnwood W522 Owners Manual
