Charnwood W583 10'' x 7'' Planer Thicknesser Combined

Charnwood W583 10" x 7" Surface Planer & Thicknesser Combined

• A solid and well finished planer thicknesser for the busy workshop.
• Precision Ground Cast Iron Beds
• 2hp Induction Motor
• 3 Knife Cutterblock for Superior Finish
• 10'' Surface Planing Capacity
• 10'' x 7'' Thicknessing Capacity
• Rubber Coated Outfeed Roller
• 100mm diameter Dust Extraction Outlet
• Optional Wheel Base Available

• Precision ground cast iron beds and a long tilting fence which can be positioned at any point across the table make this surface planer a delight to use. The 3 knife cutterblock is powered by a 2hp induction motor and is capable of a cut up to 5mm deep in a single pass.
• To gain better visibility and access for thicknessing, both of the planing beds are hinged and swing out of the way, without using any tools. A dust hood / cutter gaurd is then swung into position and the conversion to Thicknesser is complete.

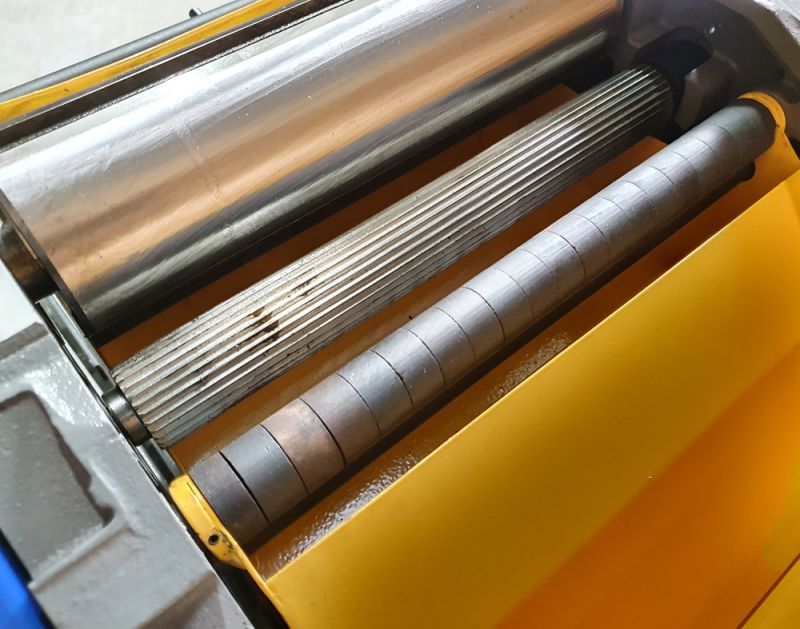

• The feed roller drive, which features a rubber outfeed roller, can be disengaged during planing operations to save motor power and general wear on the machine.
• Supplied with 3 knives, 100mm dust extraction outlet, 4 adjustable feet, cable and plug.
• Our planer thicknesser will run off any standard 13amp supply.

• Surfacing width: 250mm (10")
• Length of surfacing tables: 1085mm
• Maximum depth of cut: 5mm
• Fence tilt: 90 - 45 degrees
• Table height: 856mm

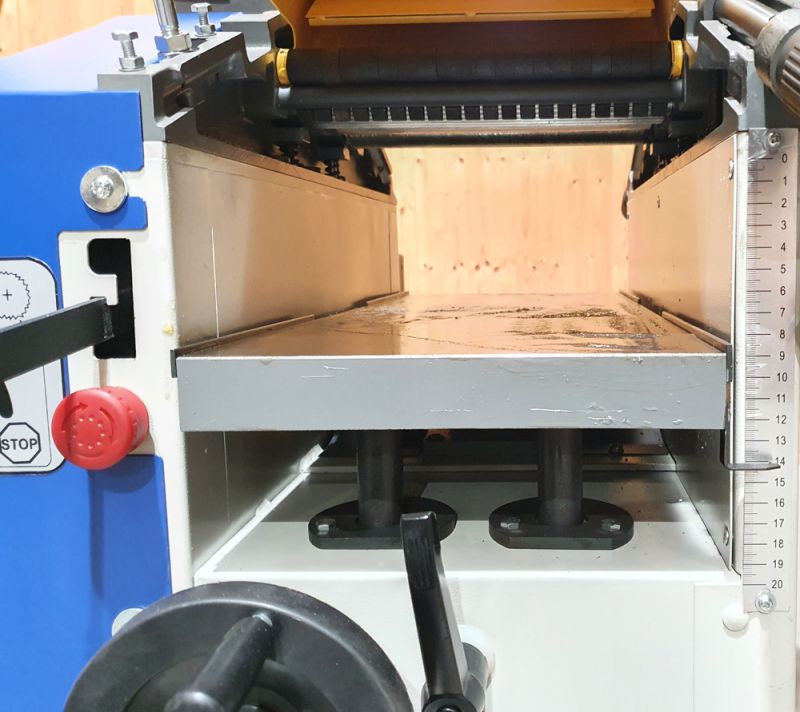

• Thicknessing capacity: 5-195mm (1/4"-7")
• Length of thicknessing table: 600mm
• Feed speed: 5.5m/min
• Maximum depth of cut: 2.5mm
• Cutterblock speed: 4000rpm
• Number of knives: 3
• Motor (induction): 1500w (2hp)
• Dimensions (WxDxH): 1085mm x 1000mm x 600mm
• Weight: 150kg
• Rating: Trade
• Warranty: 5 Years

It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
