Charnwood V3SJ Stepped Jaws for Viper3 Chuck

X
Product Code: CH/V3SJ
Brand: Charnwood
Low Stock - Please Call For Availability
£30.00 Inc. VAT
£25.00 Exc. VAT
COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Check out our Fair Deal on Delivery Promise
Charnwood

Charnwood V3SJ
Stepped Jaws for VIPER3 Chuck



Key Features

Stepped Jaws for Viper3 Chuck.

Set of 4 optional jaws for our Viper3 geared scroll chuck. The Stepped jaws have a serrated edge both internally and externally. They give great flexibility by combining standard sized jaws and pin jaws. Jaws project 24mm from base plate.

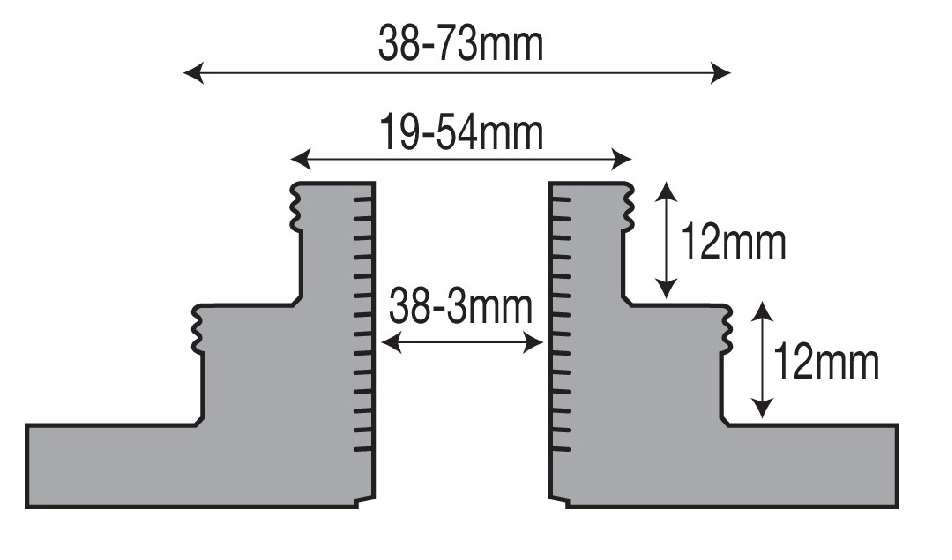

  • Step 1 Expands from 19mm to 54mm
  • Step 2 Expands from 38mm to 73mm
  • Contracts from 38mm to 3mm

Jaws for the Viper3 are compatible with the following chucks:

  • Charnwood W836 (Requires V3JS jaw screw set)
  • Vicmark VM100 (Requires V3JS jaw screw set)
  • Record RP4000
  • Rutlands Dakota XT700
  • Warco 9405
  • Craft Supplies CS400
  • Fox FX4000
  • Does not fit Axminster
