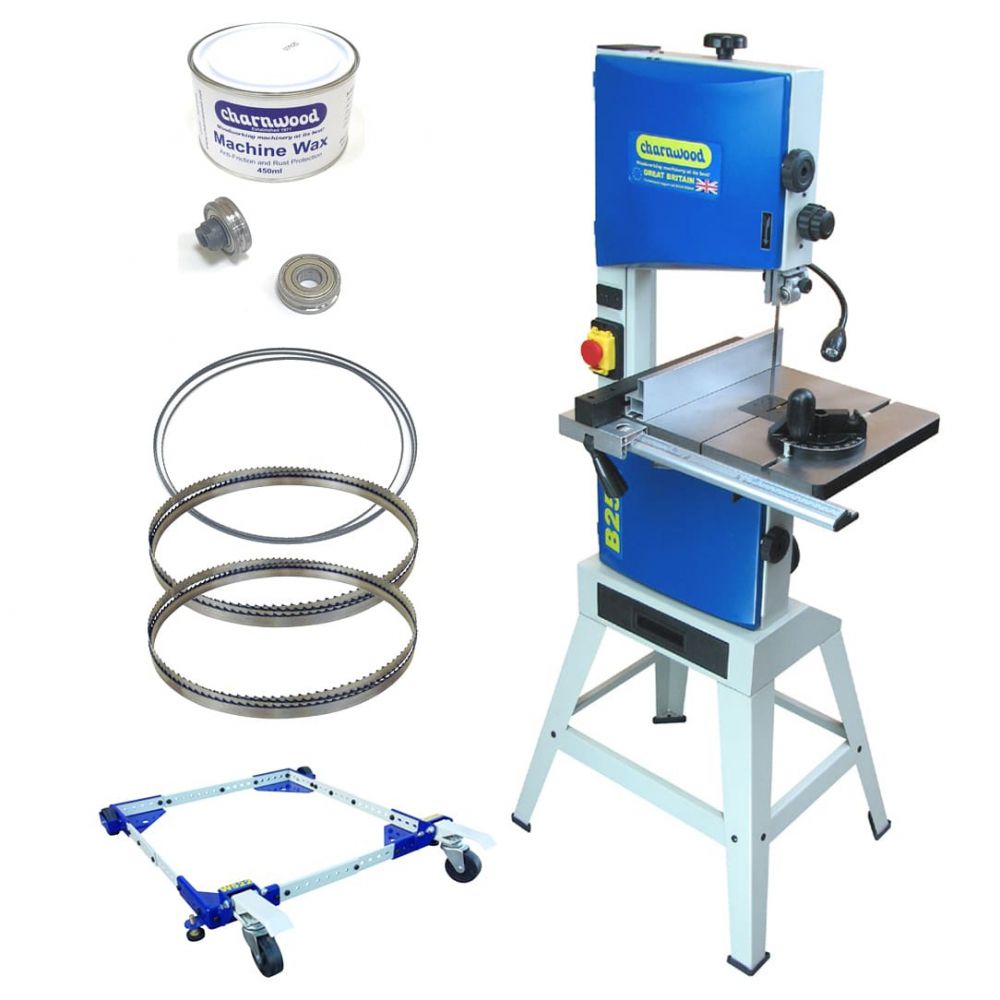

Charnwood Super Bundle B250PD: 10” Bandsaw, Wheel Kit, 3 Spare Blades, Scroll Guide System & Machine Wax

Charnwood Super Bundle B250PD

10” Bandsaw, Wheel Kit, 3 Spare Blades, Scroll Guide System & Machine Wax

Bundle Saves £74

Our most complete bundle ever. Includes everything you need to take your hobby to the next level. Whether you want to rip down planks, cut down bowl blanks or take on delicate scroll work using our new guide system: this bundle has it all.

• B250 10″ Floor Standing Bandsaw
• W522 Mobile Base
• BB24 3mm Bandsaw Blade
• BB25 6mm Bandsaw Blade
• BB27 13mm Bandsaw Blade
• BBSG2 Scroll Guide System For 3mm Blade
• MW450 Machine Protection Wax

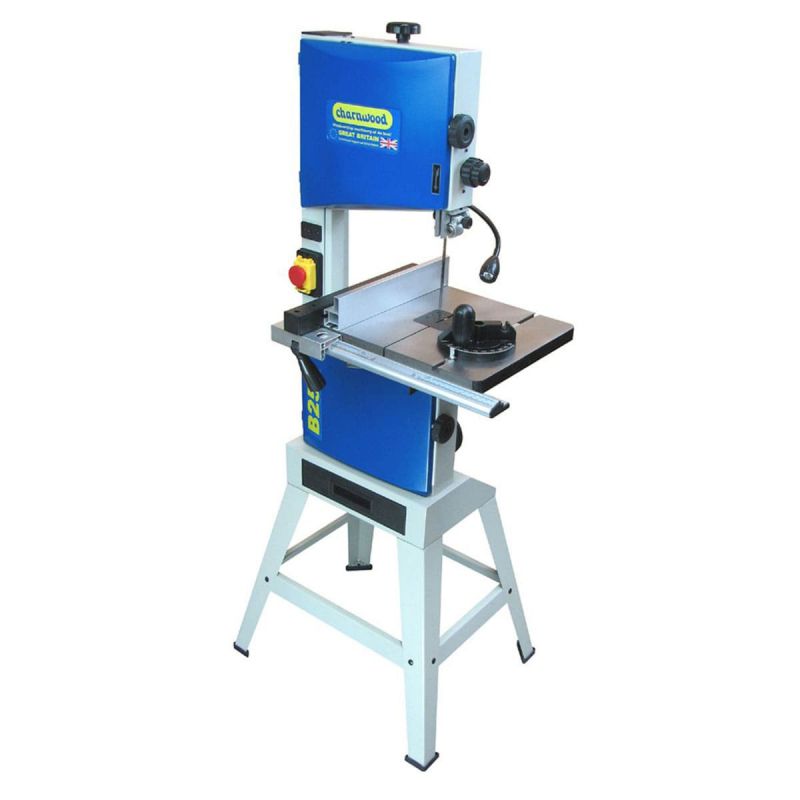

B250 10” Woodworking Bandsaw 6″ Cutting Depth – 375w

• A compact floor standing woodworking bandsaw with a massive cutting capacity, for a machine of this size and price, of 150mm (6″). The big capacity makes it an ideal choice for woodworkers who are short on space. The power is delivered by a quiet induction motor with a belt drive to the bandsaw wheel.
• The key to straight and accurate cutting on a bandsaw is to have a good set of blade guides. The B250 has three sealed bearings on the blade guard. Two mounted side-on to the blade to control blade twist and keep it true. The rear bearing takes the thrust of the back of the blade allowing it to run freely. The same setup is then repeated beneath the table.
• The cast iron table tilts from 90 degrees to 45 degrees and has a positive stop at both of those positions. Any angle in between can be read off the scale and locked in. For rip cuts the guide fence can be situated on either side of the blade, can be locked into position with a single press of the lever and has a clear marker to set against the metric scale. The fence itself can be fitted in two ways. When cutting thicker material the full face height of 60mm is used. When cutting thin and narrow strips the fence is fitted with the small face, against the blade to allow clearance around the guides.
• For crosscutting there is a sliding mitre guide included which can be locked at any angle through a range of 120 degrees. There are positive stops at 90 and 45 each way for those most commonly used angles.
• The two doors are fitted with safety locks which cut power to the motor when the doors are open for blade changing or cleaning.

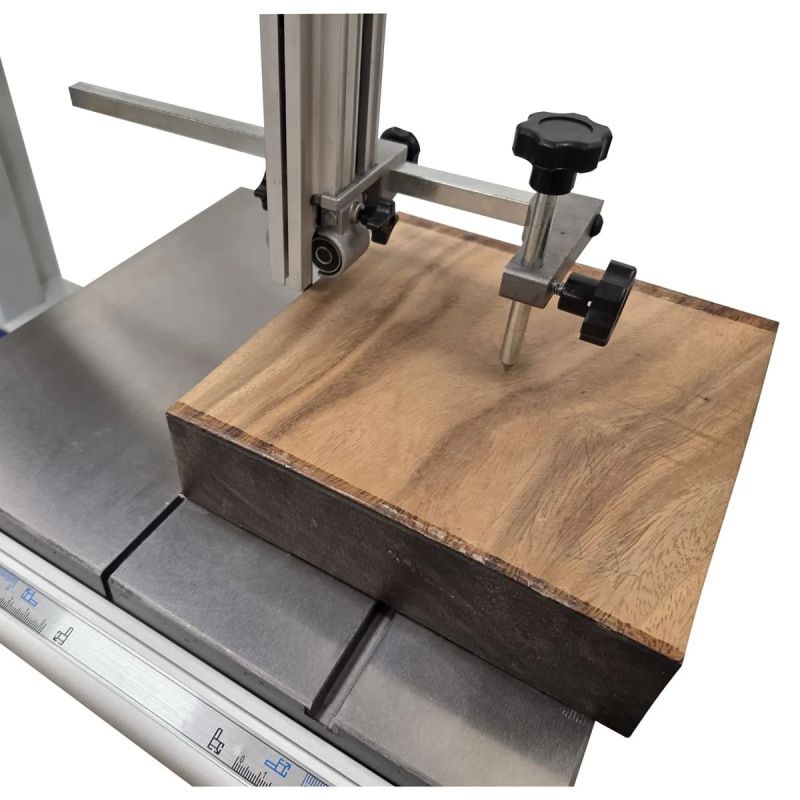

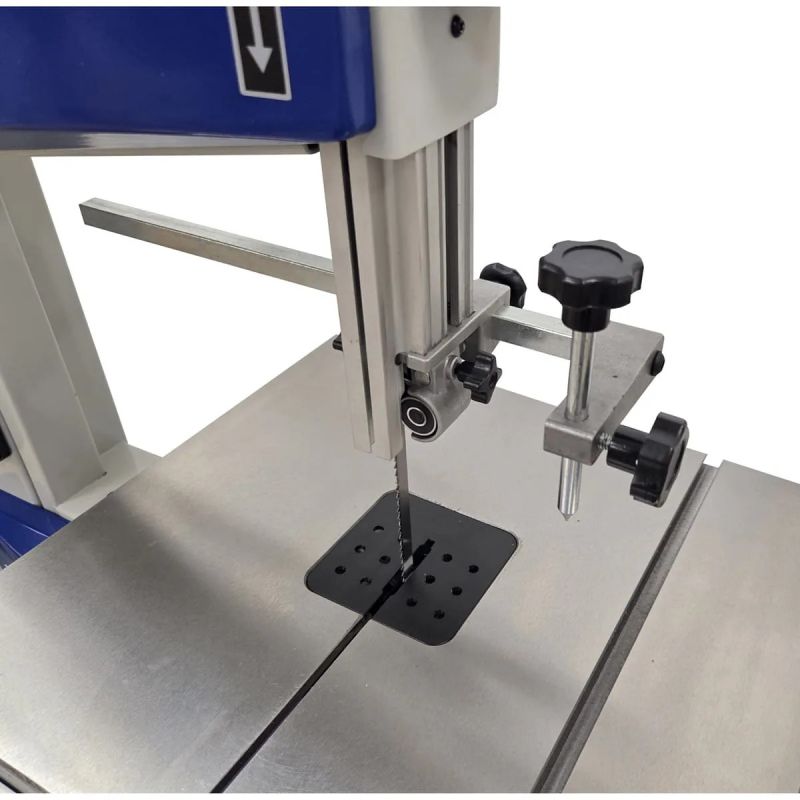

• A useful addition, especially for woodturners, is the addition of a circle cutting attachment. A sharp pointer can be lowered into the centre point of the circle and the diameter set on the support arm. Using this guide you can cut circles of any diameter up to 600mm.
• A dust extractor is always recommended when using a bandsaw. The dust collection outlet has 3 rings which allow it to accept 3 sizes of hose, 50mm, 75mm & 100mm diameter making it compatible with any type of extraction system. If extraction is not being used however, the bandsaw is fitted with an integral dust collection draw. Dust falling into the base of the machine will be collected here, allowing it to be quickly and easily emptied.
• Supplied with 3/8” x 6tpi blade, rip fence, mitre fence, work light, floor stand, circle cutting attachment, 1.8m power cable and UK 3 pin plug.
• This Bandsaw is fitted with a High Quality, British manufactured blade with precision ground teeth for incredible cutting results.
• The primary use of this bandsaw is for woodworking and the blade supplied is suitable for cutting both hard and soft woods. The blade supplied can also cut Non-ferrous metals, Plastic and Acrylic. It is possible to use this bandsaw for cutting other materials, but only with a suitable blade fitted.

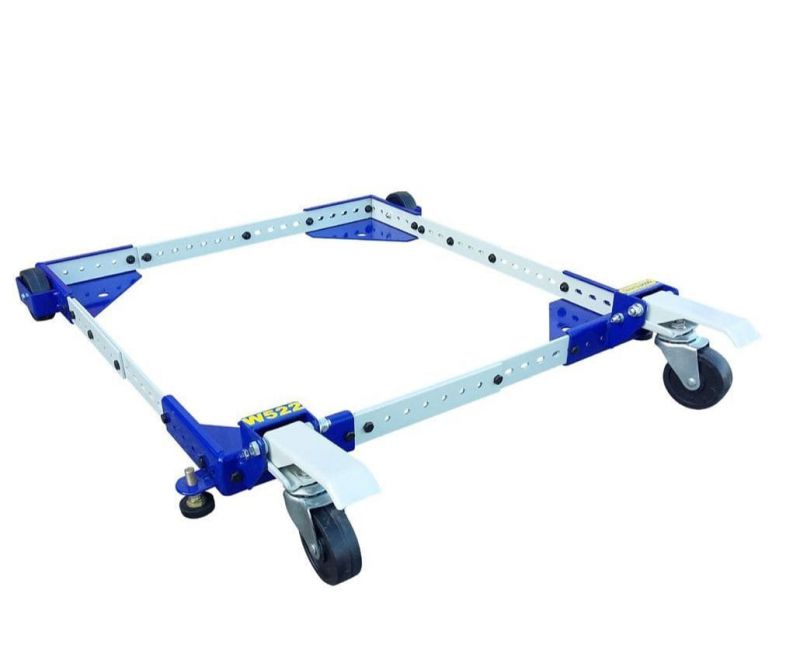

Wheel Base

• A heavy duty wheel base with all steel construction
• 2 Fixed Wheels, 2 Steering Wheels
• Foot Pedal Control
• Rubber Pads For Stability

Bandsaw Blades

• Manufactured in Great Britain.
• Designed for all types of wood cutting, including contours, our Premium bandsaw blades feature a spring tempered high carbon steel blade with induction re-hardened teeth to 62HRC, providing decreased production times, better surface finish, increased fatigue resistance and longer blade life.
• Ground teeth assure precision cutting, better finish and less kerf loss.
• High carbon steel body hardened and tempered to 45 Rockwell C Hardness withstands greater cutting pressures and optimises fatigue strength.
• Faster and more precise cuts.
• Hardened teeth to 62HRC ensure longer life.
• Teeth can be re-ground or re-shaped and re-set.
• Lower cost per cut.

The bundle includes 3 blades in different widths: 3mm, 6mm & 13mm. A 10mm blade is already fitted to the machine.

Note: The 3mm blade should only be used withe the scroll guide bearings installed.

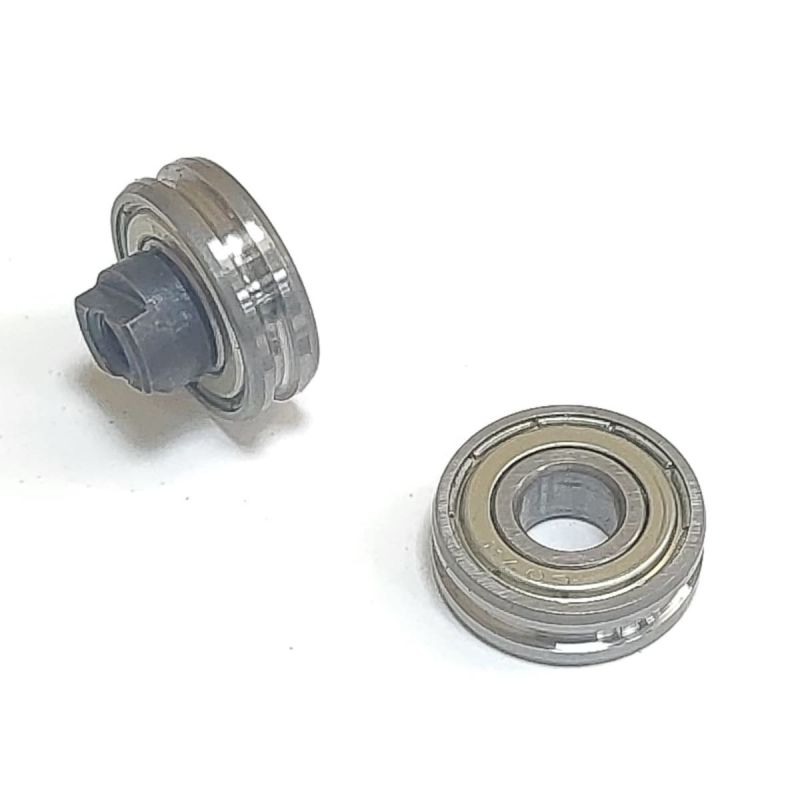

Scroll Guide System

• When used with a bandsaw blade of 3mm width, the Scroll Guide System enhances your creativity, by allowing you to make tight radius cuts in material of greater depth than can be accommodated by a scroll saw.
• Replaces The Standard Rear Bearings
• Use with a 3mm Blade To Cut Tight Radius Curves
• Can Cut A Circle Diameter of 30mm
• Grooved Bearings Support The Blade Whilst Allowing It To Twist
• Simple & Quick Installation

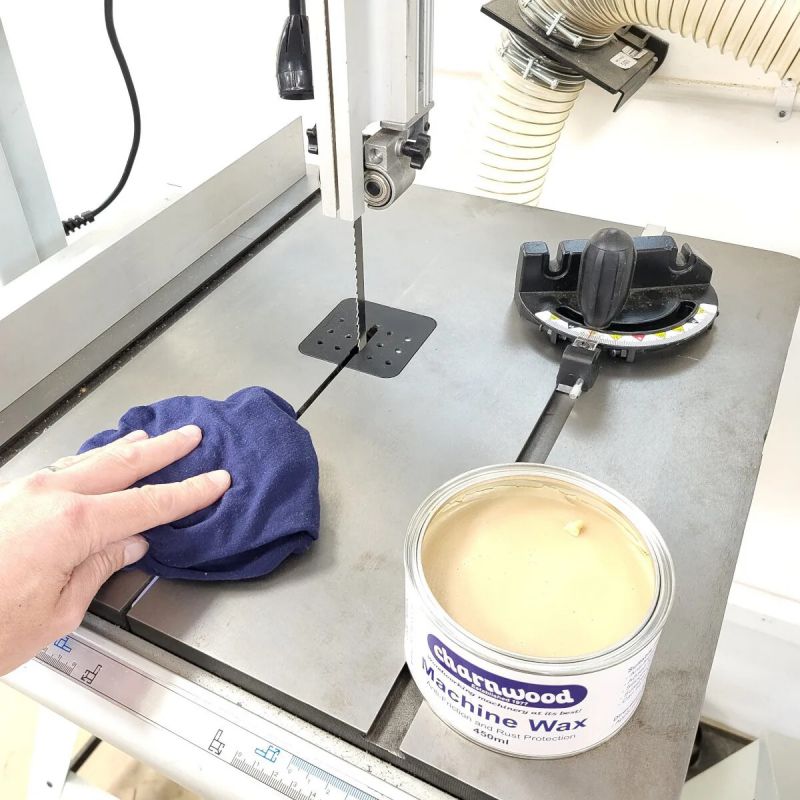

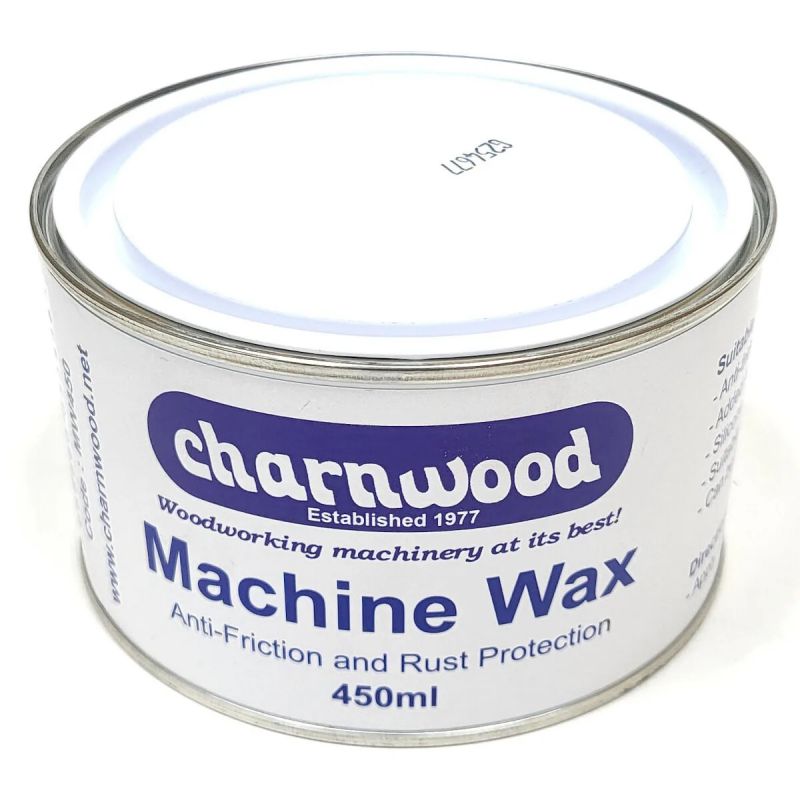

Machine Protection Wax

• Anti-Friction Wax for Bandsaw Tables
• Added Anti Rust Agent to Protect Cast Iron
• Silicone Free so will not mark your timber
• Suitable for Lubricating Saw Blades

• Maximum cutting depth: 150mm (6")
• Throat width: 245mm (10")
• Max. cutting width with fence: 105mm Left / 120mm Right
• Table size: 360mm x 320mm
• Table Height: 940mm
• Table tilt: 90-45 degrees
• Mitre Guide T-Slot: 8.5mm / 14mm
• Cutting speeds: 400 & 800m/min
• Motor (induction): 375w (1/2hp)
• Blade length: 1826mm
• Blade widths: 6-13mm (1/4" - 1/2")
• Dimensions (WxDxH): 670mm x 530mm x 1450mm
• Weight: 41Kg
• Assembly Time Required: 45 Minutes
• Rating: Light Trade
• Product Guarantee: 5 Years

Charnwood B250 Owners Manual

Charnwood Machinery Five Year Guarantee

If you’re unsure which bandsaw is right for you, visit our Knowledge Centre for a helpful guide to choosing woodworking bandsaws and blades.
