Charnwood SMG19 Sliding Mitre Guide Fence For 19mm Slots
Product Code: CH/SMG19
Brand: Charnwood
Stock Due Soon
Please Contact Us For Update
Please Contact Us For Update
£45.00 Inc. VAT
£37.50 Exc. VAT

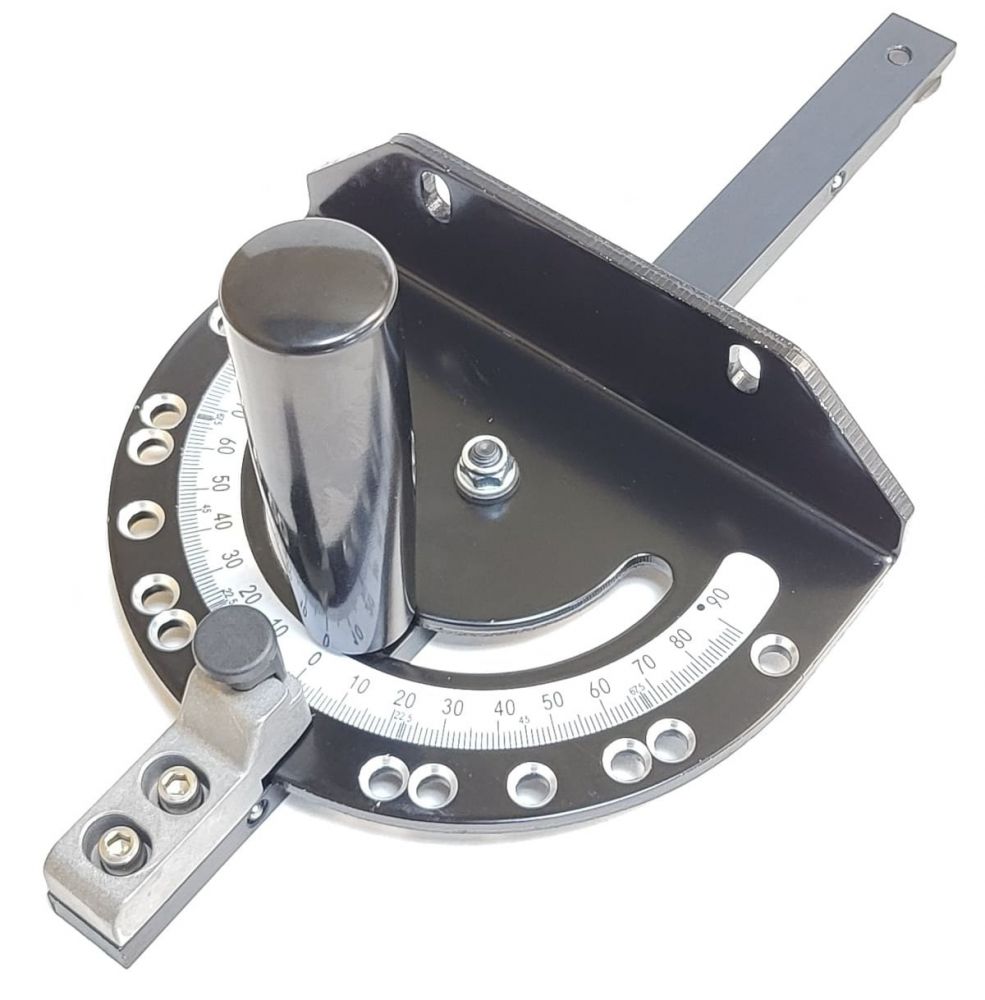

Charnwood SMG19 Sliding Mitre Guide Fence For 19mm Slots
Key Features
- This sliding crosscut mitre fence uses a steel bar 19mm wide, making it compatible with many woodworking machines, particularly those originating in North America.
- It can be used with a plain table slot or a T-slot where the wider part is 25mm (1″). A 25mm guide button prevents lifting when it is used with a T-slot, which can be removed when using a plain slot.

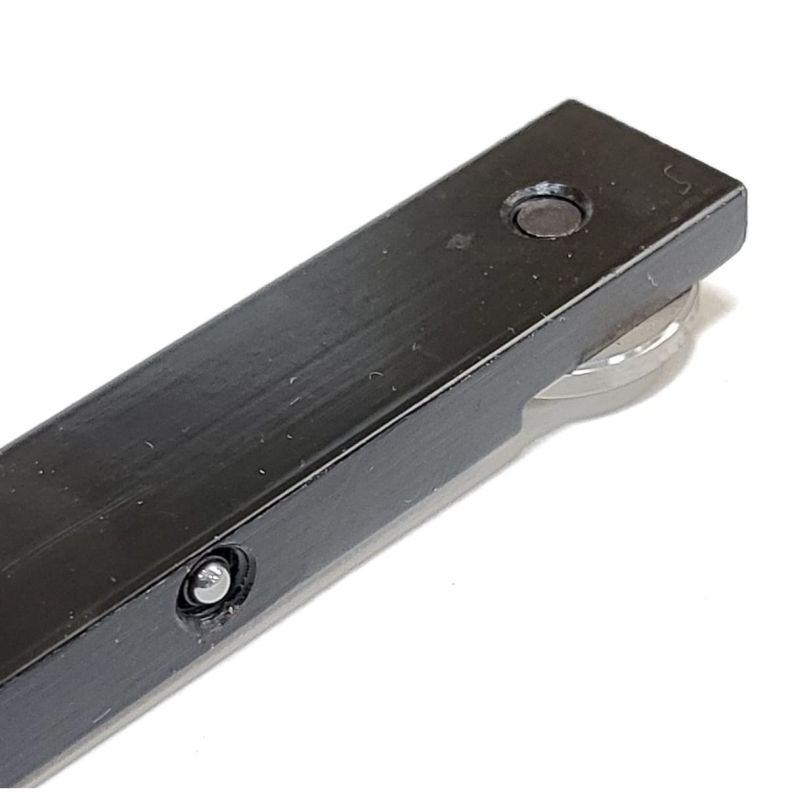

- Along the side of the bar are three ball bearings which can be adjusted to remove any play between the bar and the slot. They are adjusted by grub screws so that the bar will always give a smooth feel and an accurate angle.

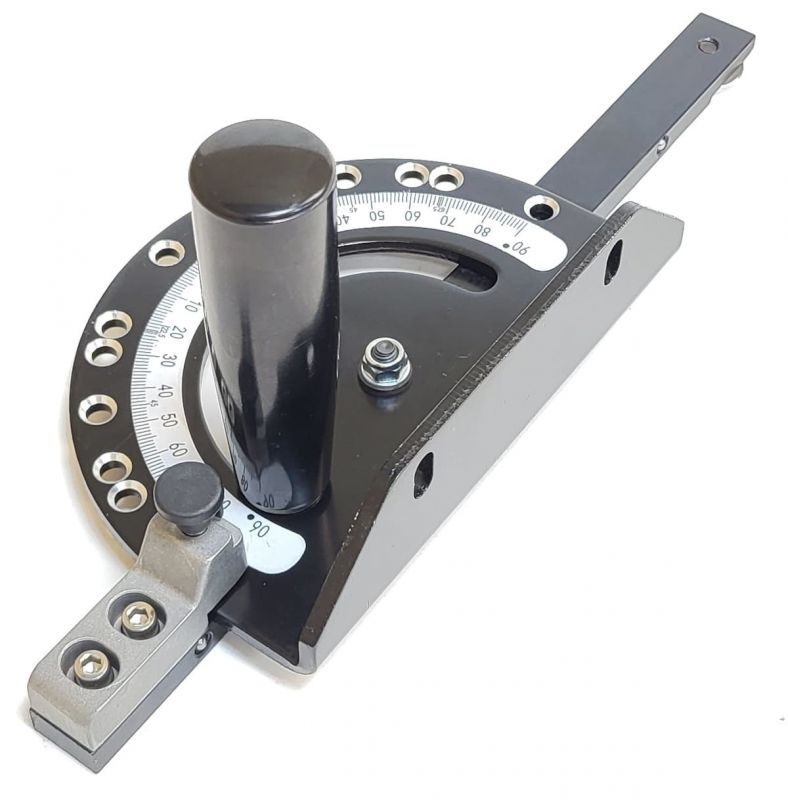

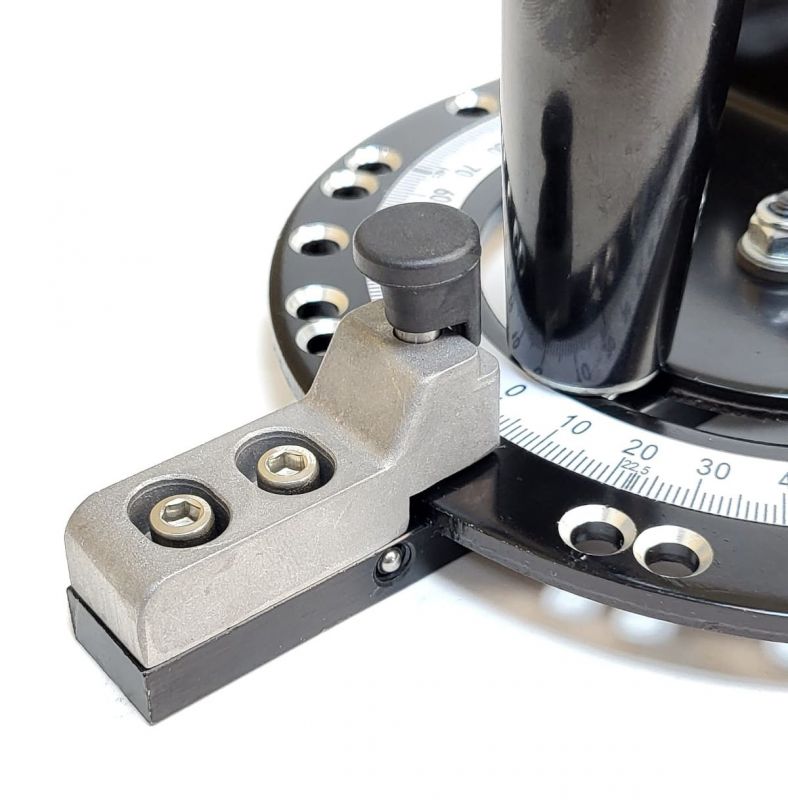

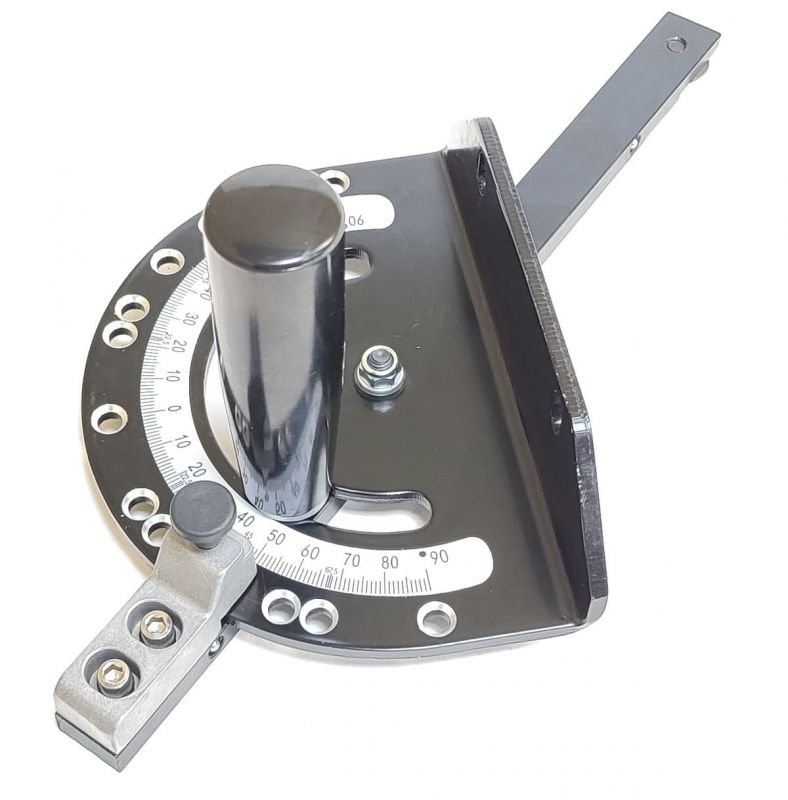

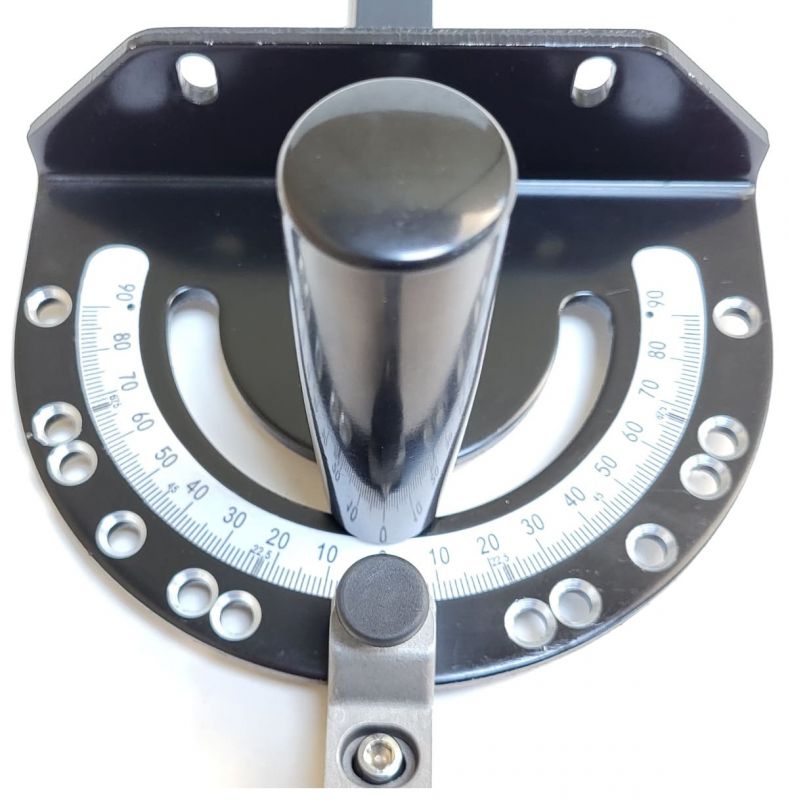

- It has an incredible 180 degree rotation with preset stops at the most commonly used angles of 0, 22.5, 30, 45, 60, 67.5 and 90 degrees each way. The quadrant is made from 5mm thick aluminium. when adjusting the angle of the fence, a spring loaded plunger automatically locks into the preset angles. The plunger can be locked out so that any other angle within the 180 degree range can be set.
Strengths and benefits
- Make A Perfect Crosscut or Mitre Cut Every Time

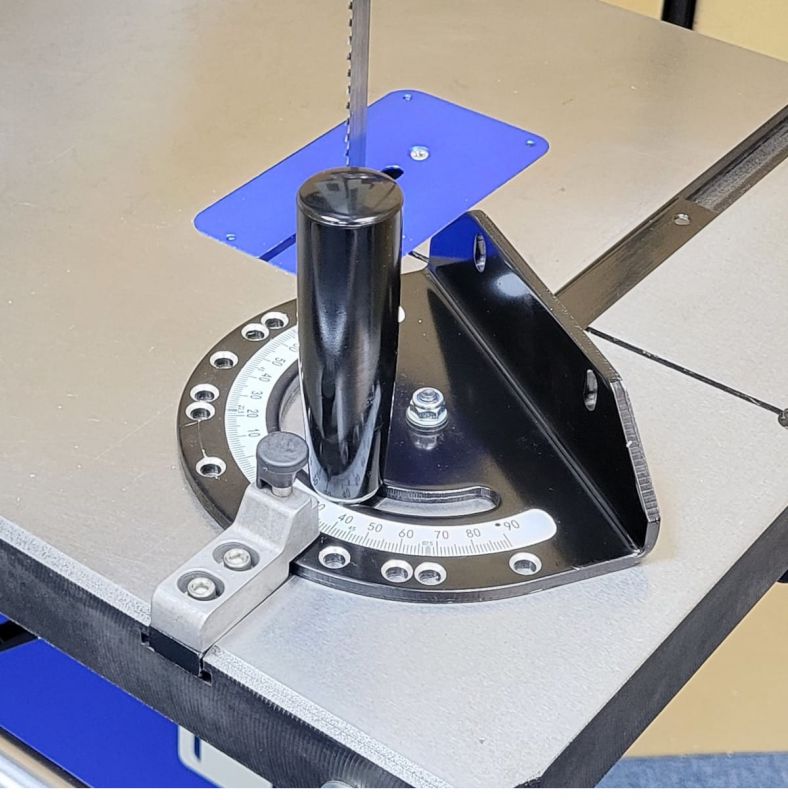

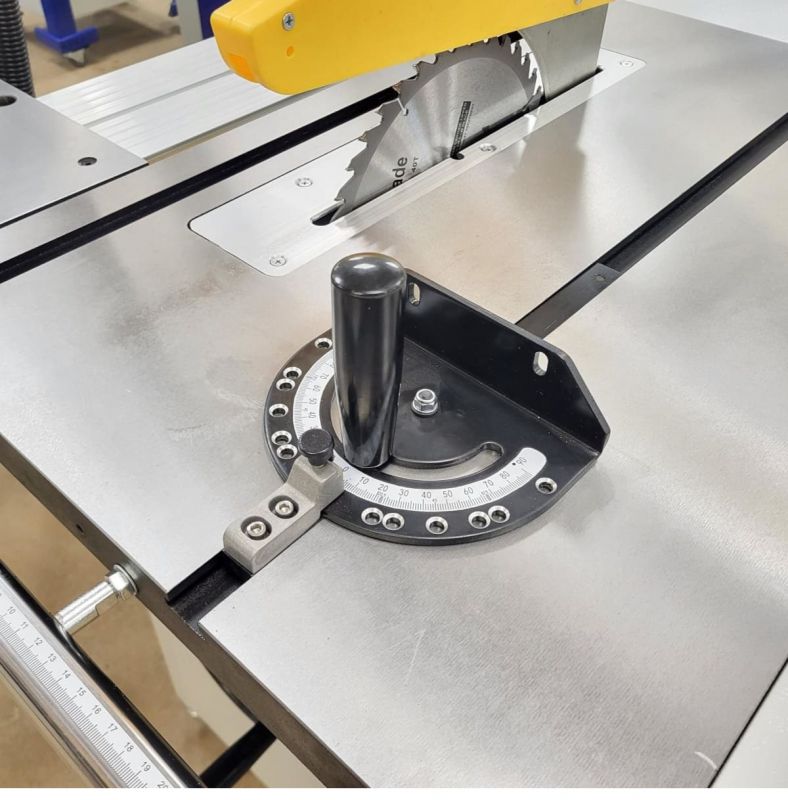

- Can Be Used To Upgrade Tables Saws, Bandsaws And Router Tables
- Fits all 19/25mm x 9.5mm (3/4″/1″ x 3/8″) Table Slots
- Can Be Used With Plain Or T-slots
- Three Adjustable Ball Bearings To Remove Any Excess Play
- Quadrant Is Made From 5mm Thick Aluminium
- Rotates A Full 180 Degrees
- 13 Preset Stops With Plunge Lock
- Mounting Holes To Add A Sacrificial Fence
Suitable for use with
- Charnwood C14BX Bandsaw
- Charnwood C18BX Bandsaw
- Charnwood W619 Table Saw (Model 2026 Onwards)
- Charnwood W629 Table Saw (Model 2026 Onwards)
- Charnwood W650 Table Saw (Model 2026 Onwards)
- Laguna 14/12 Bandsaw
- Laguna 14BX Bandsaw
- Laguna 18BX Bandsaw
- Harvey HW615E Bandsaw
- Harvey RT-800 Router Table
- Harvey HW110SE Table Saw
- and many others …
Specification
- Length Of Guide: 290mm
- Width Of Guide: 19mm (3/4")
- Depth Of Guide: 9.5mm (3/8")
- Range Of Adjustment: 180 degrees
- Preset Stops: 0, 22.5, 30, 45, 60, 67.5 and 90 degrees
- Fence Size: 150mm x 45mm
- Mounting Hole Centres: 75mm
