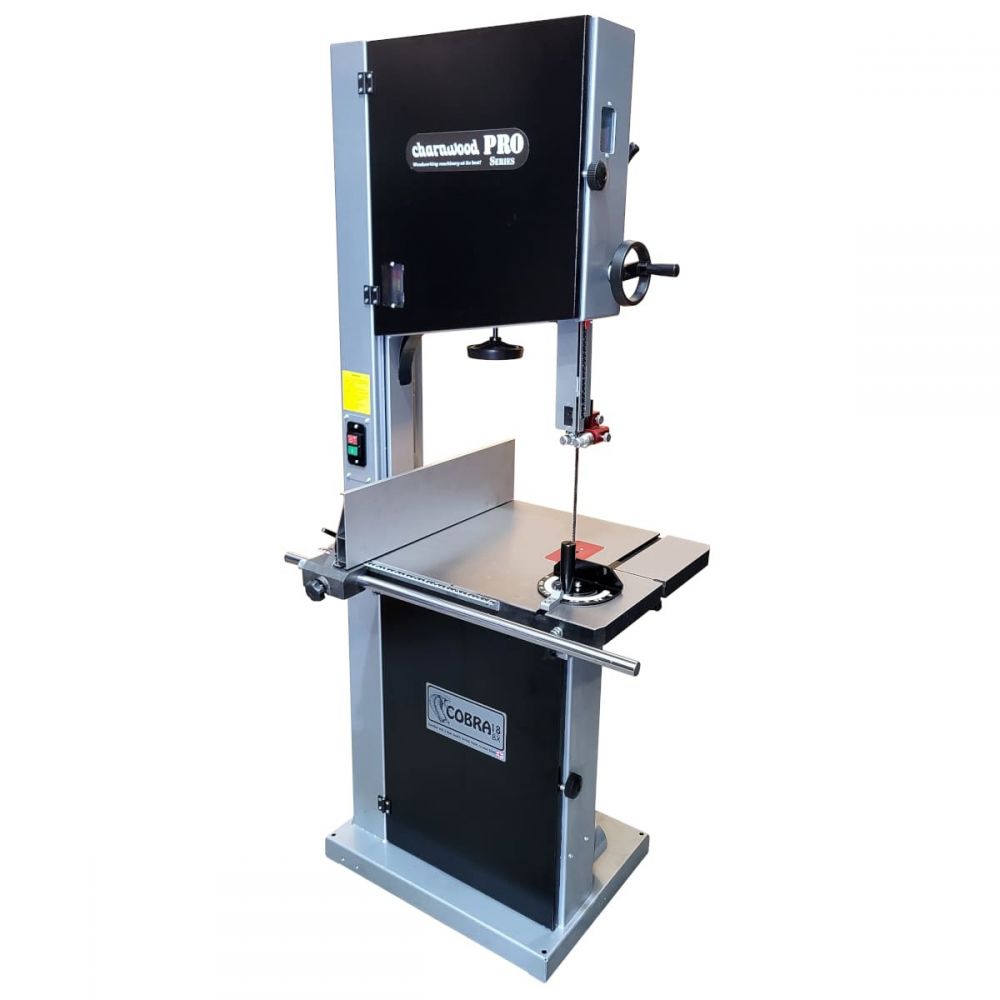

Charnwood Pro C18BX 18" Throat Bandsaw With 16" Cutting Depth – 3000w

Charnwood Pro Series

C18BX 18" Throat Bandsaw With 16" Cutting Depth – 3000w

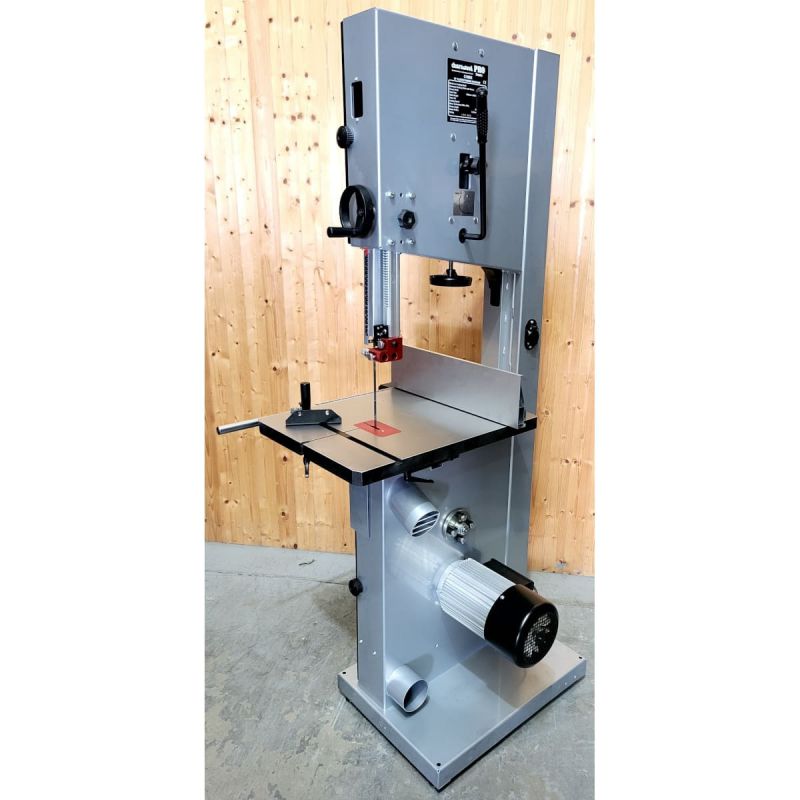

Part of our Pro Series, this trade rated bandsaw has a solid one piece frame constructed using a heavy gauge steel. Powered by a 3kw induction motor and able to make re-saw cuts of up to 400mm deep. Twin extraction ports keep the inside of the cabinet free of dust.

• 400mm (16″) Cutting Depth Capacity
• 460mm (18″) Cutting Width (Throat)
• Accepts 3mm to 27mm Blades
• Grooved Rear Bearing For Scroll Cuts
• Blade Guide System With Tool Free Adjustment
• 5 Sealed Bearings Above and Below
• Supplied with High Quality British Made Blade
• Precision Ground Cast Iron Work Table
• Crosscutting Mitre Guide Included
• Quiet Induction Motor With Internal Brake
• 2 x 100mm (4″) Dust Collection Ports
• Requires a 16amp Electric Supply
• 5 Year Warranty

• The Cobra bandsaw is modelled on the Laguna 18/BX, but specifically designed for the UK market.

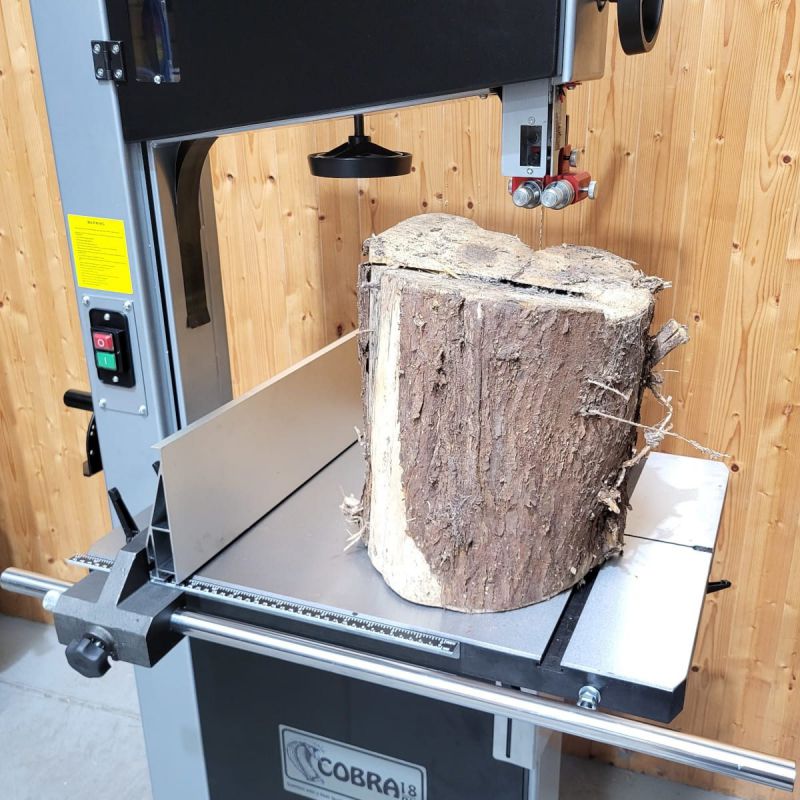

• It has a one piece frame construction to minimise distortion when the blade is fully tensioned. The mighty 3000w induction motor provides the power to use the full 16” cutting depth. An internal brake quickly brings the blade to rest when the stop button is pressed.

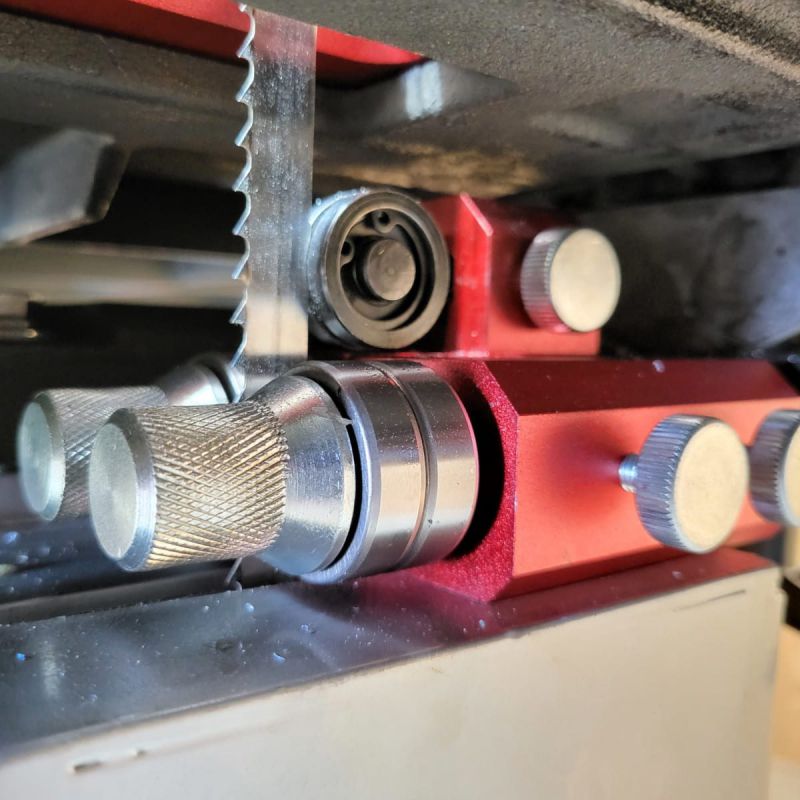

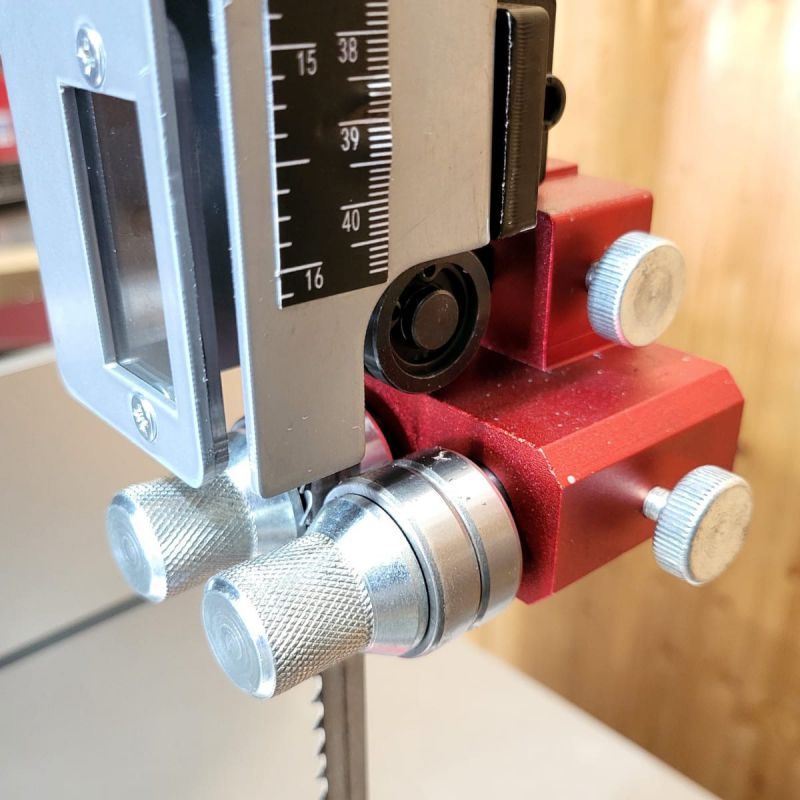

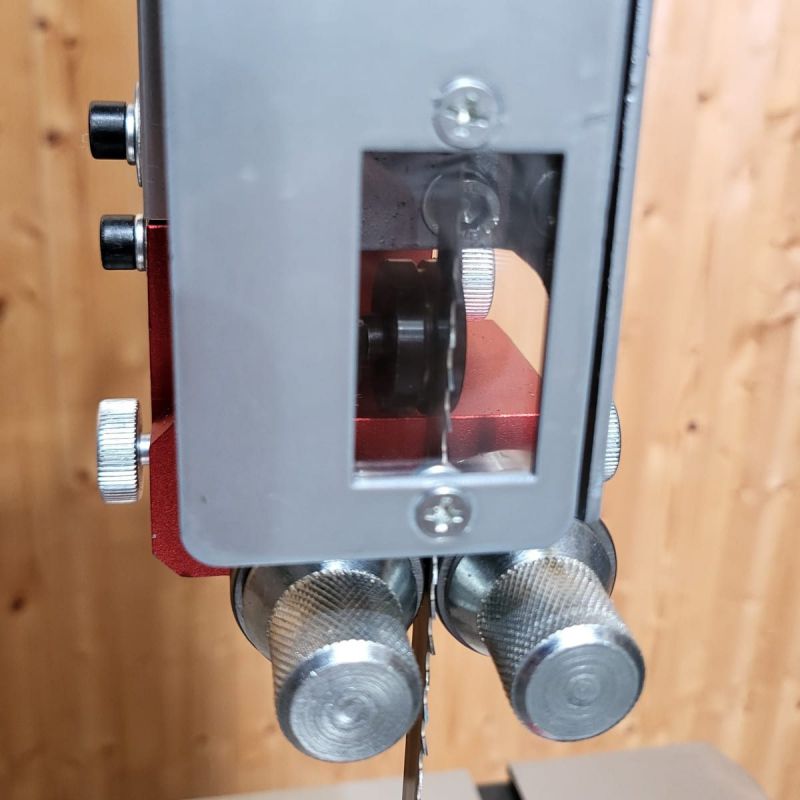

• The blade guide system has 5 sealed bearings at the top and 5 underneath the table. Each side of the blade there are 2 bearings allowing for greater support when using wider blades. The rear bearing has a groove in the centre which allows a 3mm blade to be used for Scroll work. All of the bearings have tool free adjustment making the Cobra bandsaw one of the easiest bandsaws on the market to set up.

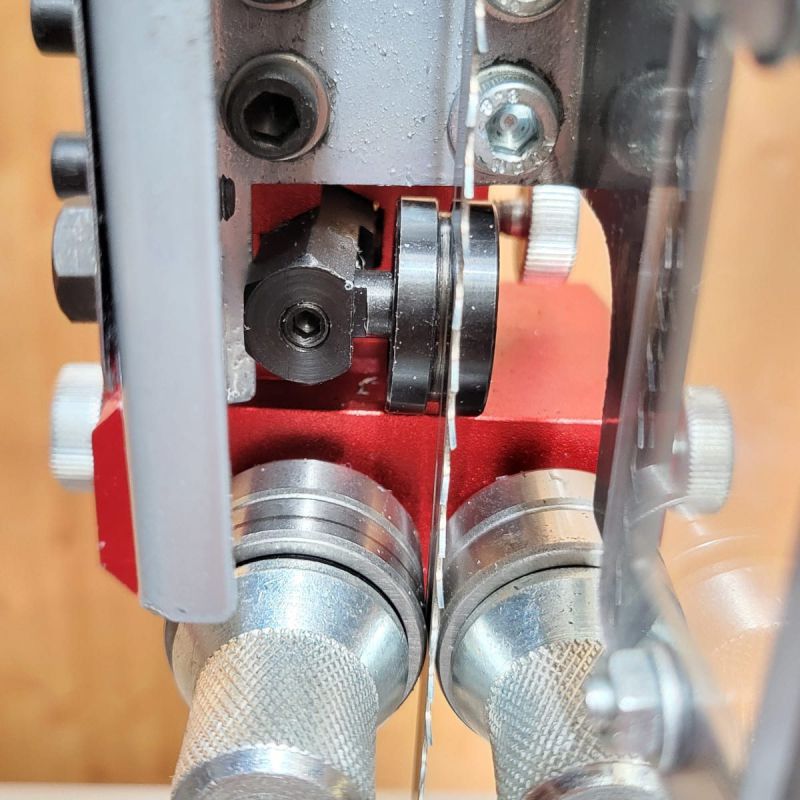

• No extra guides are needed for scroll work on the Cobra as the rear bearings have a groove in the centre which can be adjusted from side to side to make sure the blade runs directly in the centre. The groove offers support for a 3mm blade allowing you to achieve scroll work in much deeper pieces of timber than is possible with a standard scrollsaw. Ideal for intricate box projects, toys, crafts, puzzles and much more.

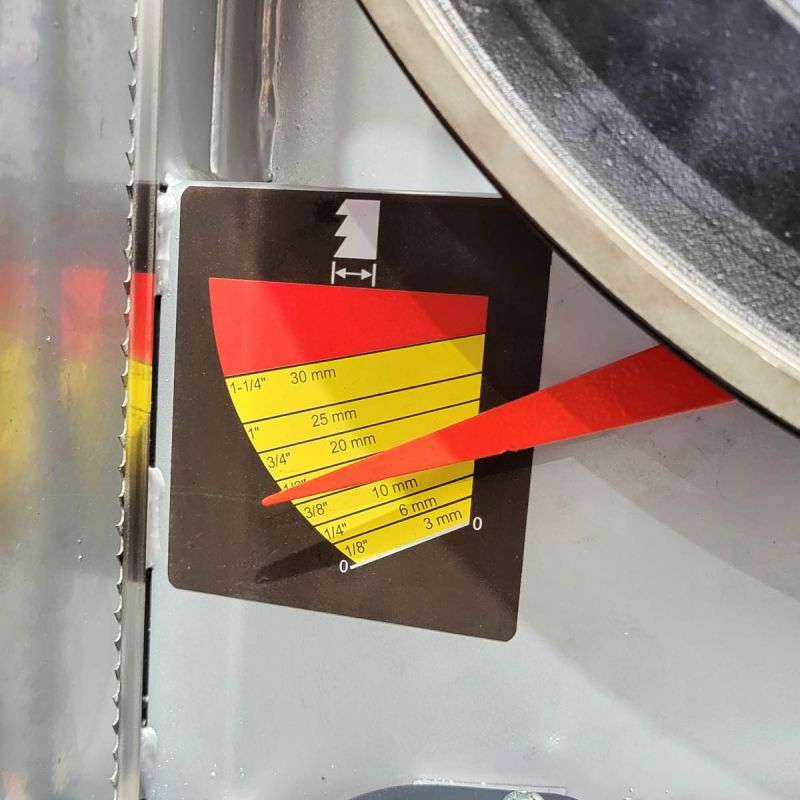

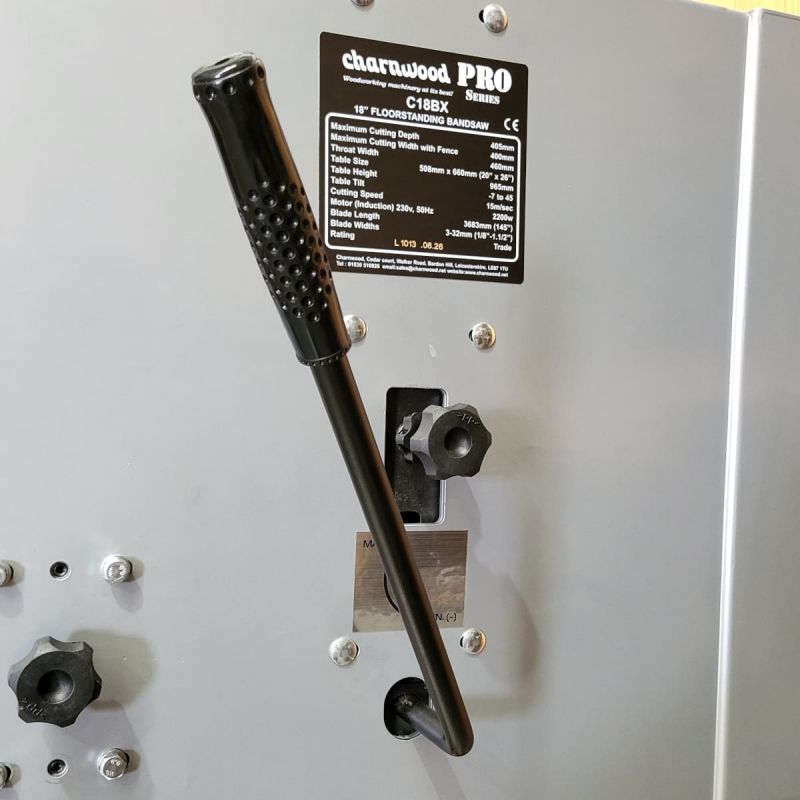

• There is a quick release blade tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to ensure correct tension set up.

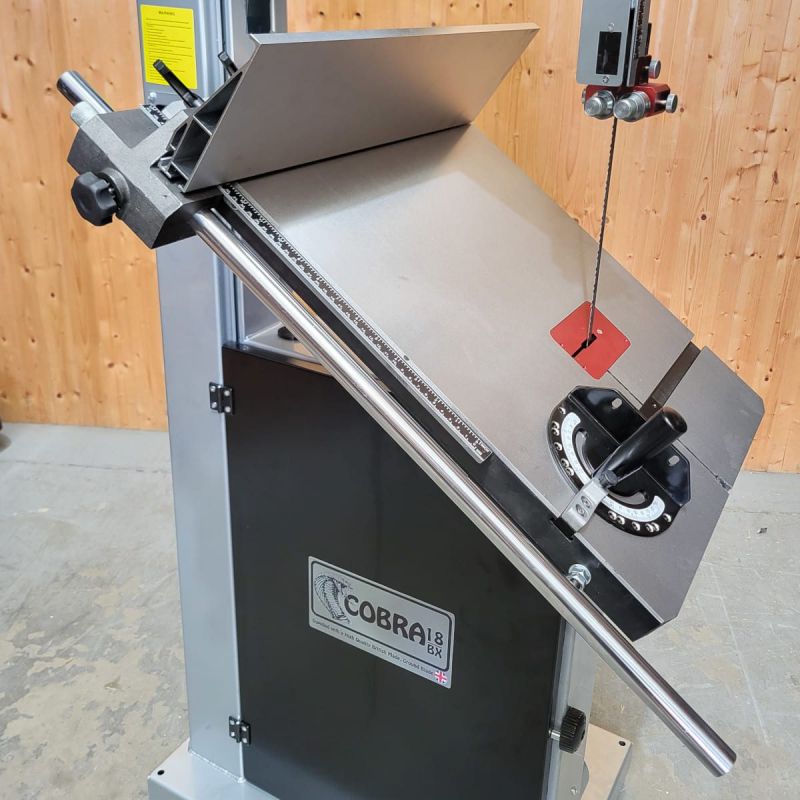

• The precision ground cast iron table is mounted onto an over sized double cast iron trunnion with two locking points that ensure there is a solid surface to work from. The table tilts to 45° with a positive stop at 90°. A flip plate allows reverse tilt up to 7° when required. In the centre of the table is an aluminium throat plate with 4 adjusting screws to ensure a perfect flush fit.

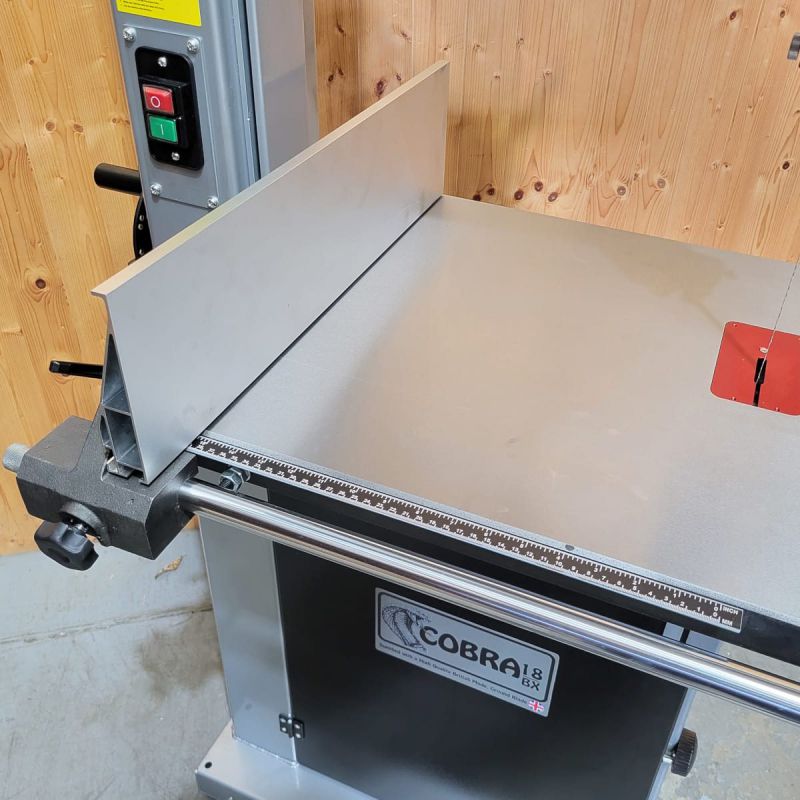

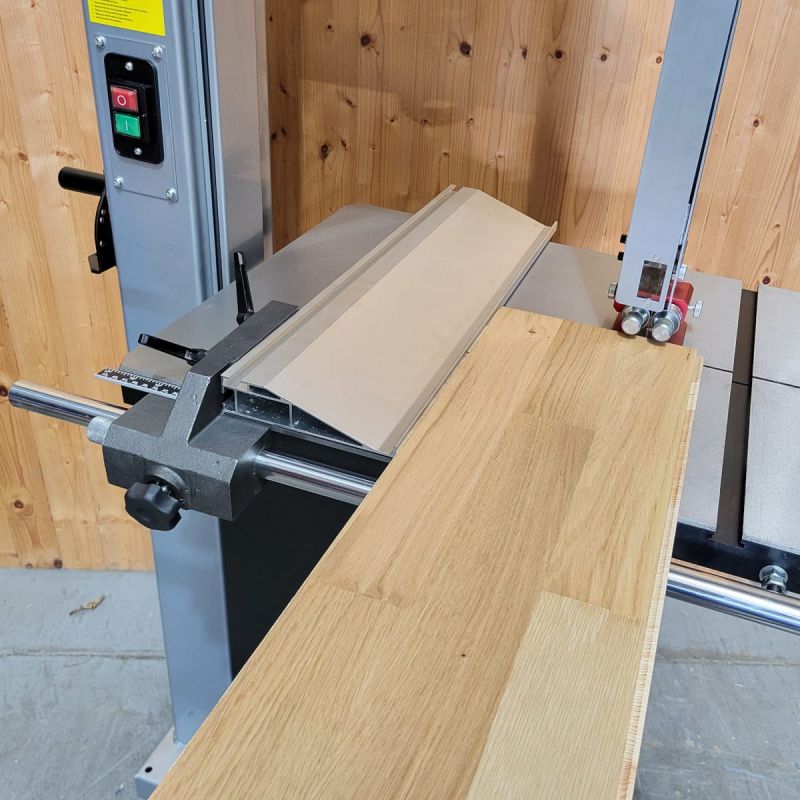

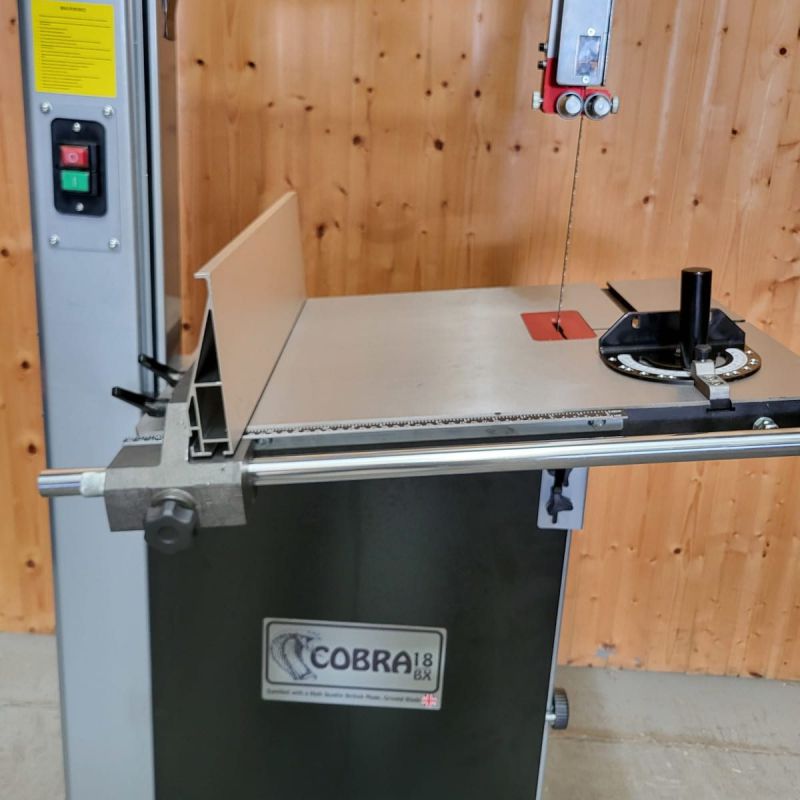

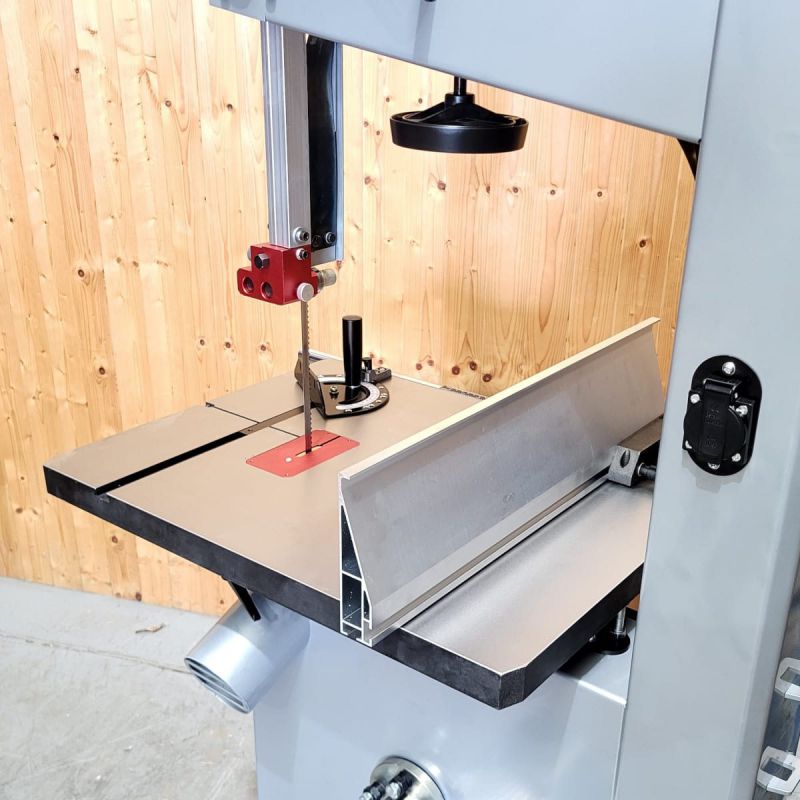

• The parallel fence runs smoothly along a polished solid steel bar. Minor adjustments can be made to the position of the rip fence by rotating the micro adjustment screw, then locking the fence. The locking screw gives a positive lock which will not let you down and creep during repeat work. The measuring scale is marked in both Inches and Millimetres. The rigid aluminium high/low fence can be installed in 2 ways to ensure full and precise timber support for both large and small work pieces.

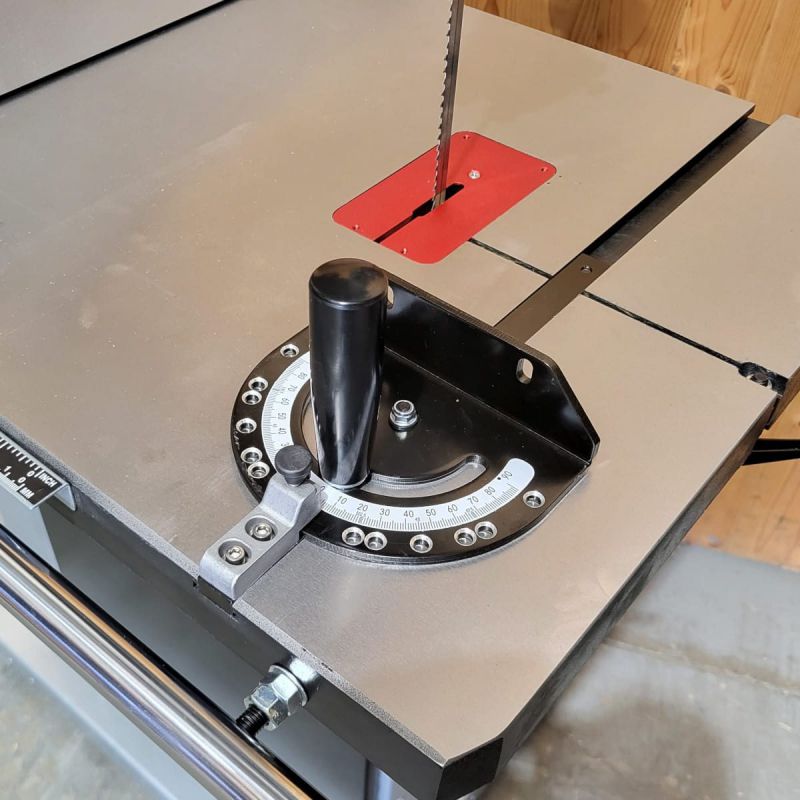

• For crosscutting operations a sliding mitre guide is included. It has an incredible 180 degree rotation with pre-sets stops at 0, 22.5, 30, 45, 60, 67.5 and 90 degrees each way. The pre-sets plunger can be bypassed for dialling in any other angle.

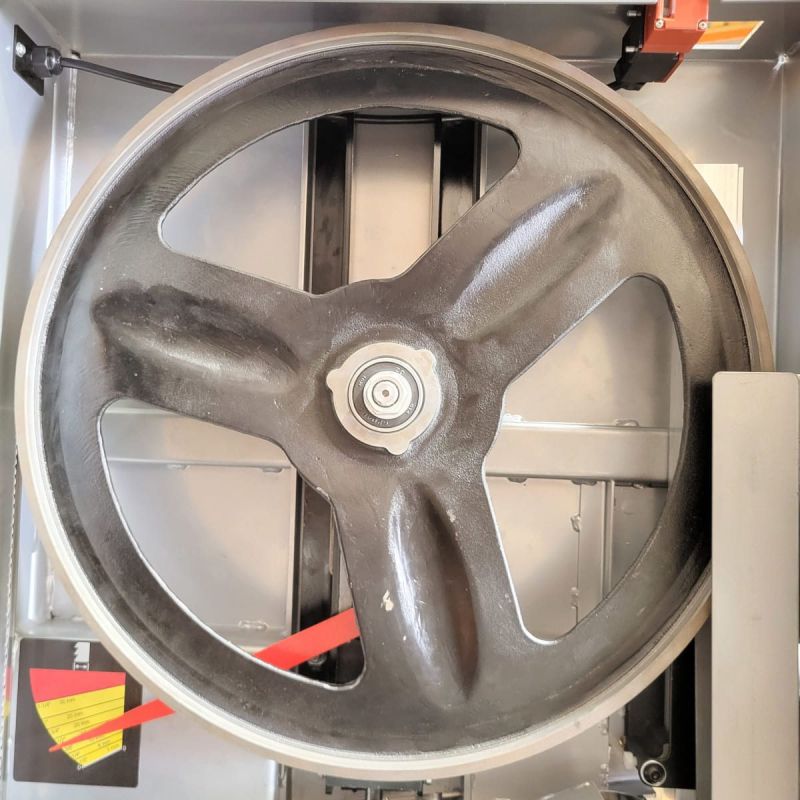

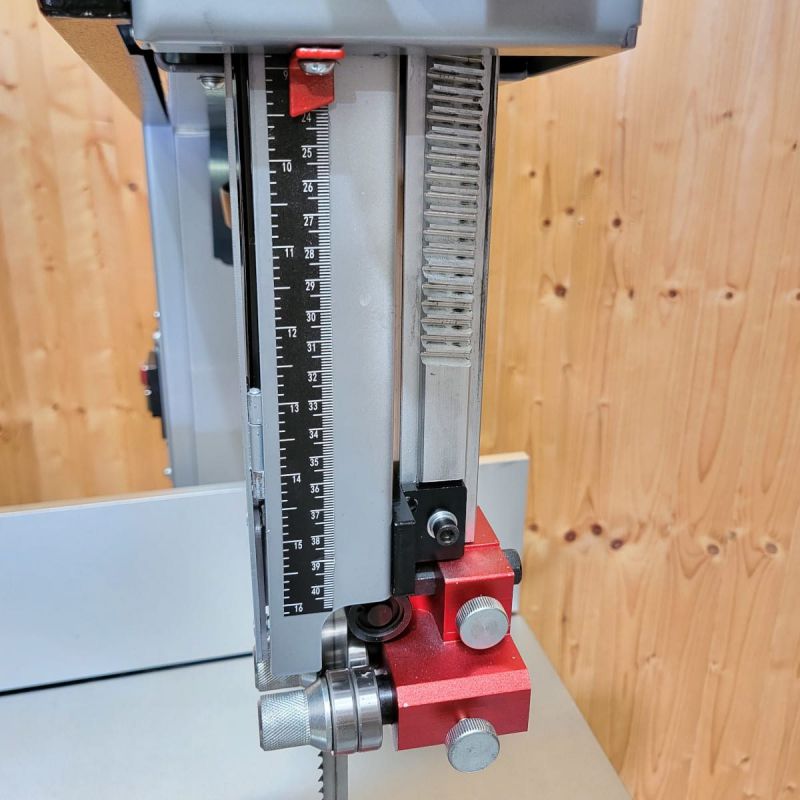

• Solid cast iron wheels are electronically / dynamically balanced & fitted with rubber one-piece tyres. The worm gear & pinion on the blade guard is ultra-smooth and engineered to have minimum flex even when fully extended.
• When additional light is required on the job, the C18BX has a built-in power socket which can be used to power our optional ML28 LED light. The light has a magnetic base and can be fitted in several different positions with the flexible shaft delivering light to where you need it.
• Efficient dust extraction is achieved through 2 x 100mm (4″) diameter outlets, one located just underneath the table and one at the base. A deflector sends the dust into the upper collection port before it comes into contact with the lower wheel and other moving parts – extending their lifespan.

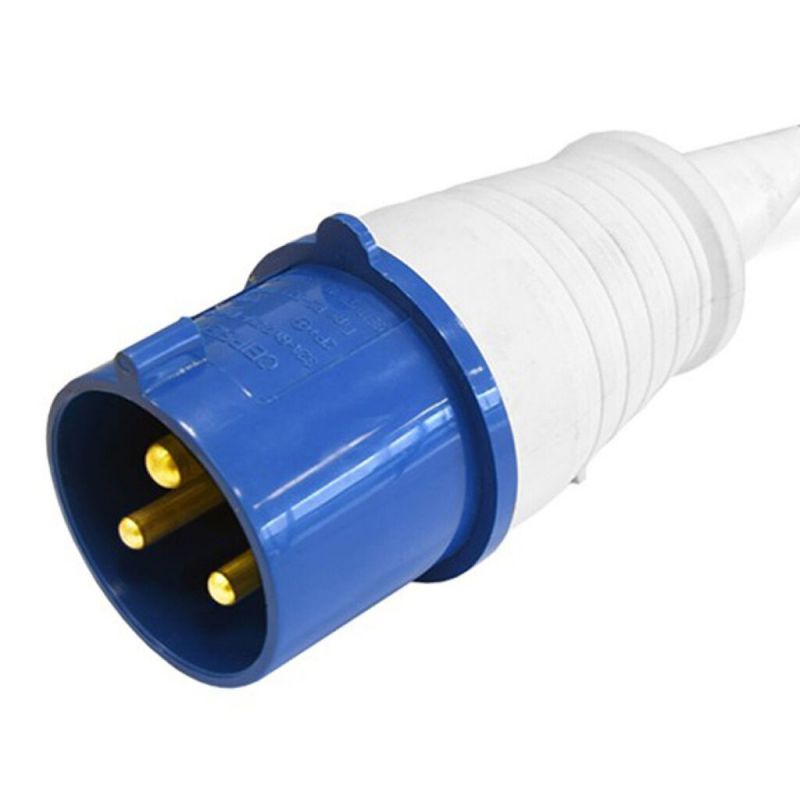

• Supplied with British made 13mm blade, push stick, mitre guide, 1.9m cable with industrial 16 amp plug.

• Maximum Cutting Depth: 400mm (16")
• Throat Width: 460mm (18")
• Max. Cutting Width Using Fence: 400mm (16")
• Table Size (Cast Iron): 500mm x 660mm
• Table Height: 965mm
• Table tilt: -7 degrees to +45 degrees
• Mitre Guide T-Slot: 19mm to 25mm (3/4" to 1")
• Fence Height ( Hi / Lo ): 155mm / 12mm ( 6" / 1/2" )
• Motor Input Power: 3000w (4hp) / 240v / 50hz
• Motor Output Power: 2200w (3hp) / 240v / 50hz
• Recommended Breaker Size: 16 Amp (Type C)
• Blade length: 3673mm (144.6")
• Blade widths: 3mm (1/8") to 27mm (1")
• Blade Speed: 865 m/min
• Blade Guide (Above and Below Table): 5 Sealed Bearings
• Dust Collection Outlet (x2): 100mm (4")
• Min Extraction Airflow Required: 1200m3/hour
• Assembled Dimensions (WxDxH): 1040mm x 830mm x 2060mm
• Shipping Dimensions (WxDxH): 2040mm x 670mm x 770mm
• Weight: 214kg
• Assembly Time Required: 30 Minutes (Needs 2 people)
• Rating: Trade
• Product Guarantee: 5 Years

Charnwood C18BX Owners Manual

Charnwood Machinery Five Year Guarantee

If you’re unsure which bandsaw is right for you, visit our Knowledge Centre for a helpful guide to choosing woodworking bandsaws and blades.
