Charnwood PT12S 12" Planer Thicknesser with Spiral Cutter Block - NEW Model

Charnwood 12" Planer Thicknesser with Spiral Cutter Block

ref: PT12S

• A combination planer thicknesser with fast changes between functions, a spiral cutter block with TC spur cutters for a smoother finish and noticeably reduced noise levels.

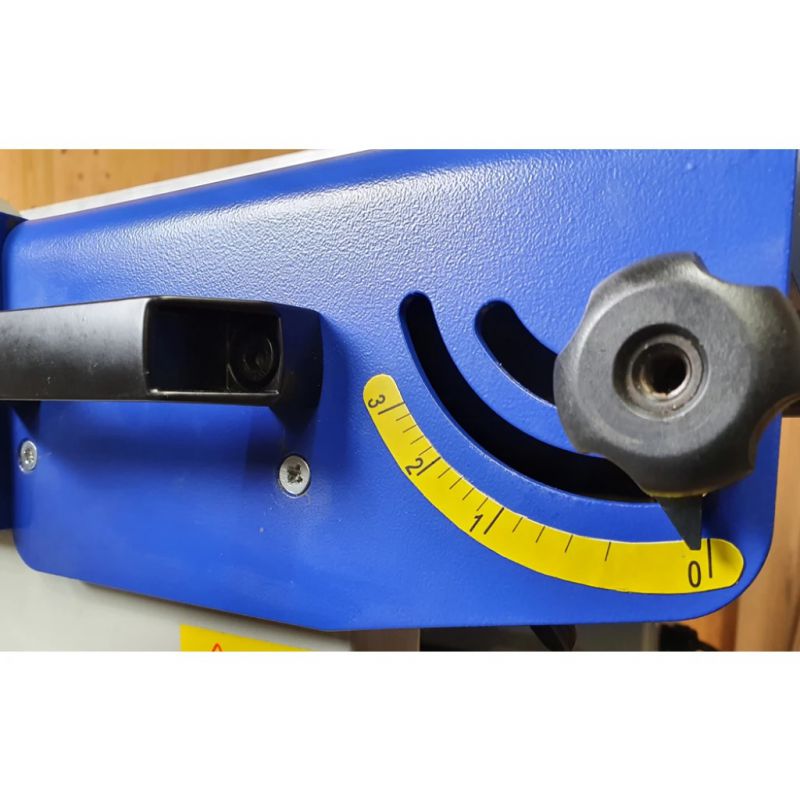

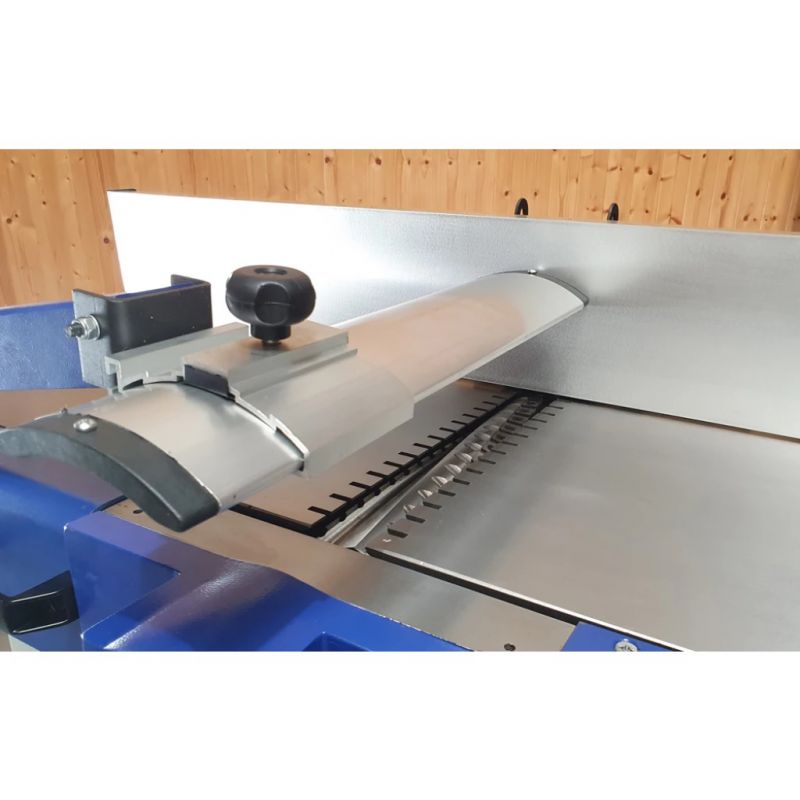

• The large cast iron infeed bed is quick to adjust and lock in place, with a clear setting scale. The bridge guard has simple controls to set the height over the cutters and the gap the the side fence. The side fence can be positioned anywhere across the cutter block, useful for getting even wear on the cutters when working mainly with narrower materials. The fence can also be tilted back to 45 degrees.

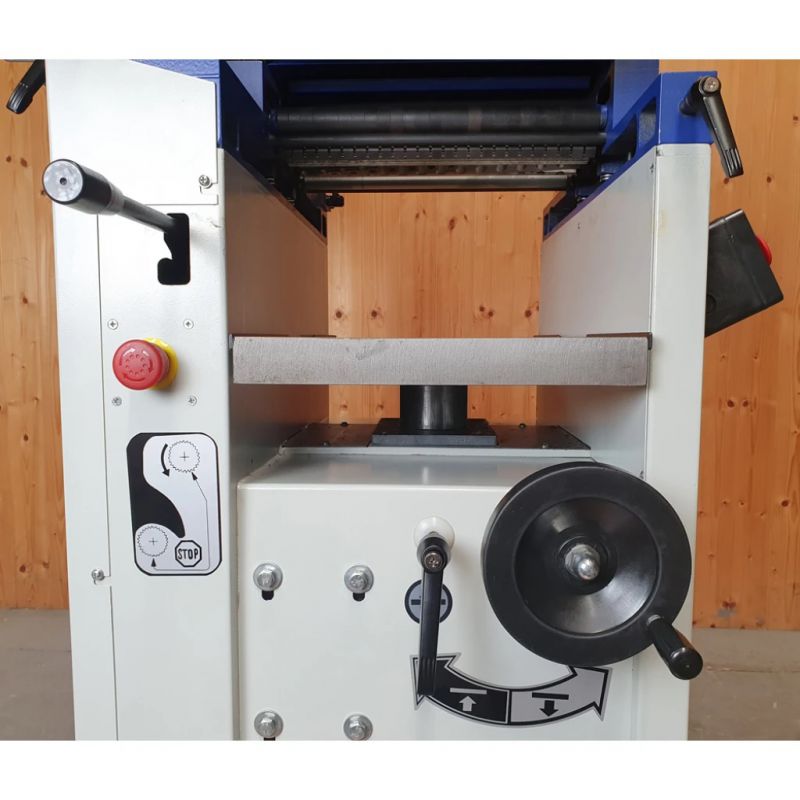

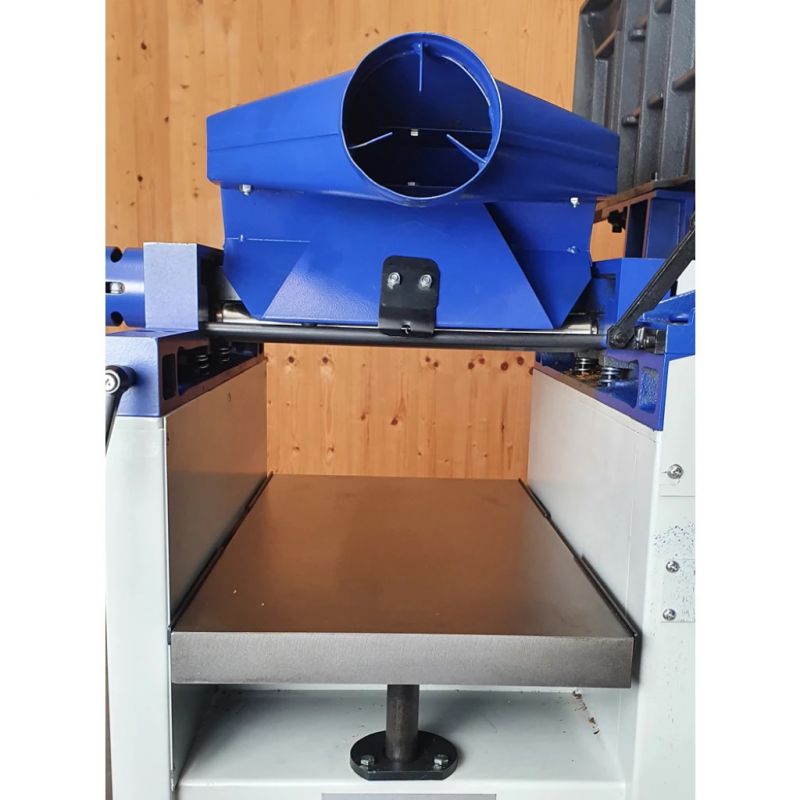

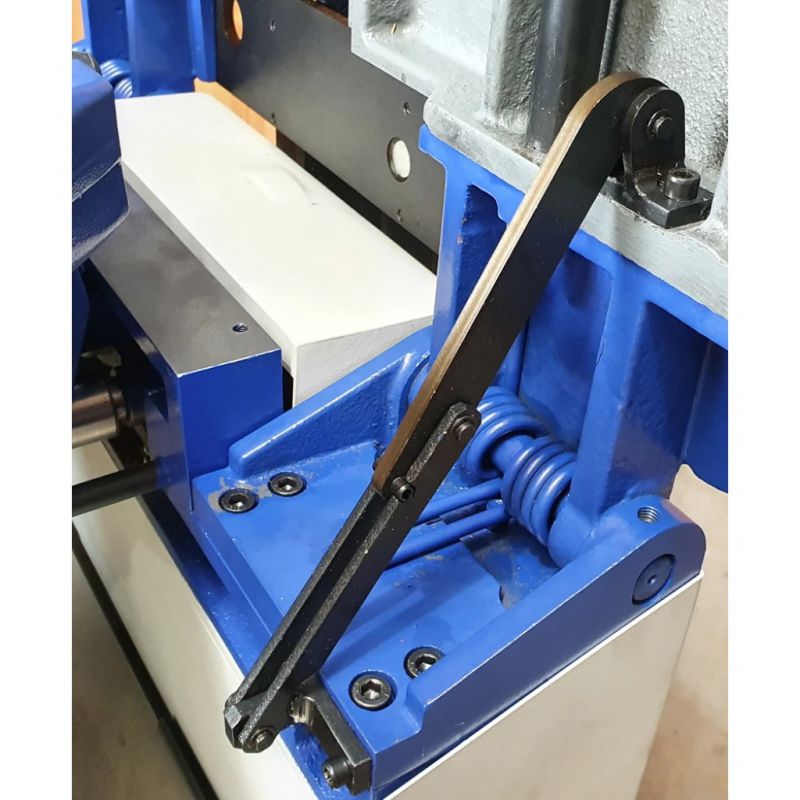

• One of the main design improvements on this model, over previous versions, is the quick and easy method to change over from planing to thicknessing.  No need to remove the side fence, just 2 locks to undo and then both beds lift in a parallel motion and lock out when fully raised. Next the dust collection hood swings up and over, latches into place, and you are ready to go.

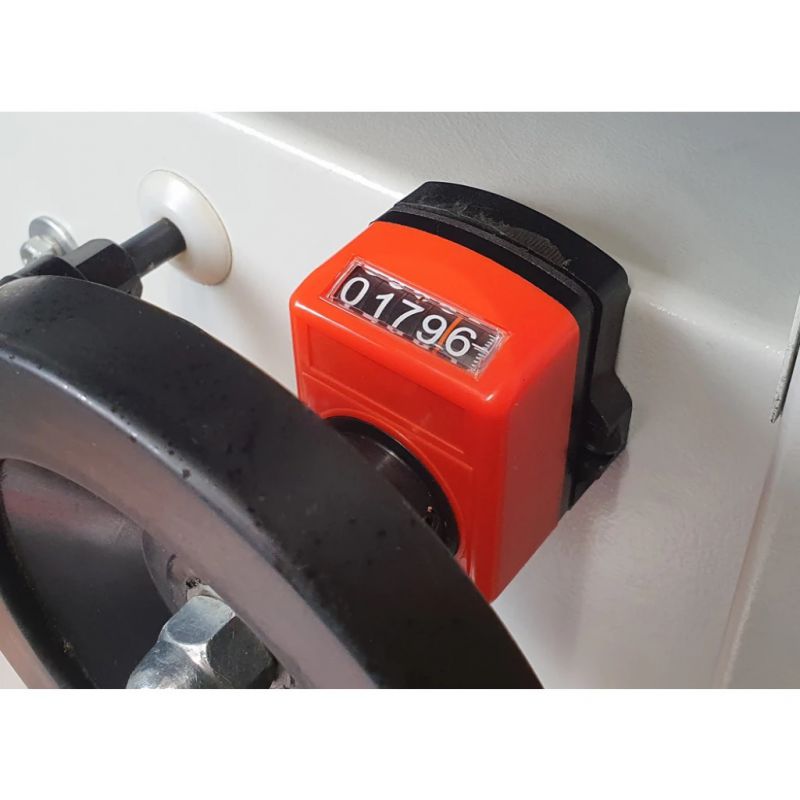

• Setting the thicknessing depth is done by rotating the cast iron handwheel (1 rotation = 2mm) and reading from the mechanical digital display, accurate to 1/10th of a millimetre. A position lock is fitted which prevents any movement.
• The drive rollers can be disengaged when planing to save wear and tear on the mechanism.

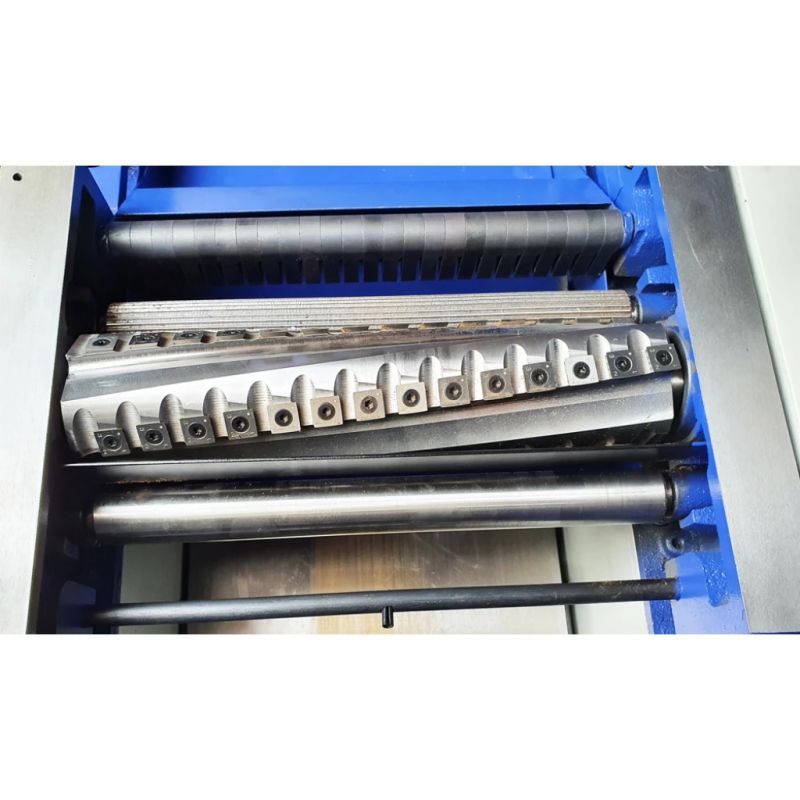

• At the heart of the machine is a spiral cutter block with 4 rows of spur cutters, arranged so that they cut in a shearing action, rather than straight. This type of cutter block is more expensive than a conventional set up but does offer several advantages. The more use the machine gets – the more these advantages pay off.

Advantages of spiral cutters over conventional knives:

• Shearing Cut = Better finish. Expect a smoother finish in softwood, hardwood and difficult grain.
• Low Sound Levels = Less noise by up to 50%. Each blade is moving less air and taking a smaller cut.
• More Knives = Reduced energy consumption. Each cut uses less energy, overall saving can be 30%.

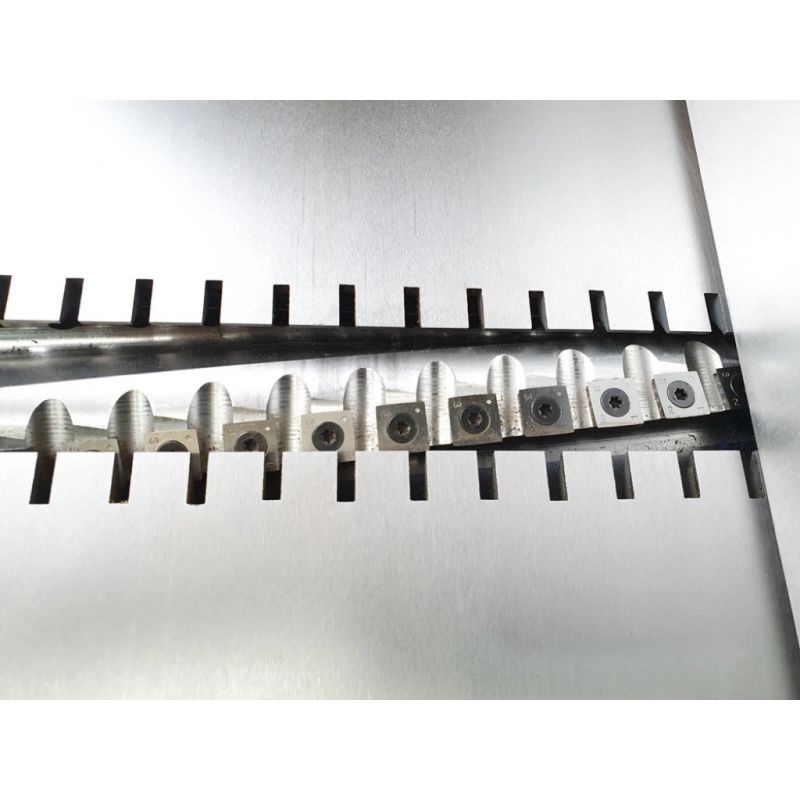

• TC (Tungsten carbide) Cutters = longer cutter life, up to 10 times compared to HSS. Each cutter can be rotated when worn.
• Less Maintenance = Quick and easy to change out 1 or 2 cutters after a chip.
• Supplied with 5 spare TC cutters, 100mm diameter dust extraction outlet, 4 adjustable feet, push pad, service tools, 1.7m power cable and 16amp industrial blue plug.

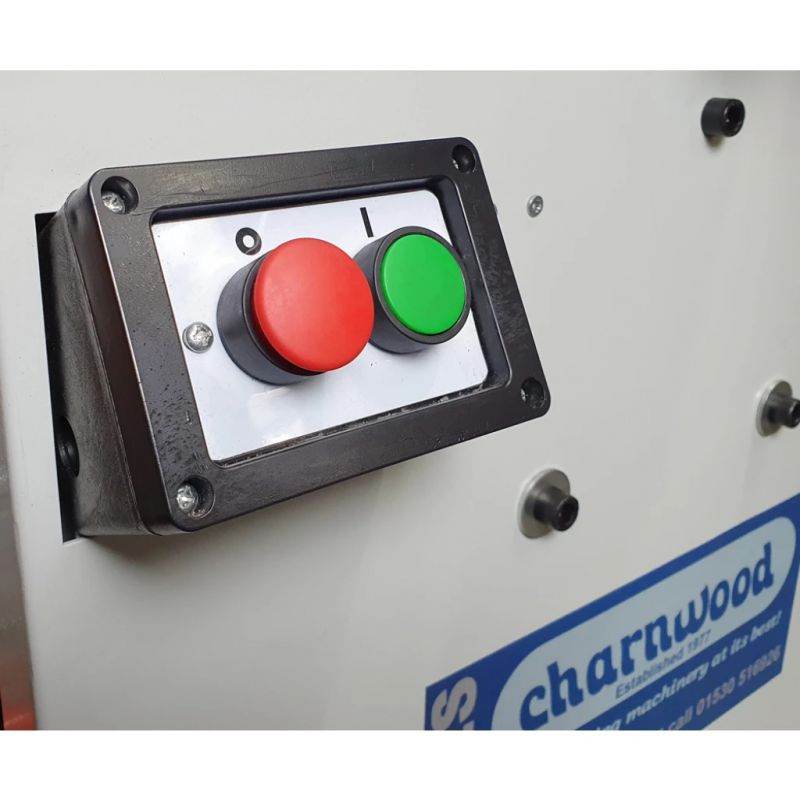

• This machine requires a 16amp supply and it is recommended that a C Type breaker is used.

• Low Noise Operation – Spiral Cutter Block
• High Quality Surface Finish – 56 Tungsten Carbide Cutters
• Trade Rated Machine – Cast Iron Tables
• Fast Function Change Over – Parallel Table Lift
• 12″ Planing Capacity – Ample 4hp Motor
• 12″ x 9″ Thicknessing Capacity – With Powered Feed rollers
• High Thickness Accuracy – Mechanical Digital Display

• Surfacing Width: 310mm (12”)
• Length of Surfacing Tables: 1400mm
• Maximum Depth of Cut – Planer: 3.0mm
• Fence Size: 150mm x 1100mm
• Fence Tilt: 90-45 Degrees
• Table Height: 850mm
• Cutter Block Speed: 4,500rpm
• Cutter Block Diameter: 75mm
• Cutter Block Type: Spiral (4 rows)
• Number of Cutters: 56 (4 x 14) TC
• Cutter Size: 15mm x 15mm x 2.5mm, R=150
• Thicknessing Capacity: 5mm – 230mm
• Length of Thicknessing Table: 600mm
• Maximum Depth of Cut – Thicknesser: 4.0mm
• Feed Speed: 6.0 m/min
• Motor ( Induction): 3000w (4hp) / 240v, 50Hz
• Recommended Breaker Size (MCB): 16 Amps (Type C)
• Dust Extraction Outlet: 100mm

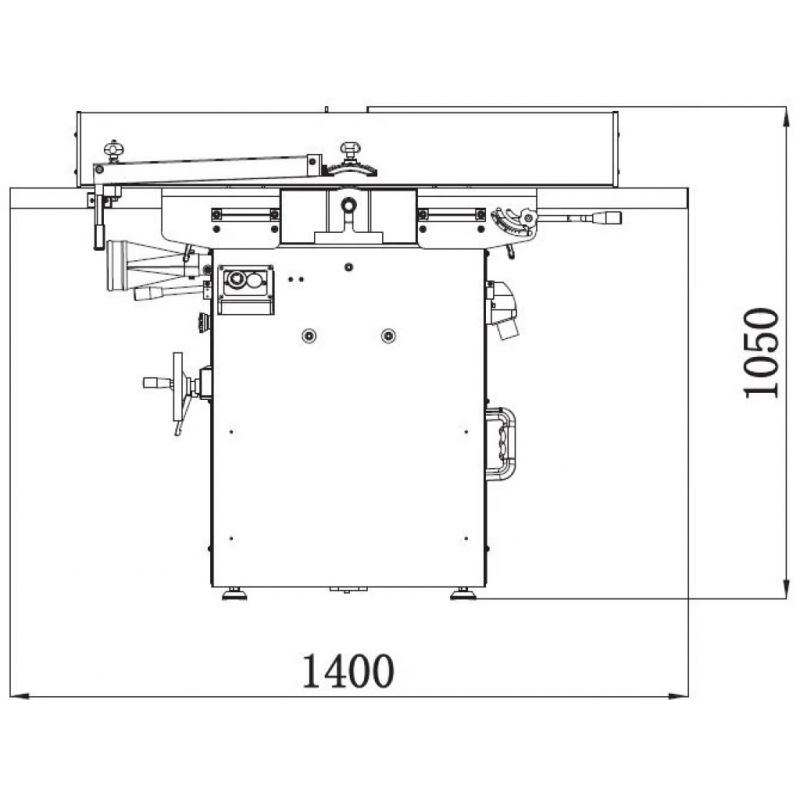

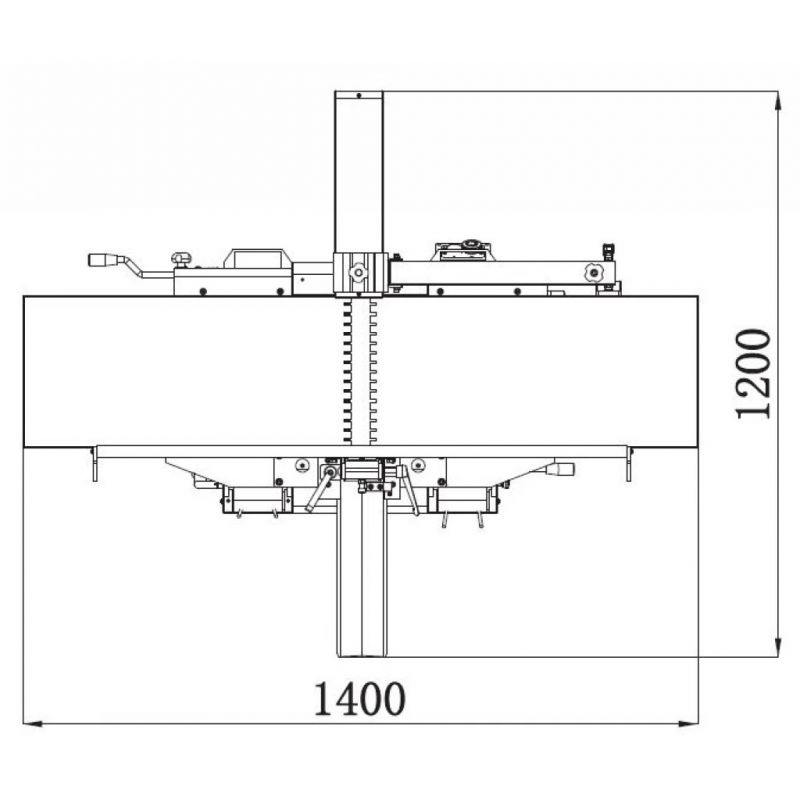

• Assembled Dimensions (WxDxH): 1400 x 1200 x 1010mm
• Shipping Dimensions (WxDxH): 1450 x 640 x 950mm
• Weight (Net / Gross): 208kg / 244kg
• Assembly Time Required: 45 Minutes (Needs 2 People)
• Rating: Trade
• Product Guarantee: 5 Years

Please note: It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the cutters.

Charnwood Machinery Five Year Guarantee

Charnwood PT10S and PT12S Planer Thicknesser Owners Manual
