CMT XTreme Multi-Rip Saw Blade - 350mm dia x 3.5 kerf x 30 bore Z36 10° ATB

X
Product Code: CMT/278.036.14M
Brand: CMT Orange Tools
Low Stock - Contact Us For Availability
£73.46 Inc. VAT
£61.21 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Check out our Fair Deal on Delivery Promise
CMT Orange Tools

CMT XTreme Multi-Rip Saw Blade - 350mm dia x 3.5 kerf x 30 bore Z36 10° ATB
Ref: 278.036.14M



Key Features

  • Tungsten carbide tipped
  • Grey antikickback
  • Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.



Suitable for use with

  • Squaring machine
  • Multi-rip machine

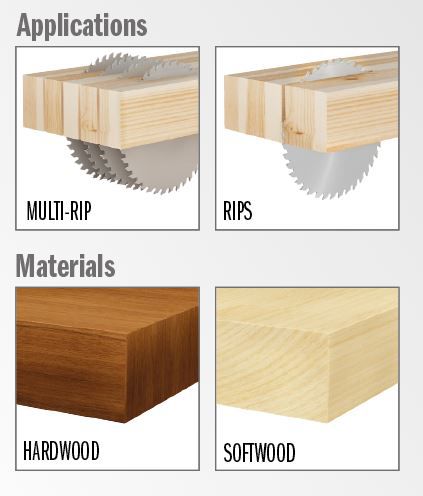

Applications

  • Multi-rips and rips
  • Hardwood
  • Softwood



Technical details

  • Teeth height mm: 10
  • ISO grade: K20
  • Hardness (HV10): 1.640
  • Transverse rupture strength (N/mm2): 2.200

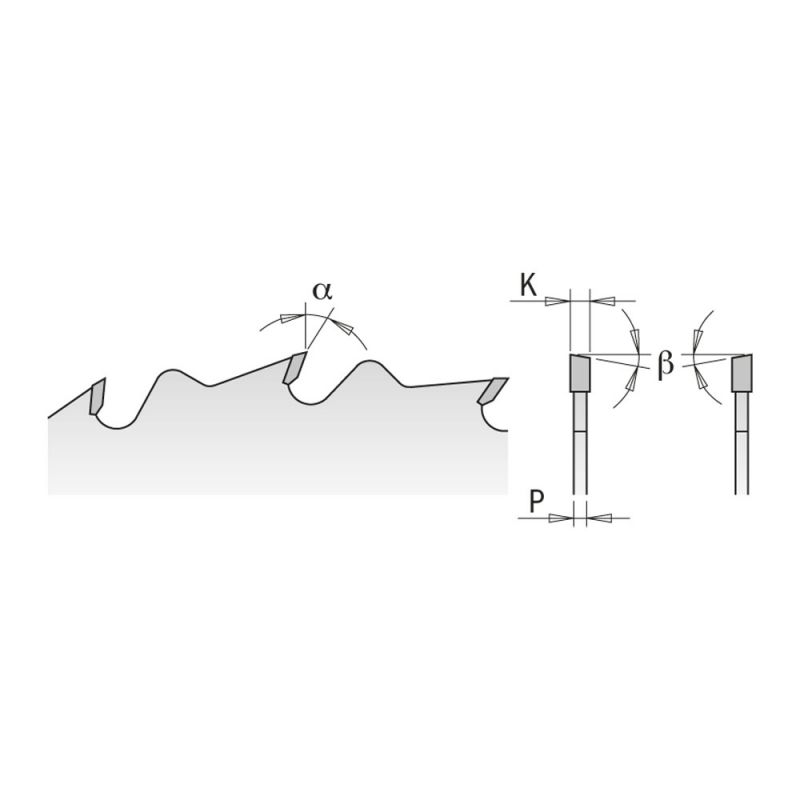

Specification

  • (D) Diameter: 350mm
  • (B) Bore: 30mm
  • Key Way: n/a
  • (FT) Pin hole: COMBI3 (2/7/42 + 2/9/46.4 + 2/10/60)
  • (Z) Number of cutting edges/teeth: 36
  • (K) Kerf thickness: 3.5mm
  • (P) Plate thickness: 2.5mm
  • (α) Hook angle: 18 degrees
  • (β) Type of grind: 10° ATB (alternate top bevel grind)
