CMT The CMT Grand Rabbet Set - 1/2 shank

CMT The CMT grand rabbet set - 1/2" shank
Ref: 835.503.11

“The Grand Rabbet” by CMT is an investment that shows your commitment to quality. This CMT product will deliver years of reliable service under normal use.

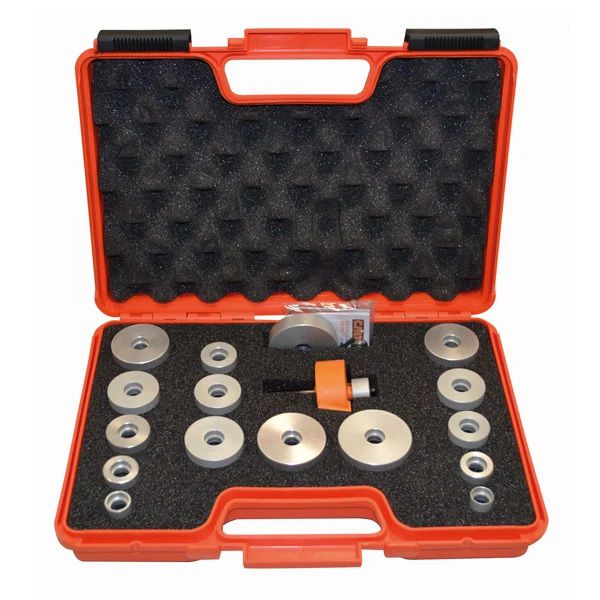

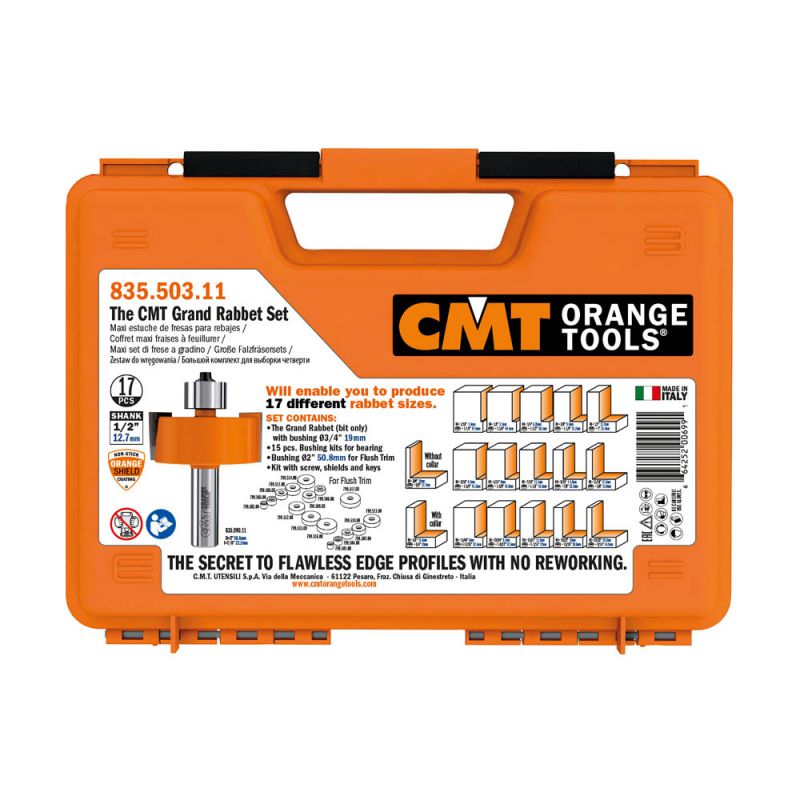

• The ultimate rabbeting sets & the ultimate tool value. These sets include our 835.990.11 bit with 22mm (7/8”) cutting height, plus bearings to cut 17 different rabbets, all in a sturdy molded case. For rabbet sizes over 12,7mm (1/2”) we suggest cutting in several shallow passes to achieve the desired cutting depth.
• Tungsten carbide tipped
• Right-hand rotation
• Anti-kickback
• Tool with bearing
• Not for hand held use for router tables only.

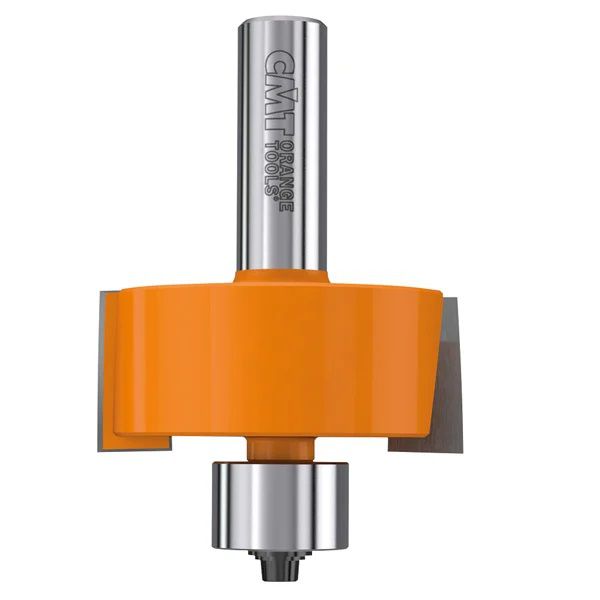

• The grand rabbet (bit only) with bushing 19mm dia

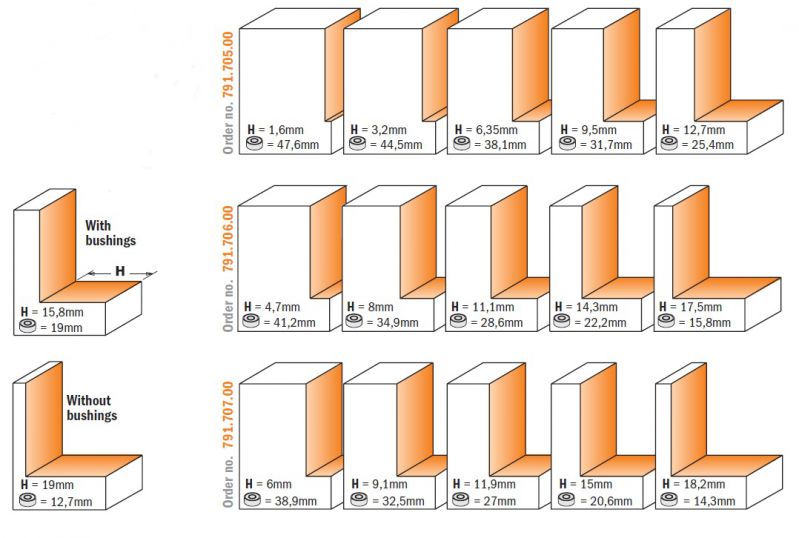

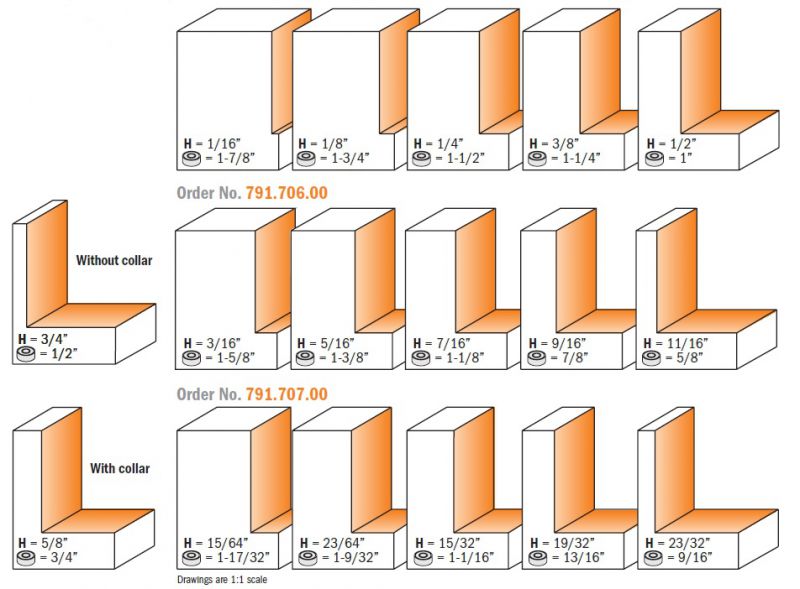

• 5 pc bushing kits for bearing (h = 1.6 - 3.2 - 6.35 - 9.5 - 12.7mm rabbets)
• 5 pc bushing kits for bearing (h = 4.7 - 8 - 11.1 - 14.3 - 17.5mm rabbets)
• 5 pc bushing kits for bearing (h = 6 - 9.1 - 11.9 - 15 - 18.2mm rabbets)
• Bushing 50.8mm dia
• Kit with screw, shields and keys

• S: 12.7 (shank diameter)

CMT Grand Rabbet Set PDF

CMT Grand Rabbet Set Instructions
