CMT Rip / Crosscut General Purpose Saw Blade - 350mm dia x 3.5 kerf x 30 bore Z54 10° ATB
.jpg)
Product Code: CMT/285.654.14M
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£94.63 Inc. VAT
£78.86 Exc. VAT
COLLECTION
DELIVERY
CMT Rip / Crosscut General Purpose Saw Blade - 350mm dia x 3.5 kerf x 30 bore Z54 10° ATB
Ref: 285.654.14M
Key Features
- Tungsten carbide tipped
- Chrome tool

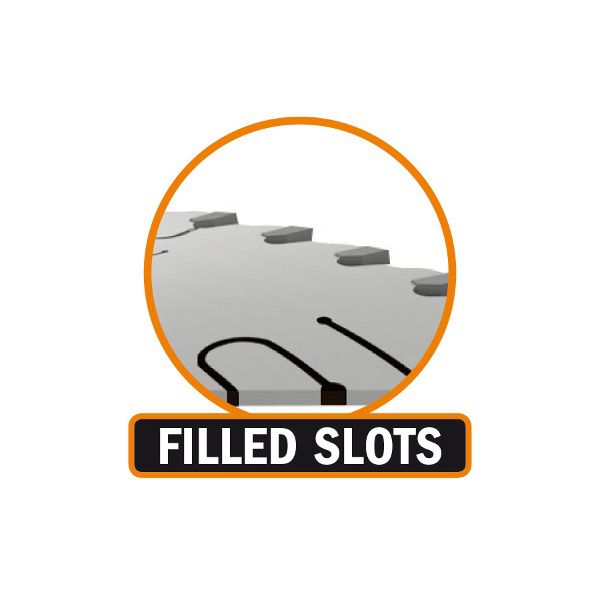

- Saw blade with dampening slots with fill
- Noise/vibration reduction
- CMT Xtreme Balancing
- Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.
Suitable for use with
- Mitre saw
- Radial arm
- Table saw
Applications
- Ripping
- Crosscuts
- Hardwood
- Softwood
- Plywood
- Melamine
Technical details
- Teeth height mm: 8
- CHROMIUM ISO grade: KCR01
- Hardness (HV10): 1.870
- Transverse rupture strength (N/mm2): 2.200

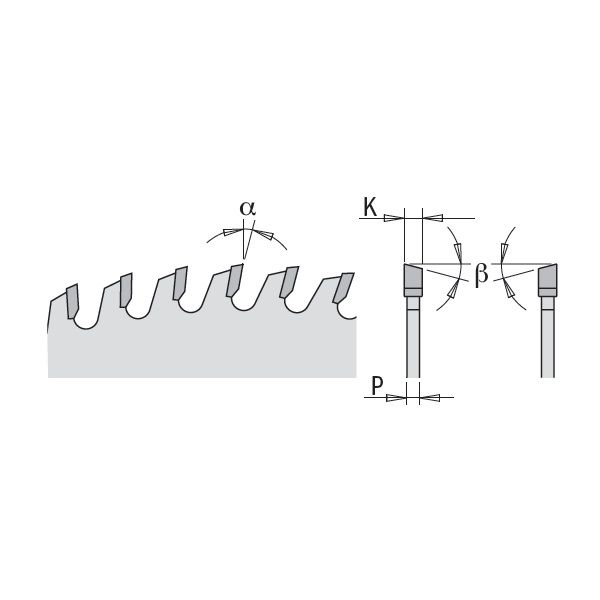

Specification
- (D) Diameter: 350mm
- (B) Bore: 30mm
- (FT) Pin hole: COMBI3 (2/7/42 + 2/9/46.4 + 2/10/60)
- (Z) Number of cutting edges/teeth: 54
- (K) Kerf thickness: 3.5mm
- (P) Plate thickness: 2.5mm
- (α) Hook angle: 15 degrees
- (β) Type of grind: 10° ATB (alternate top bevel grind)
