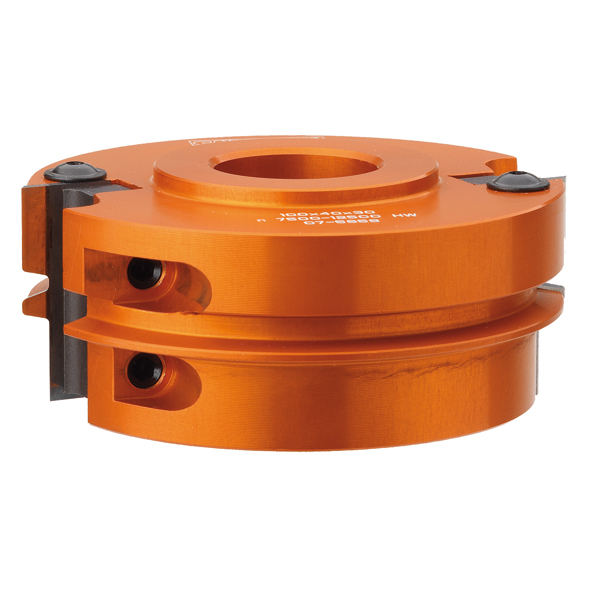

CMT Reverse glue joint cutter head CMT 694.009.30

CMT Reverse glue joint cutter head
Ref: 694.009.30

• The most unique and important feature of these CMT cutter heads is the capacity to produce almost indestructible glue joints quickly and accurately. Ideal for shaping wide dimension panels, doors and furniture pieces.
• By accurately centering the cutter head to the wood, the upper and lower vertical cutting edges will cut equal proportions.
• Simply run one side of the panel, turn the panel over, and then run the opposite side - you will produce perfectly harmonized reverse cuts matching up to make flawless joints. Excellent results on most materials, but ideal on solid wood, coated and uncoated man-made materials.
• Supplied in a solid plastic box

• Hard aluminium alloy body with high resistance to tensile and yield stress.
• 2 HWM knives (40x18x2mm - Z2).
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives.

• Z: 2 (number of cutting edges)
• RPM: 7500~12500
• B: 30mm (bore diameter)
• D: 100mm (diameter)
