CMT Profile and Counter Profile Cutter Head Set 132mm dia, 30mm bore - 694.015.30

CMT Profile and Counter Profile Cutter Head Set 132mm dia, 30mm bore

ref: 694.015.30

• These versatile sets have been designed to make furniture and doors on soft and hardwood.

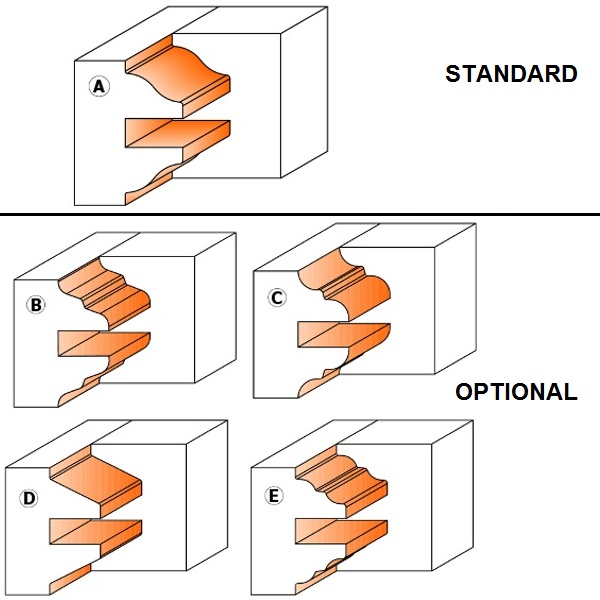

• It allows the insertion of five different knives to produce the most popular and classical profiles.
• The adjustable cutter, included in the set, can also be used individually to carry out grooves from 8mm (5/16") to 15mm (5/8") thick.
• Perfect on solid wood and panels with maximum 48mm (1-7/8”) in thickness.

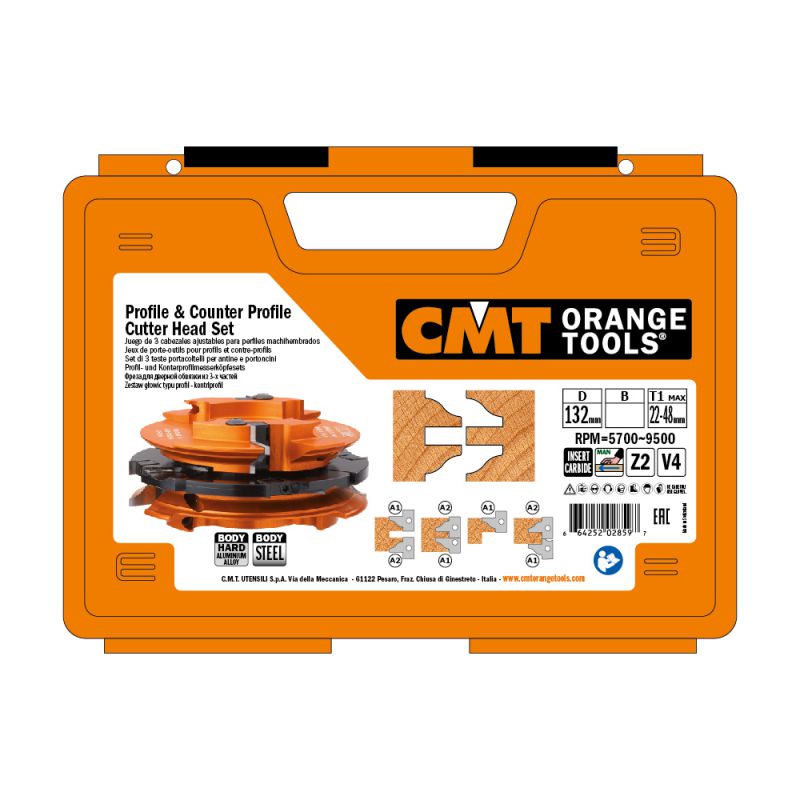

• Supplied in a solid plastic box
• Insert carbide
• Tool for manual feed
• Two cutting edges
• Four spurs

• Spindle moulders and moulder machines.

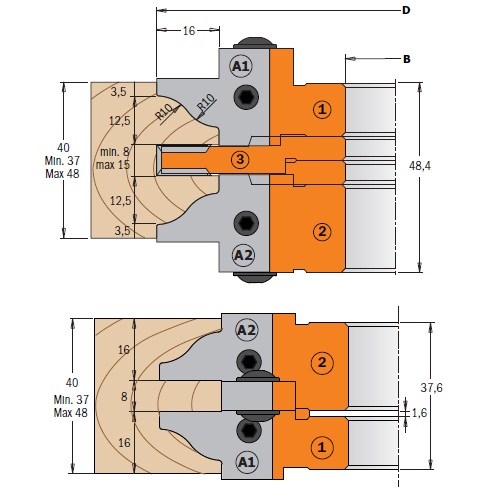

• Hard aluminium alloy body with high resistance to tensile and yield stress for cutter heads (1) & (2).
• Super-strength steel body for cutter head (3).
• 2 HWM knives type (A1) - (25x29,8x2mm - Z2).
• 2 HWM knives type (A2) - (25x29,8x2mm - Z2).
• 4 HWM knives (7,65x12x1,5mm - Z4).
• 4 HWM knives (14x14x1,2mm) for cutter heads (1) & (2).
• 12 spacer rings from 0,1mm to 3mm for cutter heads (1) & (2).
• 12 spacer rings from 0,1mm to 2mm for cutter head (3).
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives.

• (D) Diameter: 132mm
• (B) Bore: 30mm
• (Z) Number of cutting edges: 2
• Spurs: 4
• RPM: 5700 - 9500
• Material: HW
