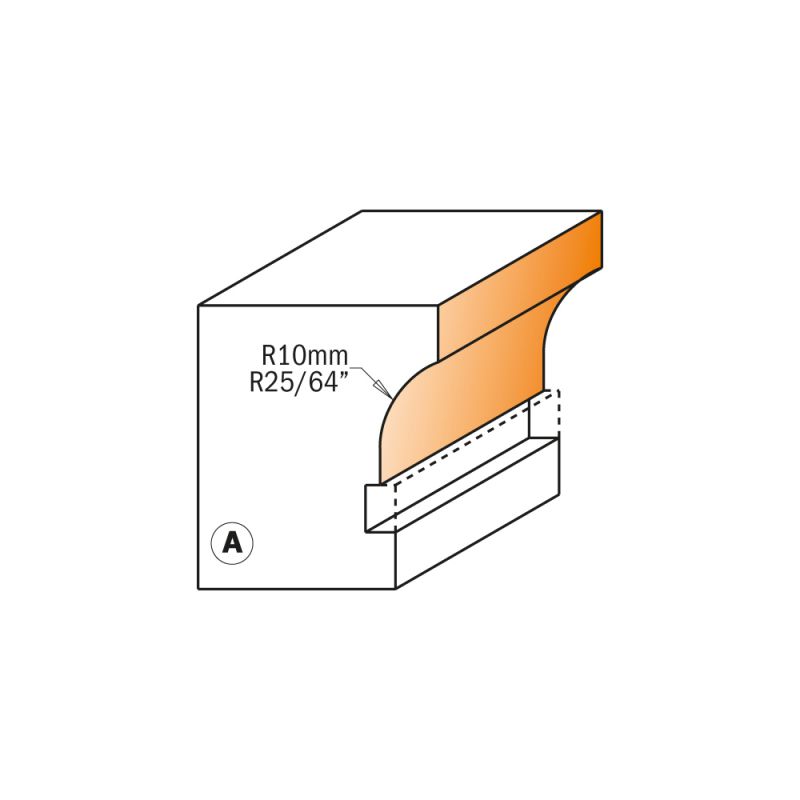

CMT Ovolo sash router bit - 25 dia x 19mm cut x 1/4 shank, profile A

CMT Ovolo sash router bit, profile A
Ref: 855.307.11M

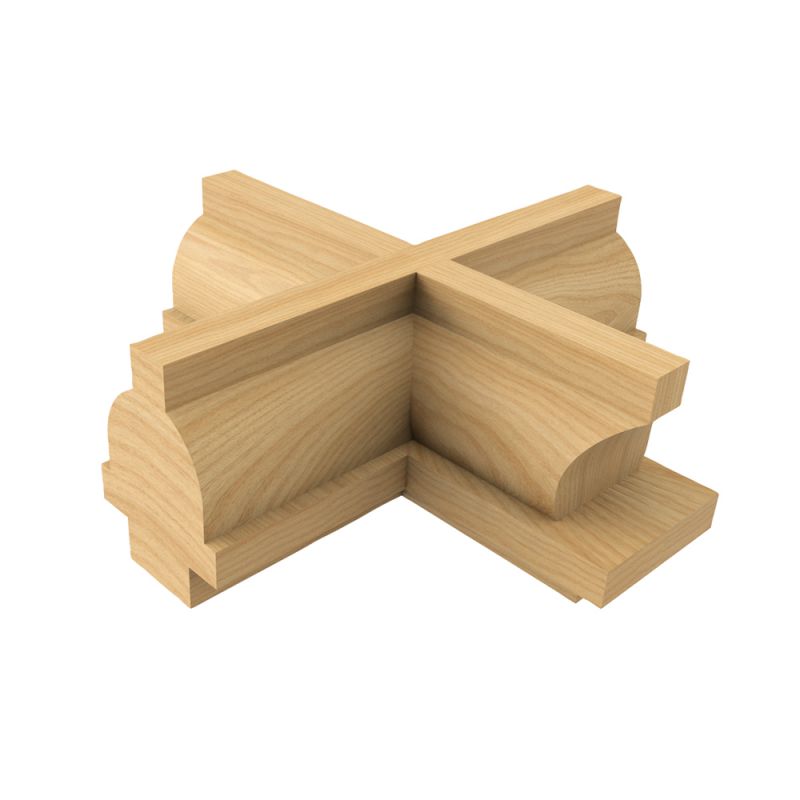

• These bits allow you to make true divided light doors for fine furniture and cabinets as well as sash bar windows, and stile and rail constructions.
• The glazing bar ovolo bits are bearing-guided to enable curved frames to be moulded.
• Cove bits can be used to produce easy-to-pull drawer handles.

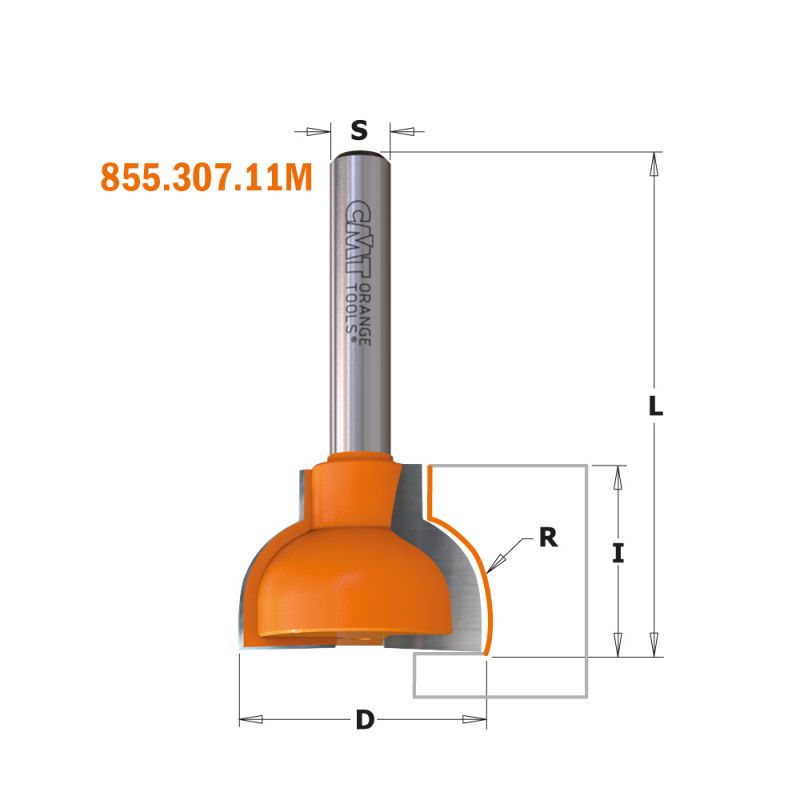

• D: 25 (diameter)
• I: 19 (cutting length)
• R: 10 (radius)
• L: 51 (overall length)
• S: 6,35 (shank diameter)
