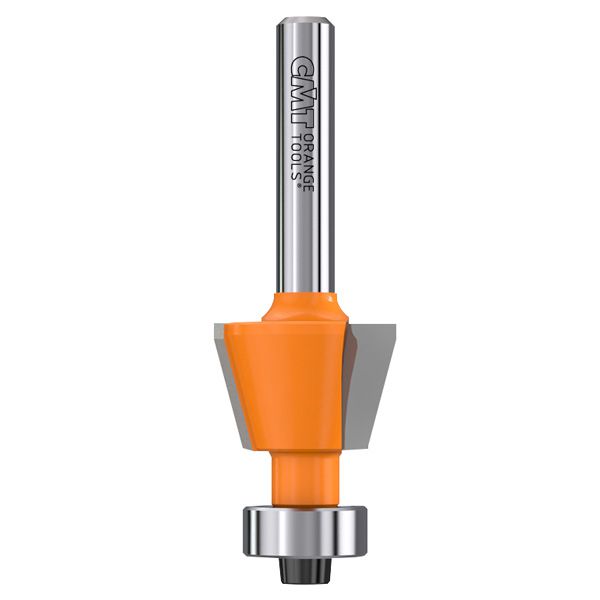

CMT Non-blocking combination trimmer bit - 18.6 dia x 11mm cut x 1/4 shank, 15 deg

CMT Non-blocking combination trimmer bits
Ref: 809.016.11

• CMT’s combination flush and bevel trim bits are perfect for executing superb precision finishing on laminates with ease. Achieve a great variety of angles without even changing the bit.
• Simply lower the bit cutting depth for precise right angle cuts or raise it to create rounded edges.
• Suitable for both soft and hardwood.
• These bits include a ball bearing guide for easy template work and serve to protect your workpiece.
• They feature two flutes for executing smoother cuts and for rounding off table legs and other soft areas on furniture susceptible to damage.
• SHOP TIPS: undersized bearing to use after resharpening.
• 791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening.

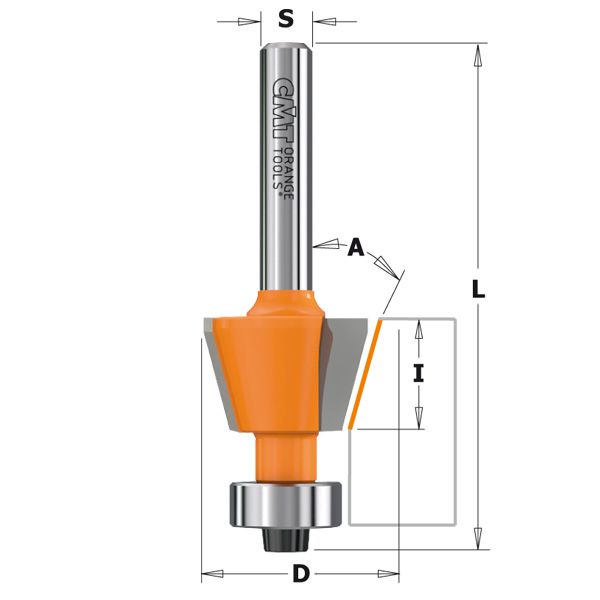

• S: 6.35 mm (shank diameter)
• D: 18.6 mm (cutting diameter)

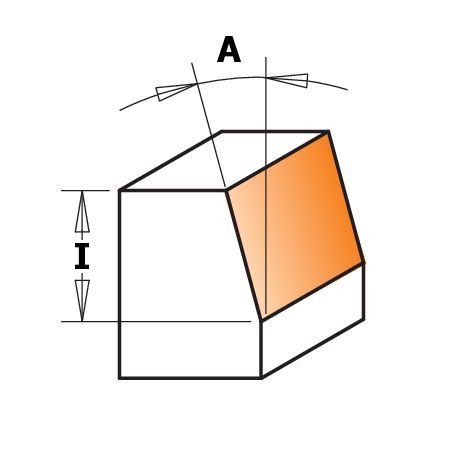

• I: 11 mm (cutting length)
• L: 57 mm (overall length)
• Z: 2 (number of cutting edges)
• A: 15° (cutting angle)
