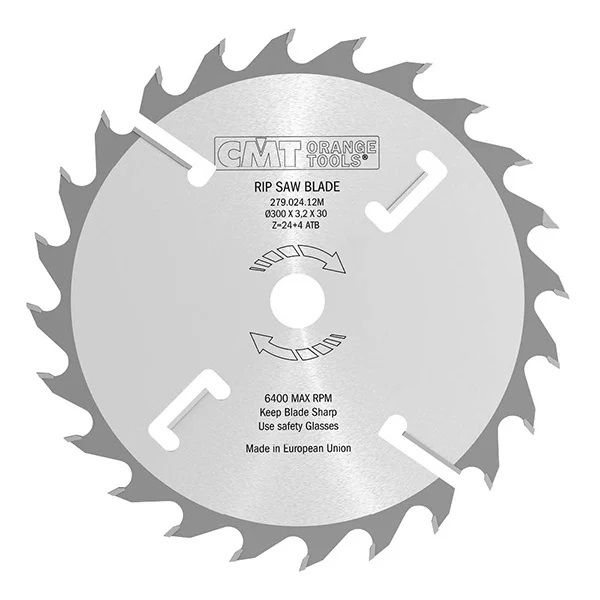

CMT Industrial Multi-Rip Saw Blade with Rakers - 350mm dia x 3.5 kerf x 30 bore Z28 10°ATB

CMT Industrial Multi-Rip Saw Blade with Rakers - Wood - 350mm dia x 3.5 kerf x 30 bore Z28 10°ATB
Ref: 279.028.14M

• Tungsten carbide tipped
• Tool for mechanical feed
• Industrial
• The rakers prevent contact between the steel plate body and the material in use.
• Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.

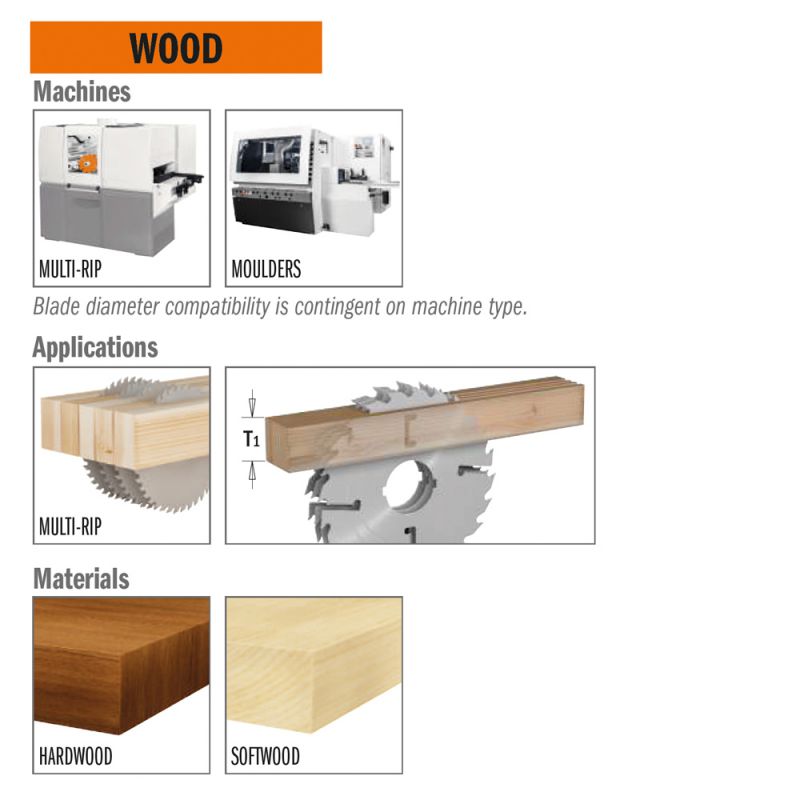

• Multi-rip machines
• Moulders

• Multi-rip
• Hardwood
• Softwood

• Teeth height mm: 10
• ISO grade: K20
• Hardness (HV10): 1.640
• Transverse rupture strength (N/mm2): 2.200

• (D) Diameter: 350mm
• (B) Bore: 30mm
• Key Way: n/a
• (FT) Pin hole: COMBI3 (2/7/42 + 2/9/46.4 + 2/10/60)
• (Z) Number of cutting edges/teeth + rakers: 28+4
• (K) Kerf thickness: 3.5mm
• (P) Plate thickness: 2.5mm
• (T) Maximum stock thickness: 105mm

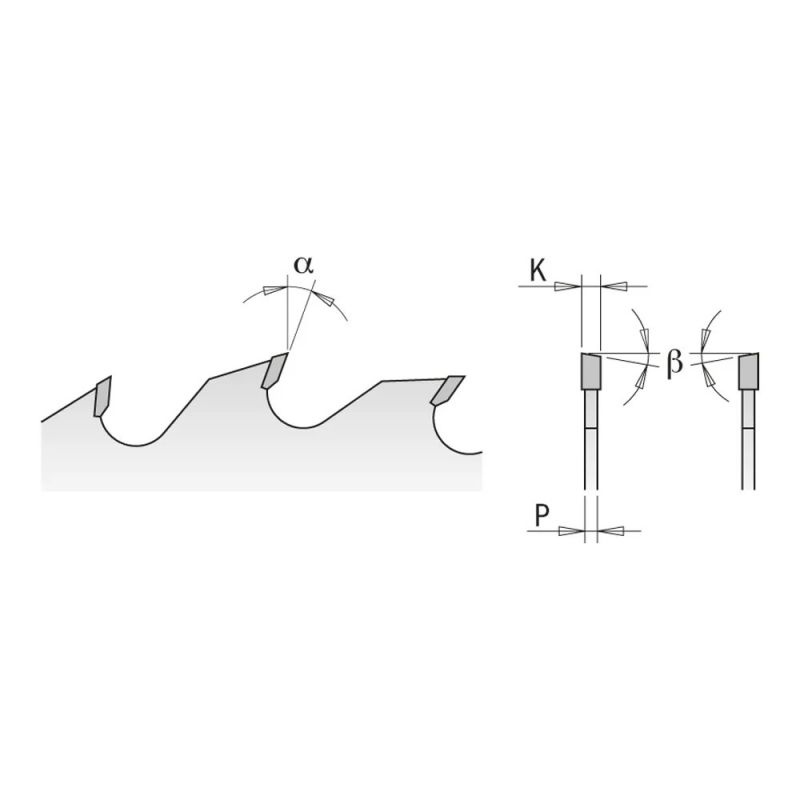

• (α) Hook angle: 18 degrees
• (β) Type of grind: 10° ATB (alternate top bevel grind)
