CMT Flush trim router bit - 6.35 dia x 25.4mm cut x 1/4 shank

CMT Flush trim router bits
Ref: 806.064.11

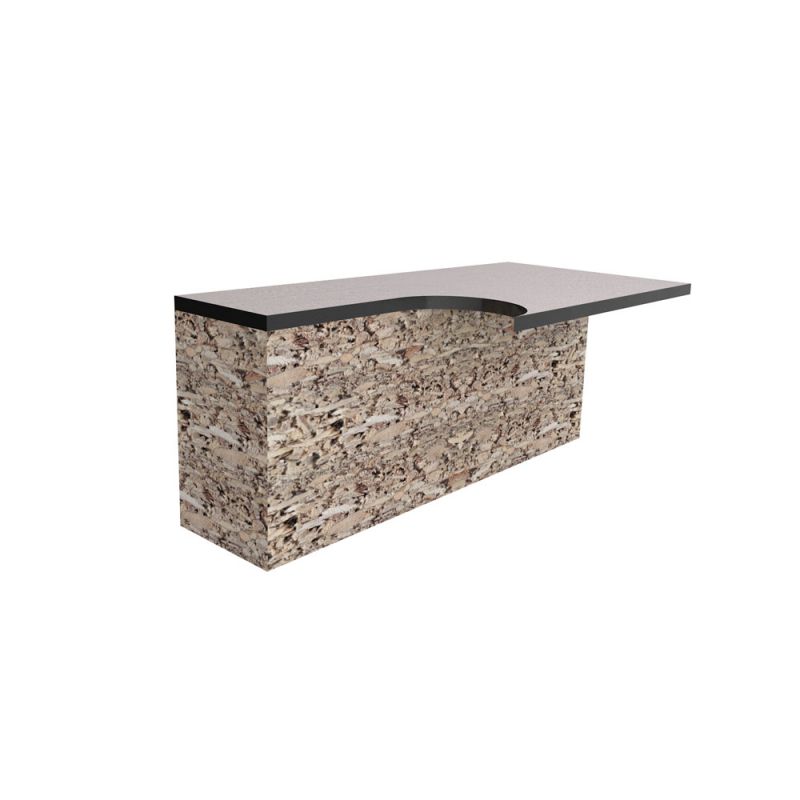

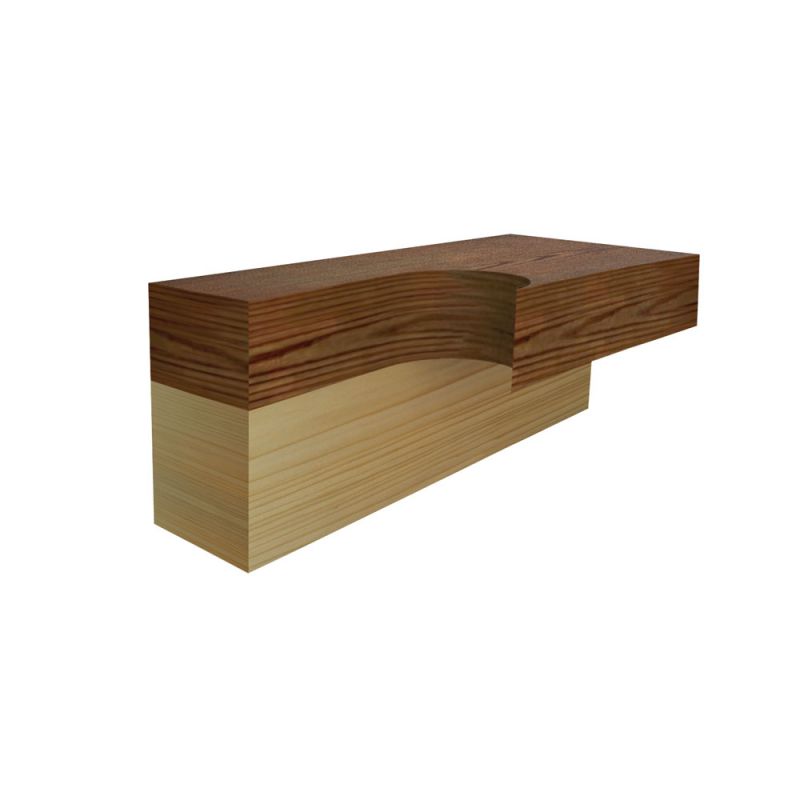

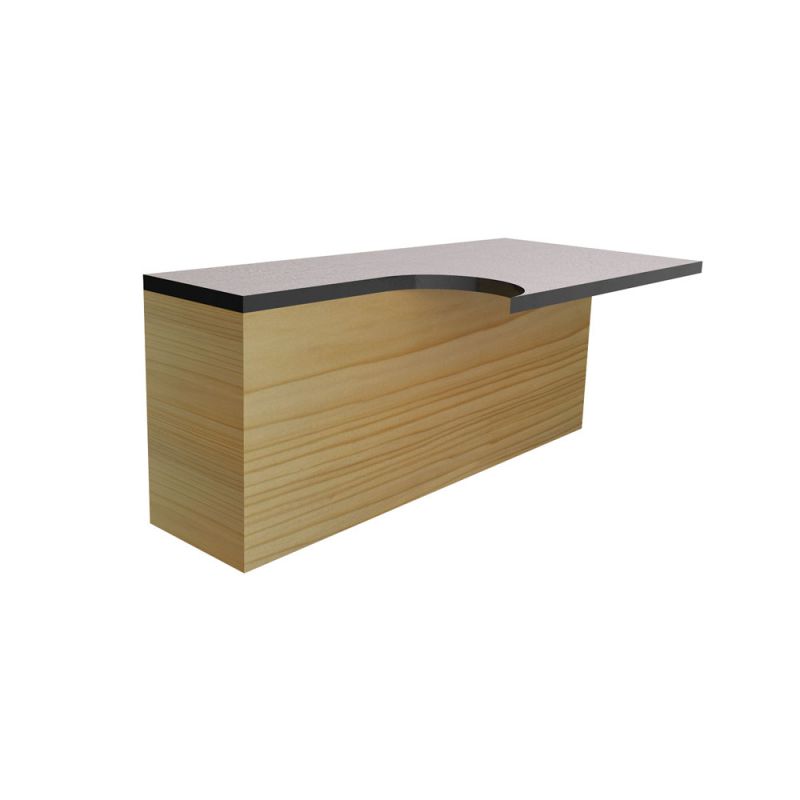

• We have designed a series of truly indispensable bits available in a wide range of sizes for your woodworking needs and your most difficult projects. For precision work on laminates or quick template work with excellent finishing.

• SHOP TIPS: these bits are excellent for making through mortise. Use a straight bit (711.130.11) to groove the area to make the through mortise. With a drill bit (517.130.31) bore a hole through the wood at one end of the groove. Turn the workpiece over to finish the mortise. Use a flush trim bit with a cutting length slightly longer than the fillet, following the groove made on the opposite side of the workpiece with the ball bearing guide.

• SAFETY TIPS: dust and chips from laminate materials are hazardous to your health and safety. Always wear a dust mask and eye protection when routing.

• SHOP TIPS: UNDERSIZED BEARING TO USE AFTER RESHARPENING.
  791.062.00 Ø9,3 replace bearing 791.002.00 (Ø9,5) after resharpening
  791.063.00 Ø12,5 replace bearing 791.003.00 (Ø12,7) after resharpening

• MAT: HW (material)
• Z: 2 (number of cutting edges)
• S: 6.35 mm (shank diameter)
• L: 63.5 mm (overall length)
• I: 25.4 mm (cutting length)
• D: 6.35 mm (cutting diameter)
