Bessey STBU40-17-15 U-Shaped High-Performance Clamp, Heavy Duty STBU 500/175
Product Code: BES/STBU40-17-15
Brand: Bessey
Stock Expected
Delivery typically within 7-10 days
£304.88 Inc. VAT
£254.07 Exc. VAT
✗ COLLECTION
✓ DELIVERY

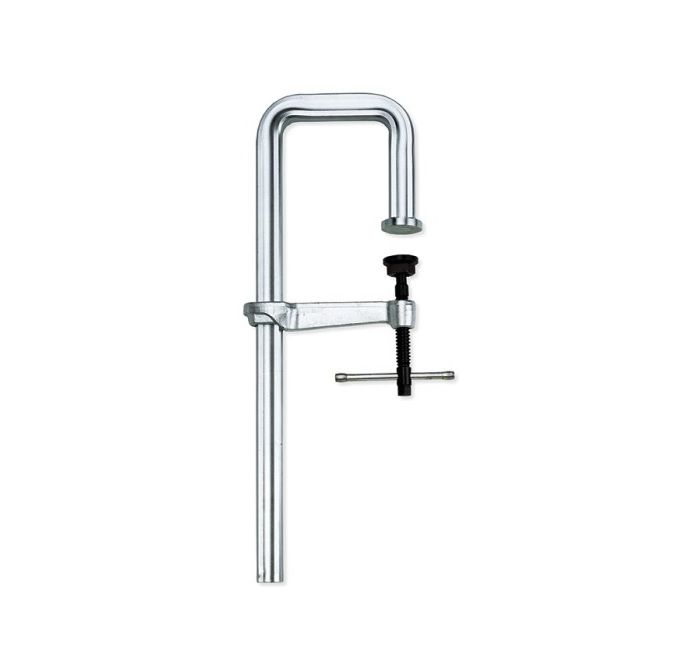

Bessey STBU40-17-15 U-Shaped High-Performance Clamp, Heavy Duty STBU 500/175
Strengths and benefits
- Extremely sturdy, The U-shaped fixed arm is produced and tempered from a single piece, thus very torsion-resistant. This guarantees you maximum tensile strength and sturdiness.
- Special tilting pressure plate, The heat-resistant pressure plate (SGU/STBU) is replaceable and can be tilted up to 35° so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties.
- Forged sliding arm, The sliding arm is made from forged tempered steel, and can withstand extremely large loads. You can be sure of that.
- Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.
- Sturdy tommy bar, The sturdy tommy bar has special rounded hand-friendly ends, as well as a hexagonal bolt. This allows powerful, controlled clamping.
Key Features
- Clamping force up to 22,000 N at tightening torque of 80 Nm
- Double-sided step-over clamping, specially suited for T-profiles and double T-profiles
- With 19 mm hexagonal bolt on the end of the spindle
- Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°
Specification
- Weight (kg): 7.96
- B - Throat depth (mm): 175
- X - Rail (mm): 40 x 20
- A - Opening (mm): 500
- Clamping Force kN (up to): 22,000 N
- Clamping depth C: 150mm
- Clamping depth D: 110mm
