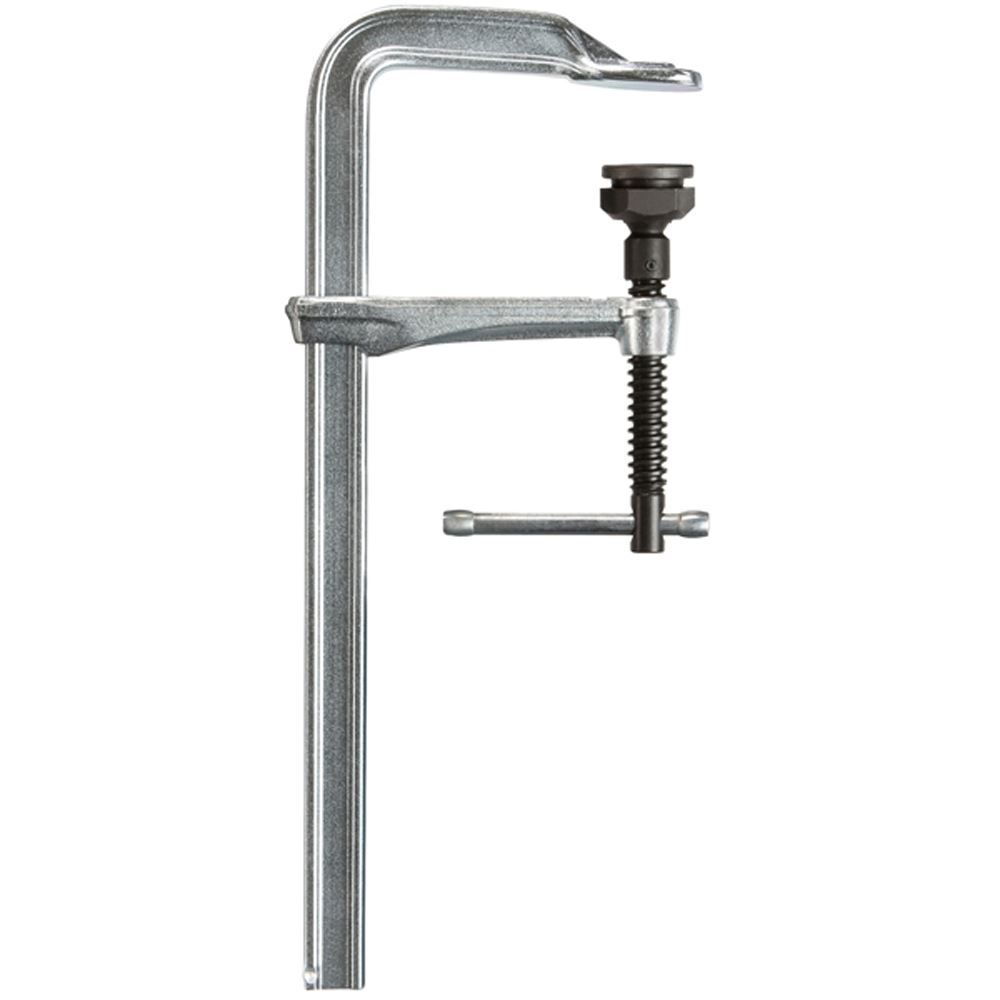

Bessey SLM High-Performance Fitter's Clamps

Product Code: BES/SL20M_MST

Brand: Bessey

Several options are available for this product.

Please Choose Below

Bessey SLM High-Performance Fitters Clamps

Strengths and benefits

High stability, The optimised profile guarantees high clamping force build-up in the shortest time, while maintaining maximum stability and safety. The fixed bracket and pressure plate are manufactured in a single piece, and tempered, so are able to bear heavy loads and are resistant to torsion.
Forged sliding arm, The sliding arm has a shape that allows for more efficient transfer of force. As a result of its more linear transfer of force, the U-shaped sliding arm offers maximum security with the heaviest of loads. You can rely on that.
Special tilting pressure plate, The heat-resistant pressure plate is replaceable and can be tilted up to 35° so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties.
Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.

Key Features

Clamping force up to 8,500 N at tightening torque of 25 Nm
20 % more clamping force per spindle rotation with optimised rail profile
Maximum safety due to the better linear transfer of force of the sliding arm
Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°
