Bessey GRA100-12 Claw Clamp GRA 1000/120
Product Code: BES/GRA100-12
Brand: Bessey
Low Stock - Please Call For Availability
£191.17 Inc. VAT
£159.31 Exc. VAT
COLLECTION
DELIVERY
Please call to check stock availability for larger quantities

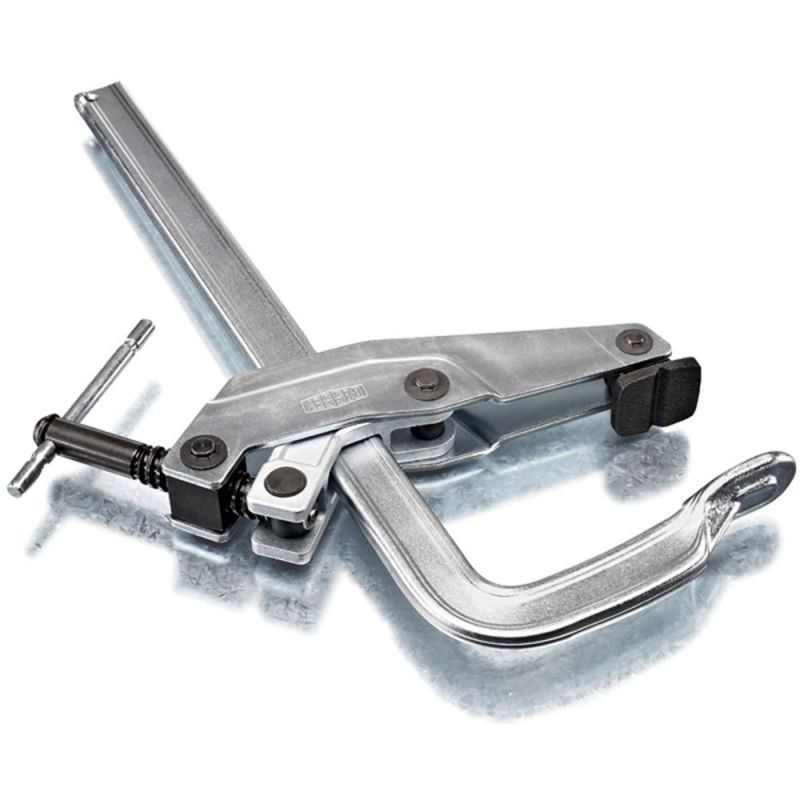

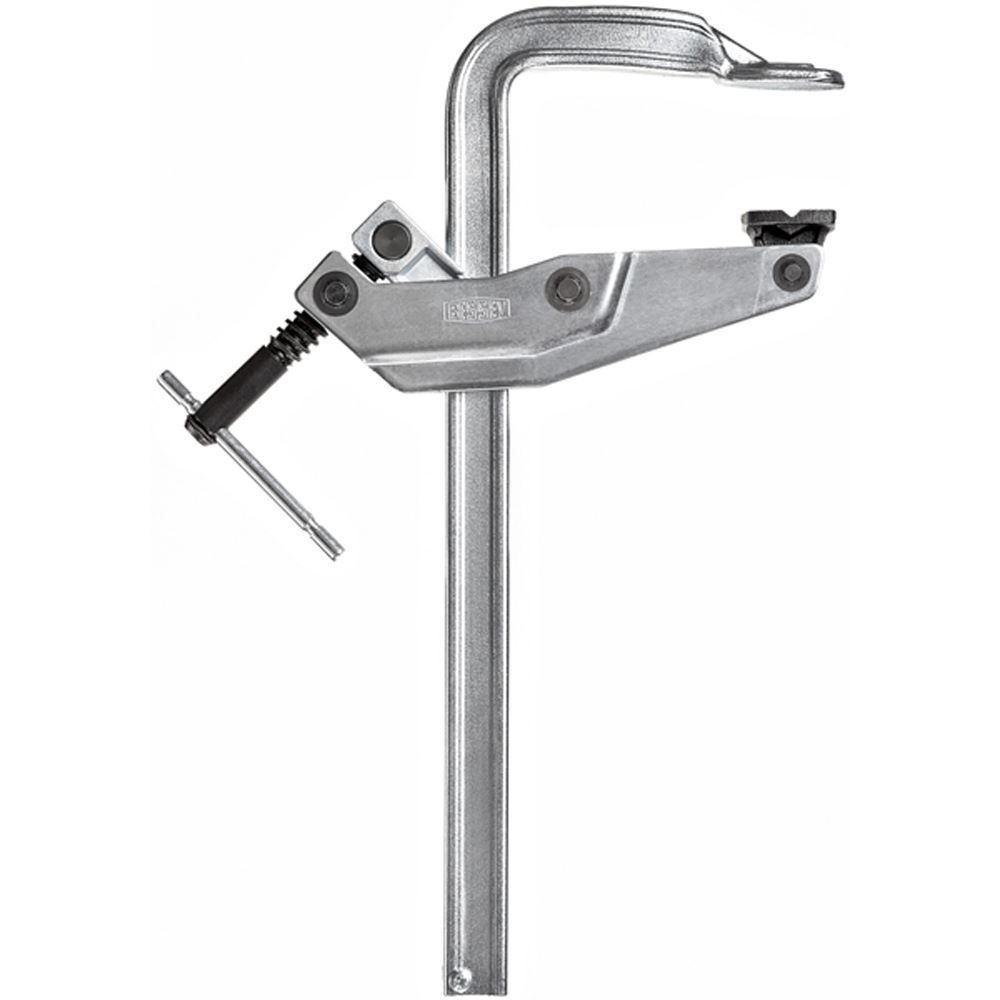

Bessey GRA100-12 Claw Clamp GRA 1000/120
Strengths and benefits
- Maximum stability, The clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant. The optimised profile now allows greater extension with the same stability.
- External handle, The handle is located behind the clamp's rail. This is specially conceived to allow the clamping and spreading of work-pieces which are not easily accessible.

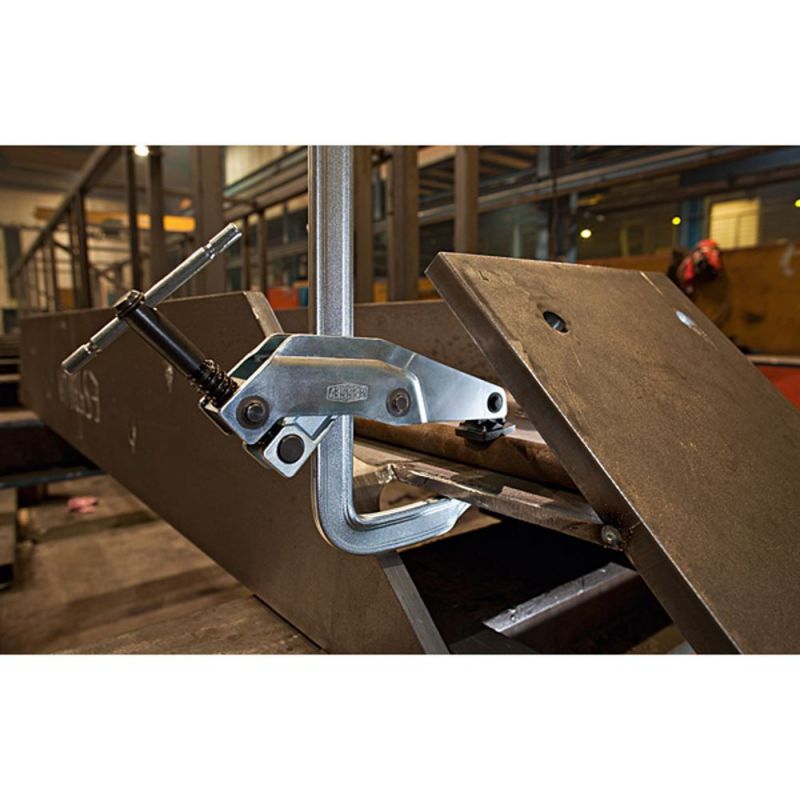

- Special V-grooved pressure plate, This sturdy pressure plate is made from high-grade cast iron, and can be tilted by up to 30°. The prism is ideal for clamping and spreading round or angular work-pieces.
- Removable end stop, The end stop can be removed – to allow the sliding arm to be quickly turned around for spreading.
Key Features
- Clamping and spreading force up to 7,500N

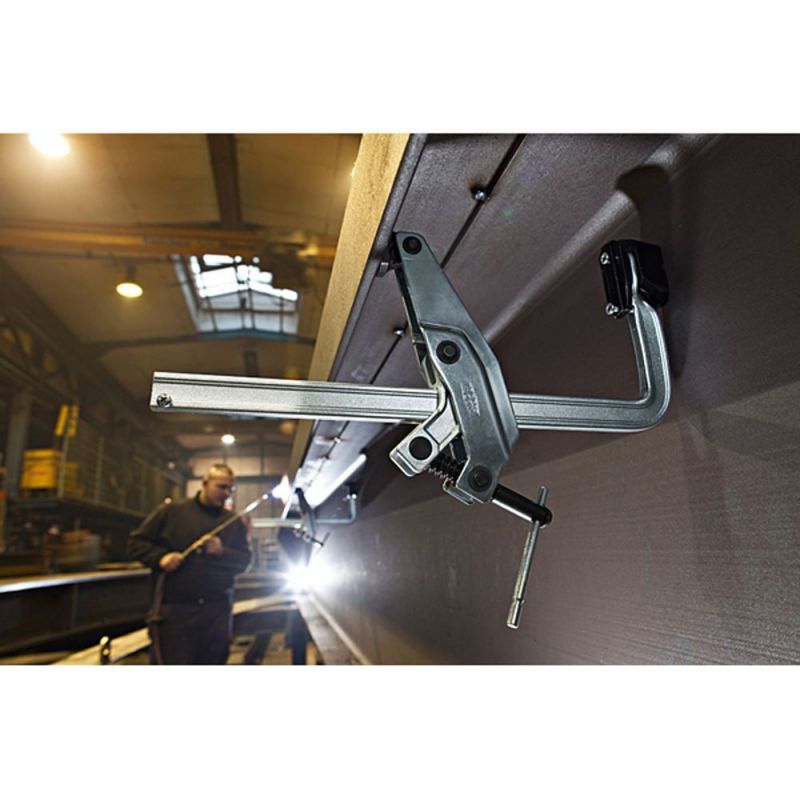

- Externally-positioned spindle, protected from welding spatter
- Clear access to work area
Specification
- Weight (kg): 3.80
- B - Throat depth (mm): 120
- X - Rail (mm): 28 x 11
- A - Opening (mm): 1000
- Clamping Force kN (up to): 7,500 N
