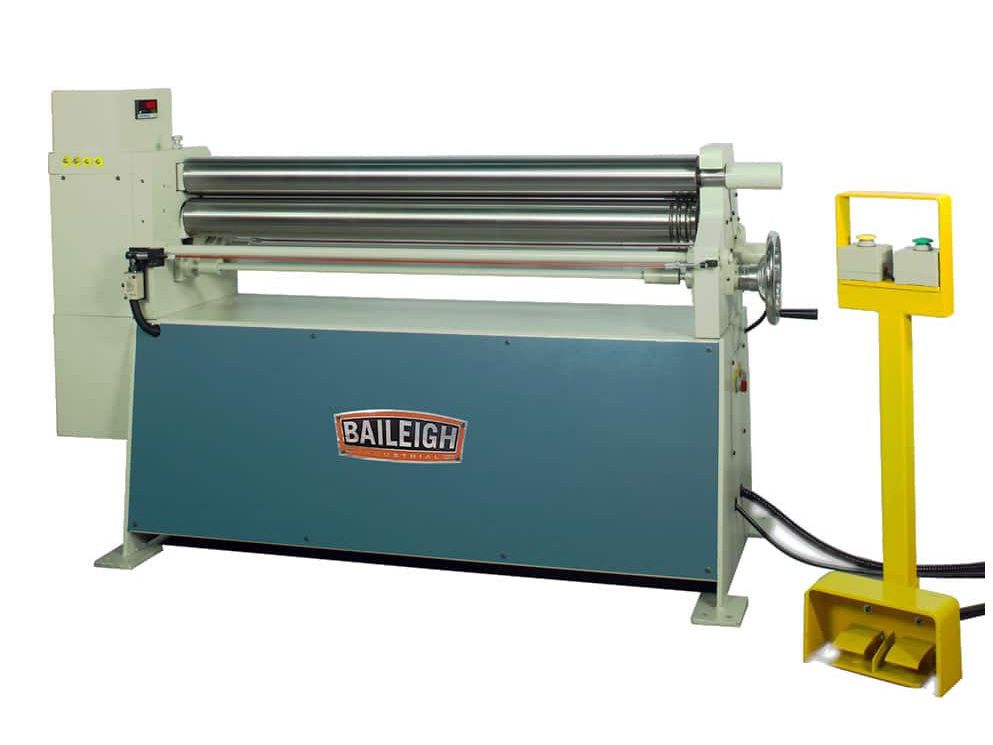

Baileigh PR-413 Plate Roll 1300mm

Baileigh PR-413 Plate Roll 1300mm

Do you currently have a slip roll but are constantly being bogged down when you need to form something a little thicker. That is where the PR-413 roll former comes in. This economical plate roll has the ability to handle up to 13 gauge mild steel over its whole 4' length.

• This electrically driven plate roll is powered by a 1.5 hp 220 volt single phase motor allowing it to be used almost anywhere.
• Even though it is electrically driven the back roll movement is controlled by a hydraulic system.
• This industrial grade system allows the back roll to move up and down as well as tilt left and right when the finished product calls for coning.
• A digital readout is also provided to identify the position of the back roll as well.
• Three wire grooves are also included for those time that wire rings are need to be formed.
• The operation of the PR-413 roll former is all done on a convenient foot pedestal.
• Once the pinch is set the foot pedal contains forward and reverse pedal as well as buttons to control the up and down movement of the back roll.
• For safety, the PR-413 has emergency stop cable on the front and back of the machine.
• 1300mm forming width
• 2.5mm mild capacity
• Three driven rolls
• 9mm, 10mm & 13mm wire grooves

• Item Number PR-413
• Country of Manufacture Taiwan
• Forming Width 1219 mm
• Driven Rolls 3
• Roll Speed 3.6 m/min
• Upper Roll Dia. 95mm
• Roll Adjustment Back Hydraulic
• Roll Adjustment Pinch Manual
• Minimum Forming Dia 140mm
• Motor 1.5hp
• Working Height Yes
• Capacity (Mild Steel) 2,3 mm
• Power 220V - 1-Phase
• Shipping Weight 570 kgs.
• Shipping Dimensions (Inches) 1905 x 736 x 1168 mm
