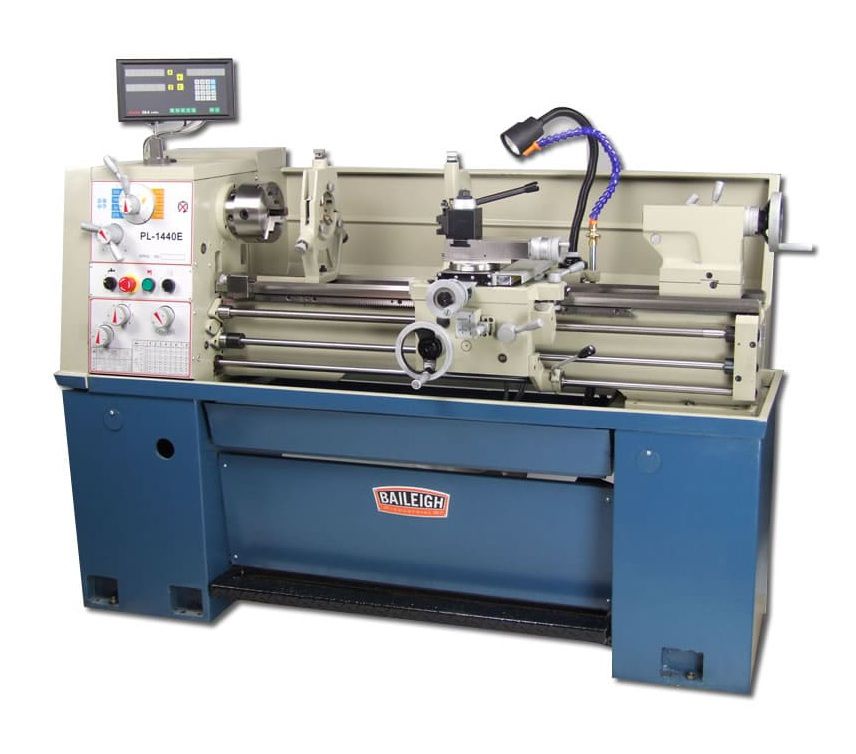

Baileigh PL-1440E Economical Precision Metalworking Lathe 240v

Baileigh PL-1440E Economical Precision Metalworking Lathe 240v

The PL-1440E metalworking lathe from Baileigh Industrial raises the bar on what entry level lathes should be. The PL-1440E is the best choice for small to medium sized shops just getting into the machining aspect of fabrication, or schools just looking for a high-quality metal lathe at a great price.

• As with all Baileigh gear head metal lathes, the PL-1440E comes with precision ground and hardened ways offering years use without losing the lathes tight tolerances.
• The Baileigh Industrial PL-1440E metalworking lathe runs on a 220 volt, single phase motor that allows the lathe to be used almost anywhere.
• Combine that with the 8 different spindle speeds, the PL-1440E offers and there aren't many jobs that this entry level lathe cant handle.

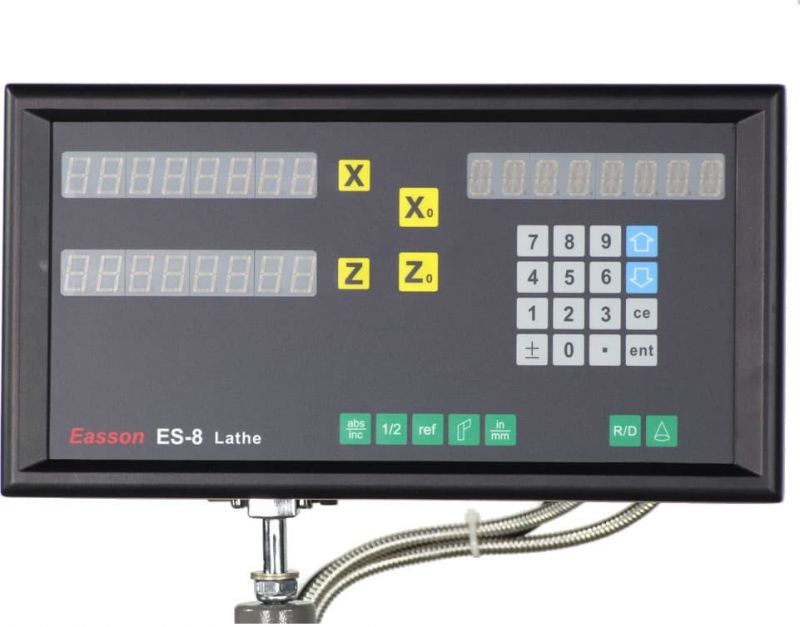

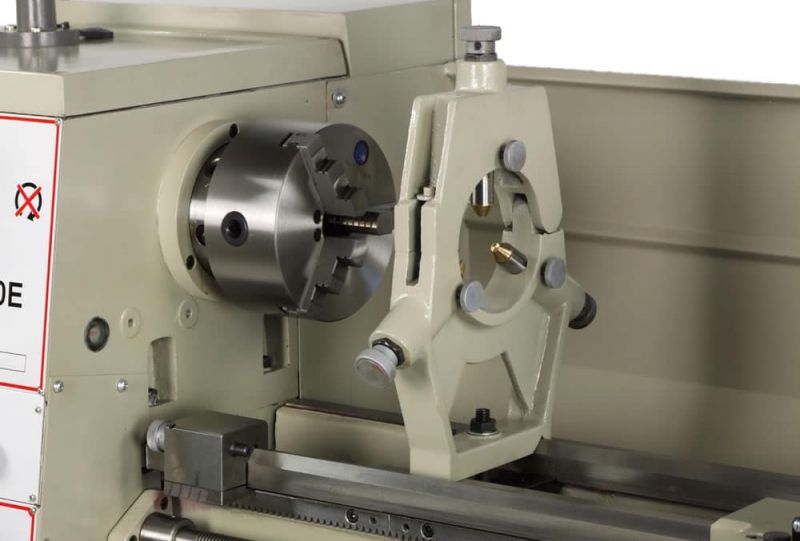

• The PL-1440E includes many features that the others do not; digital read-out, three and four jaw chucks, steady rest, follow rest, face plate, live centre, foot brake, coolant system, halogen worklight and much more round out this great value.
• Another great aspect of the PL-1440E is that no assembly is required to get up and running. Just open the crate, wire it up, and enjoy all the great benefits that the lathe can offer.
• Like all Baileigh Industrial metal lathes, the PL-1440E is built using only the highest quality components. Using only the highest quality components ensures years of worry-free operation.
• Distance between centres 1016mm
• 14" (355mm) swing over bed
• 6" three and 8" four jaw chucks

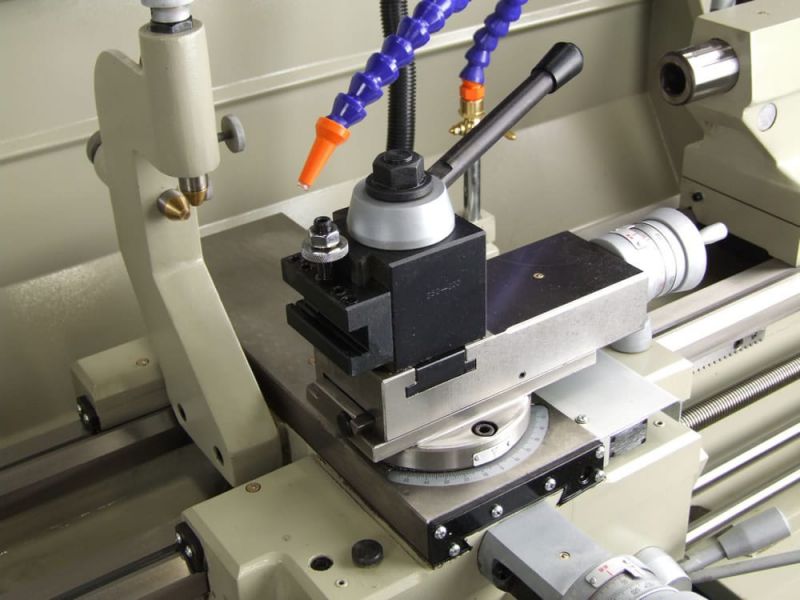

• Quick change tool holder

• Item Number PL-1440E

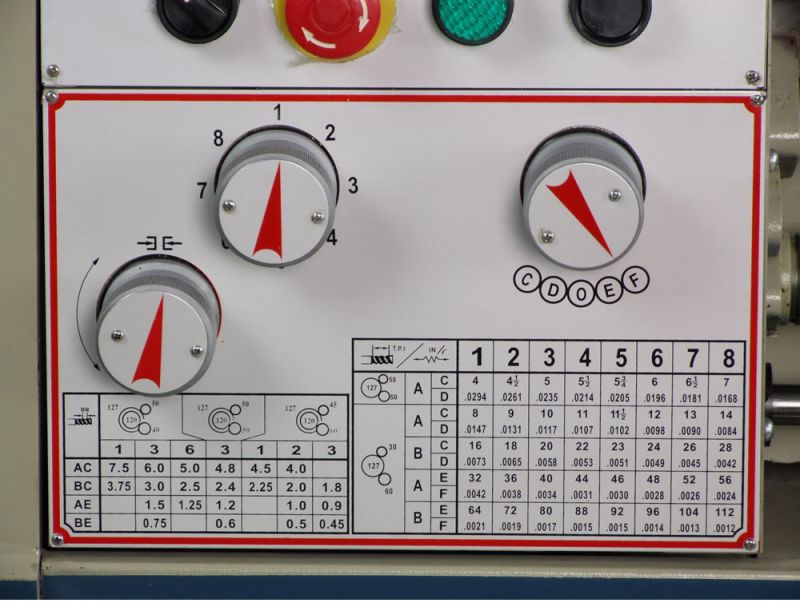

• Speed Range 46  1800 rpm
• Speed Number 16
• Spindle Bore 38 mm
• Motor 3hp
• Threads Imperial Qty Speed 45 / 4-112 T.P.I.
• Threads Metric Qty Speed 23 / .45-7.5 mm
• Spindle Taper Sleeve Morse #3
• Spindle Taper Nose Morse #5
• Tailstock Quill Dia 45 mm
• Tailstock Quill Taper Morse #4
• Tailstock Quill Travel 120 mm
• Center Length 1016 mm
• Bed Length 17172
• Bed Width 180 mm
• Longitudinal Feeds Imperial Qty Speed .03 mm  .75 mm
• Lead Screw Diameter 22 mm
• Max. Swing Over Bed 355 mm
• Max. Swing Over Cross Slide 220 mm
• Max. Swing In Gap Dia 506 mm
• Motor Coolant 1/8 hp
• Cross Feeds Imperial Qty Speed .008 mm  .25 mm
• Feed Rod 18 mm
• Power 220 volt single phase
• Shipping Weight 880 kgs.
• Dimensions L x W x H 1930 x 762 x 1550 mm
