Axminster Workshop AW2606B Bandsaw 230V

Axminster Workshop AW2606B Bandsaw 230V

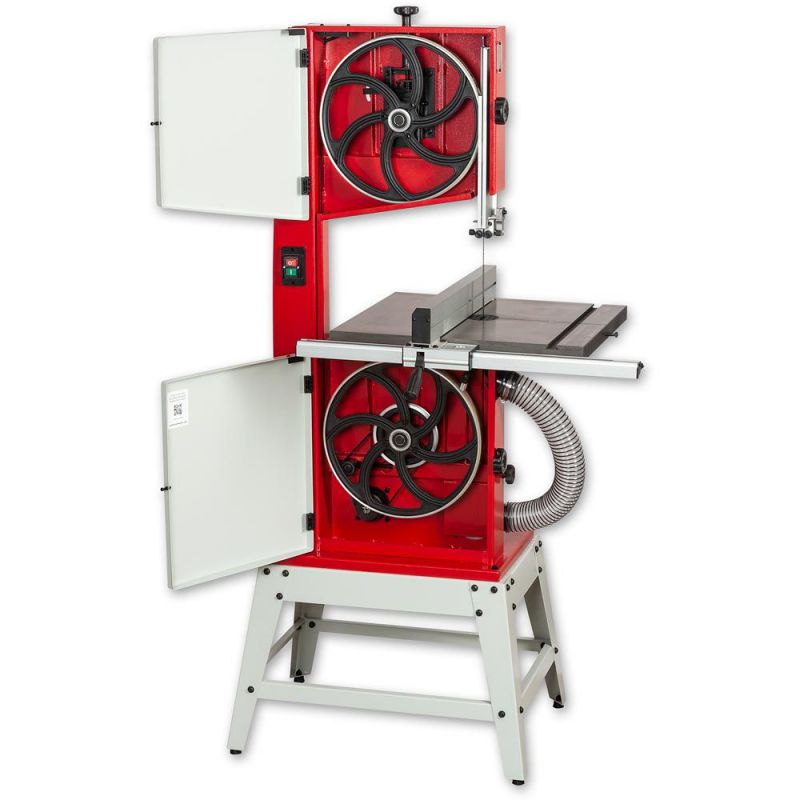

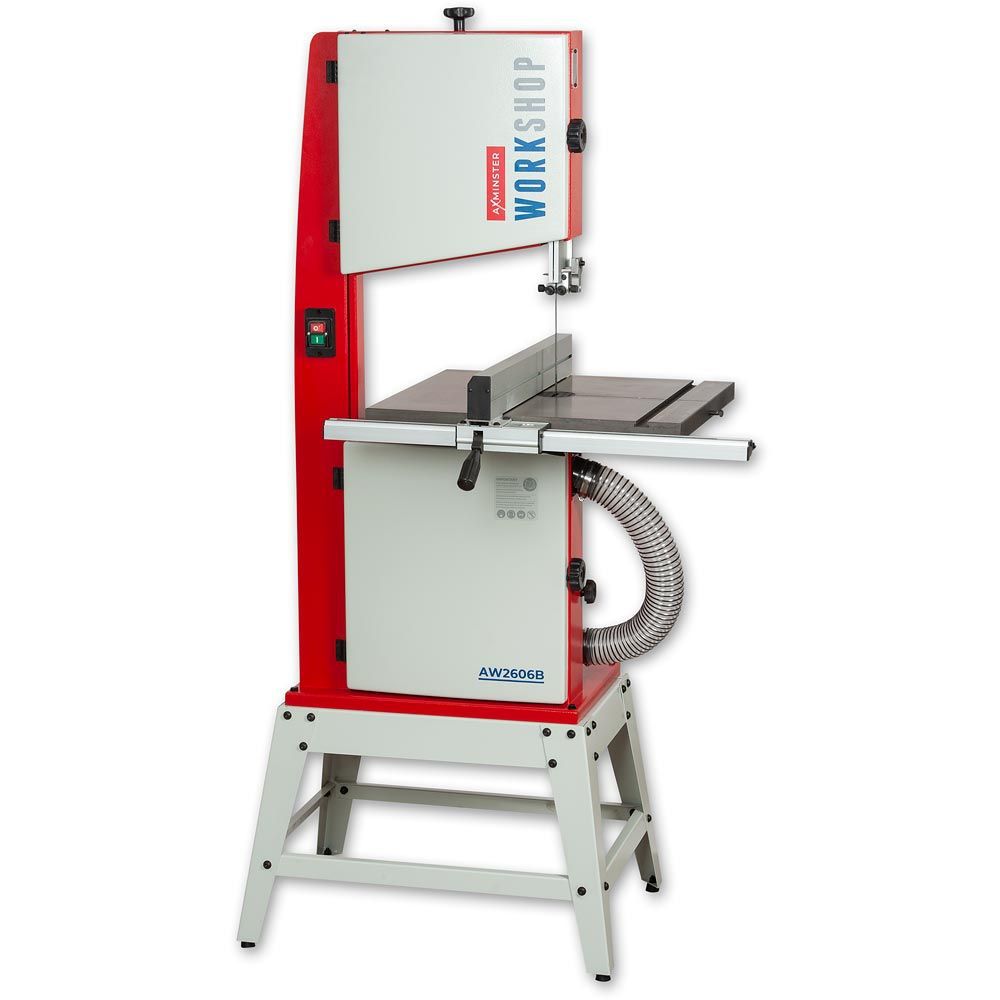

• Purchasing the AW2606B puts a powerful large capacity bandsaw in your workshop. A machine on which you can depend on to accurately slice thin veneers or resaw large chunks of timber, (we offer a wide range of blades for every task).
• A powerful, quiet and reliable alloy bodied induction motor drives the bandsaw through a multi V-belt . A choice of two blade speeds, gives you the right speed for any task.

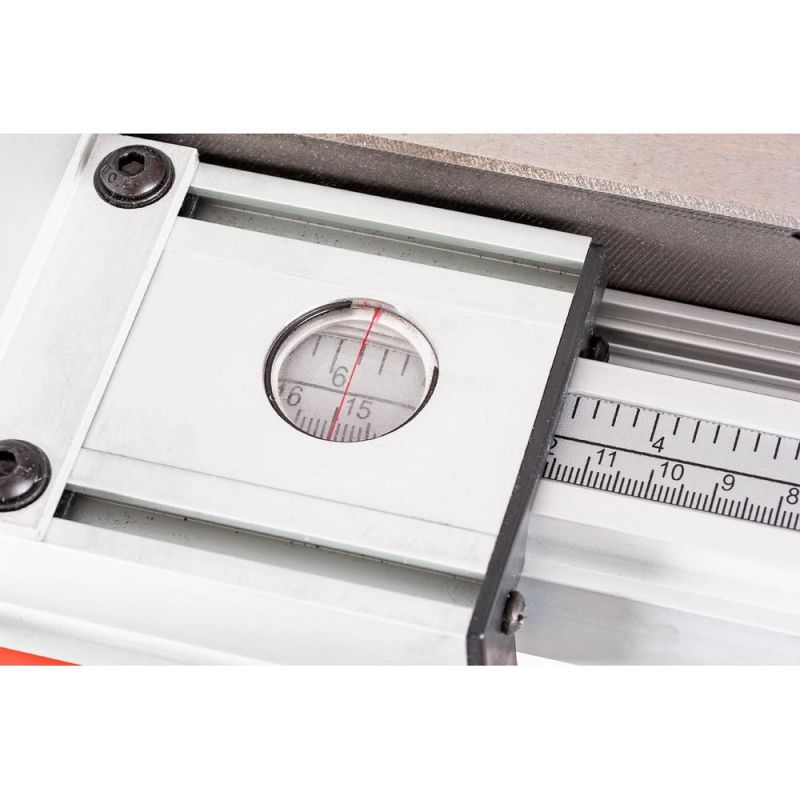

• The AW2606B has a strong fabricated steel frame with a cast iron table and mountings. The generously sized, cast iron table has a standard 19mm mitre fence slot. The rip fence cam locks solidly to the front rail. Twin scales allow the fence to be used either side of the blade.
• Bearing guides offer excellent support for increased accuracy. A rack and pinion system provides easy adjustment of the upper blade guide.

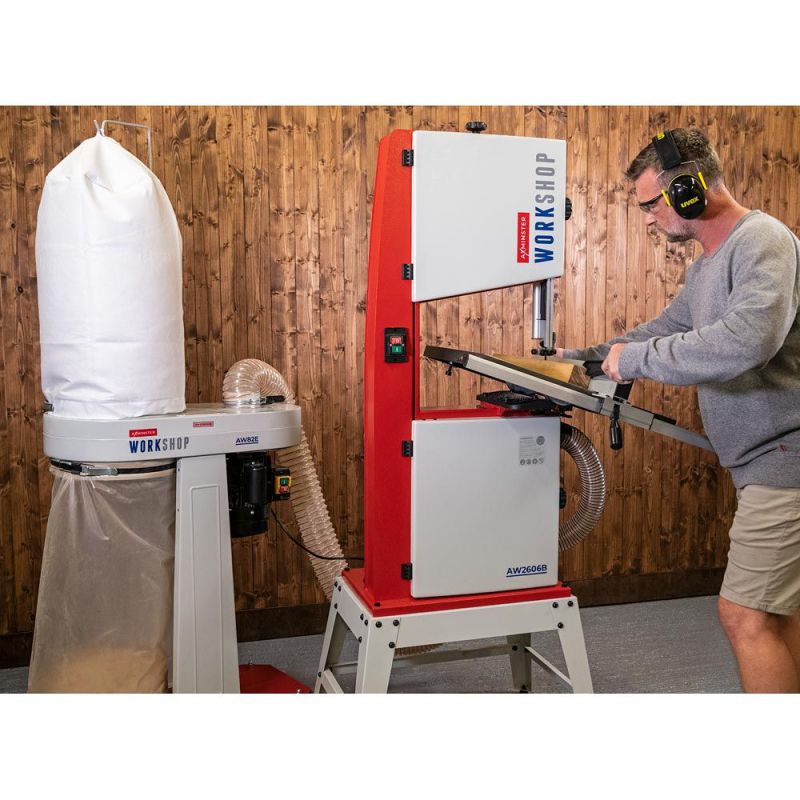

• The two dust extraction points are interconnected and joined to a single 100mm outlet for coupling to a suitable extractor. Supplied with a splayed leg steel stand with rubber feet and a UK made general purpose 1/2" x 4tpi blade.

• Bandsaw Blade Length: 2,606 mm (102.3/4")
• Bandsaw Wheel Diameter: 370 mm
• Blade Speed: 600 & 840 m/min
• Blade Width MinMax: 6 mm to 19 mm
• Dust Extraction Outlet: 100 mm
• Max Cutting Height: 200 mm
• Max Width of Cut: 360 mm
• Max Width of Cut with Fence: 260 mm
• Min Extraction Airflow Required: 1,000 m³/hr
• Model: AW2606B
• Nett Weight: 85 kg
• Overall L x W x H: 980 mm x 760 mm x 1,740 mm
• Plug Fitted: UK 3 pin plug
• Power: 1.1 kW
• Rating: Regular Use
• Sound Power Level LwA [Uncertainty K]: 98.5 dB(A) [3.0 dB]
• Sound Pressure Level LpA [Uncertainty K]: 84 dB(A) [3.0 dB]
• T Slot Size: 19 mm x 9.5 mm (3/4" x 3/8")
• Table Height: 1,060 mm
• Table Height on Stand: N/A
• Table Size: 485 mm x 550 mm

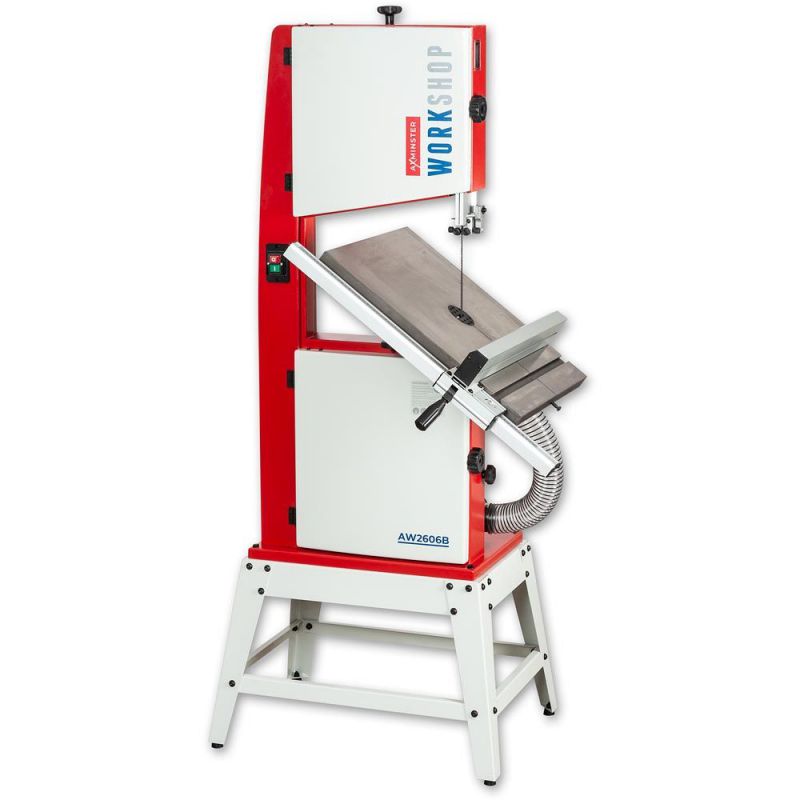

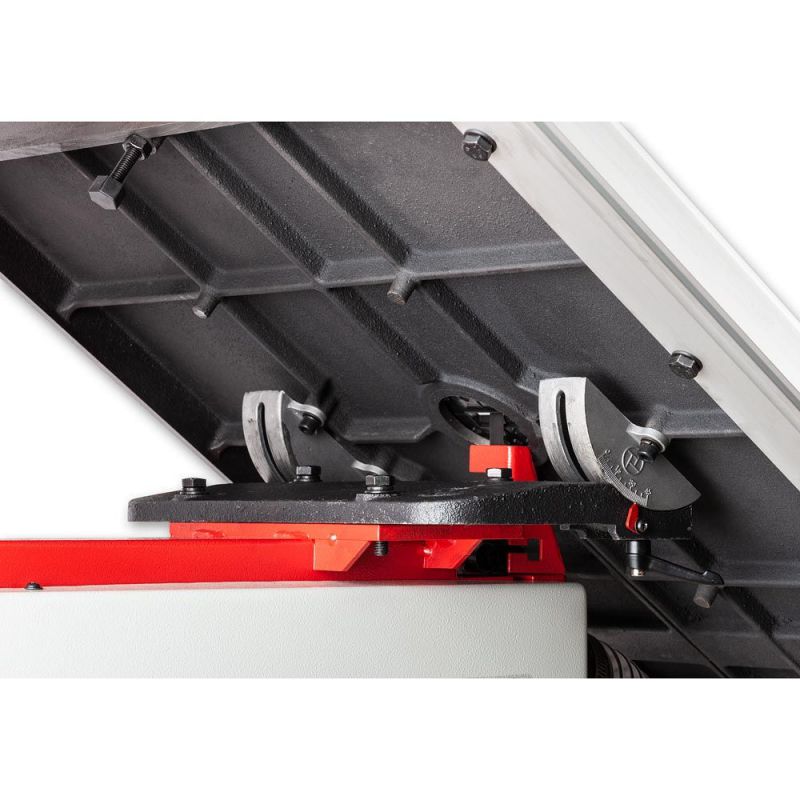

• Table Tilt: 0° - 45°
• Voltage: 230 V
