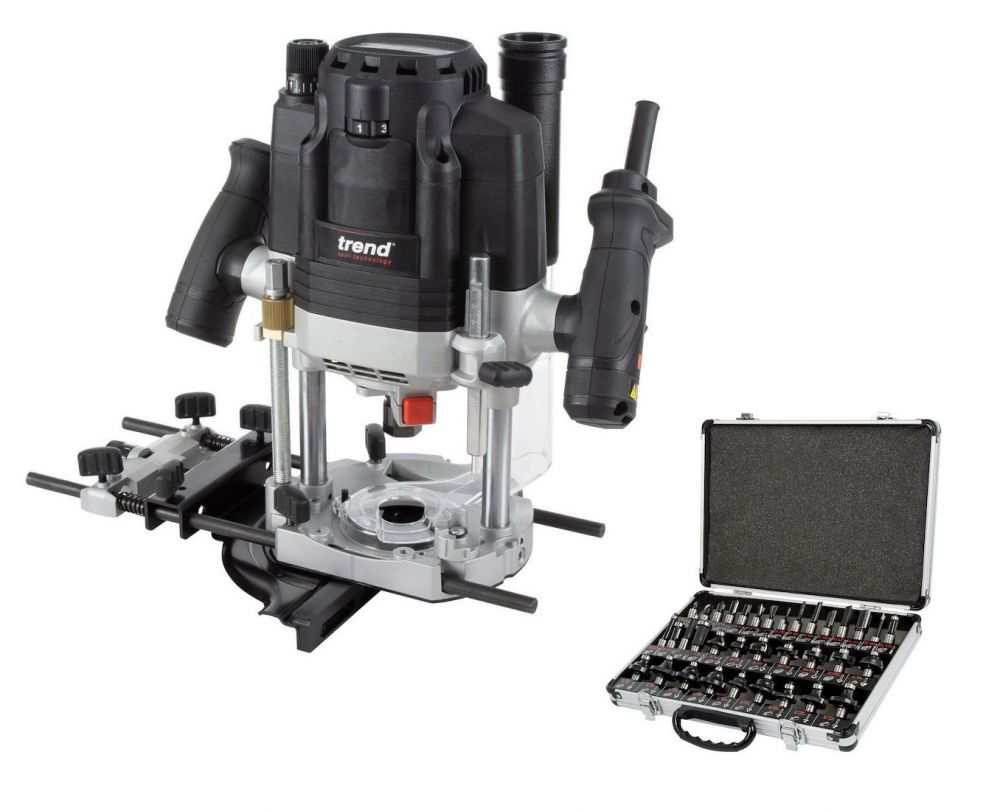

Trend T8EK 2200W 1/2" Dual-Mode Plunge Router Set PLUS 35 Piece Cutter Set

Trend T8EK 2200W 1/2" Dual-Mode Plunge Router Set PLUS 35 Piece Cutter Set

Package Includes:

1 X Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V

1 X TREND SET/SS35X1/2TC 35pc Router Cutter / Bit Starter Set

Trend T8EK - 2200W 1/2" Dual-Mode Plunge Router 240V

Trade-focused and engineered for both hand-held and router table use. Ideal for lock morticing, kitchen fitting, worktop jointing and timber profiling.

• 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
• Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
• Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
• Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
• 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
• Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
• Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
• 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
• Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
• Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
• Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
• Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
• Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
• Moulded Carry Case provides safe storage for router and accessories.
• Cam-Lock System Compatible for quick changes between hand-held and table routing.

• 1/2" collet
• Collet sleeve
• Centering pin
• 30mm guide bush
• Guide bush adapter
• Trammel pin
• 22mm spanner
• Router table safety clip
• Under fence dust adapter
• Vertical dust adapter
• Cyclone dust adapter
• Router table height adjuster
• Side fence
• Carry case

• Duty Rating: Medium/Trade
• Motor Power: 2200W
• AC Voltage: 240V
• Plug Type: UK 3 pin
• Supplied Collet Size: 1/2“
• Plunge Stroke (Max): 80mm
• No Load Speed: 10,000-26,000rpm
• Supplied Guide Bush: 30mm
• Fence Rod Length: 360mm
• Fence Rod Centres: 84mm
• Fence Rod Diameter: 8mm
• Base Aperture Diameter: 75mm
• Cutter Diameter (Max): 50mm
• Dust Spout Internal Diameter: 35mm
• Sound Pressure (Lpa): 94.1 dB(A)
• Acoustic Pressure (Lwa): 105.1 dB(A)
• Hand/Arm Vibration: <3.8m/s2
• Weight (Net): 5.8kg
• Power Cable Length: 3m
• 3 year warranty with online registration (UK and Eire only)

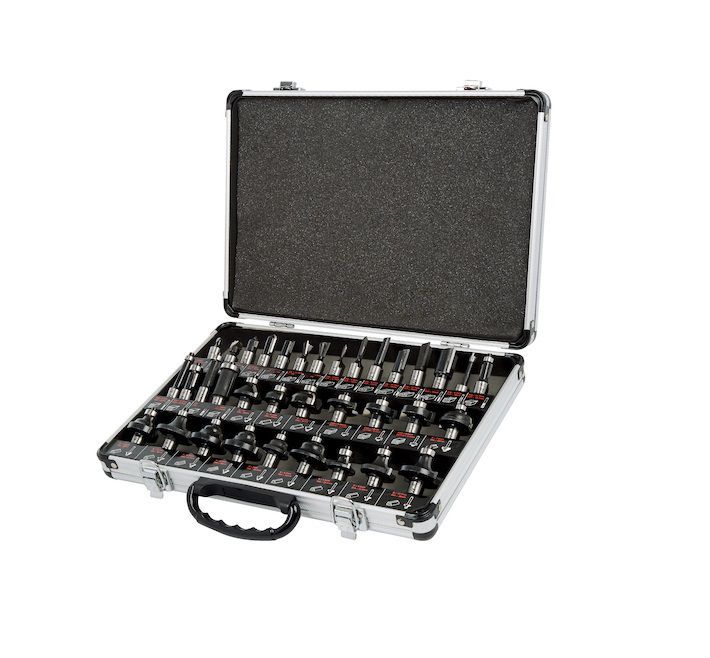

35 Piece Starter Set 1/2" Shank
Ref: SET/SS35X1/2TC

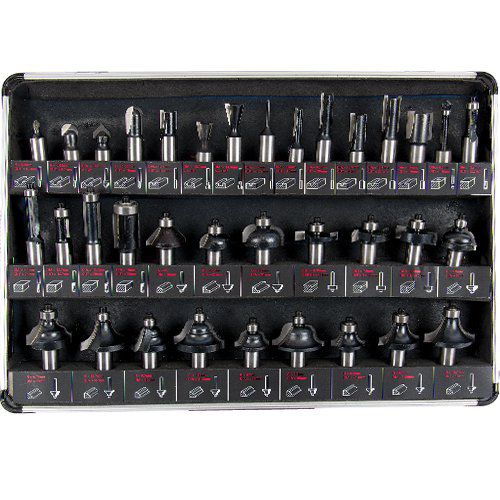

• This thirty five piece cutter set contains a range of popular Tungsten Carbide Tipped cutters for a variety of applications
• 1/2- inch shank diameter
• For softwood, hardwood, chipboard, plywood and MDF
• Excellent value for money
• Supplied in aluminium carry case

• 1 x Single flute 3.2mm x 12.7mm cut
• 1 x Straight 6.3mm x 19mm cut
• 1 x Straight 9.5mm x 25mm cut
• 1 x Straight 12.7mm x 19mm cut
• 1 x Straight 12.7mm x 25mm cut
• 1 x Straight 19mm x 19mm cut
• 1 x Pierce and trim 6.3x 18mm
• 1 x 45 Degree v groove x 12.7mm dia
• 2 x Dovetail 12.7mm and 14.3mm dia
• 2 x Cove R3.2mm & R6.35mm
• 1 x Long series cove R6.35mm x 18mm cut
• 5 x Guided trimmer 9.5x12.7mm, 9.5x25mm, 12.7x12.7mm, 12.7x25mm & 19x25mm
• 1 x Guided 45 degree chamfer 30mm dia
• 3 x Guided round over R6.3mm, R9.5mm & R12.7mm
• 1 x Guided ovolo R12.7mm
• 1 x Guided cavetto R7.9mm
• 2 x Guided cove R6.3mm & R9.5mm
• 3 x Guided groover 6.35mm x 9.5mm deep, 7.9mm x 9.5mm deep & 9.5mm x 9.5mm deep
• 1 x Hinge recess straight 12.7mm dia x 12.7mm cut
• 2 x Guided roman ogee R4.7mm & R6.35mm
• 2 x Guided R4mm & R6.3mm classic decor
• 1 x Guided wavy edge R4.7mm

• Shank Diameter: 1/2 inch
