Trend T5EB 1/4 Router and Door Hinge Jig Package Deal with Cutter and Chisel (H/JIG/C)

Trend T5EB 1/4 Router and Door Hinge Jig Package Deal with Cutter and Chisel (H/JIG/C)

T5 Mark 1

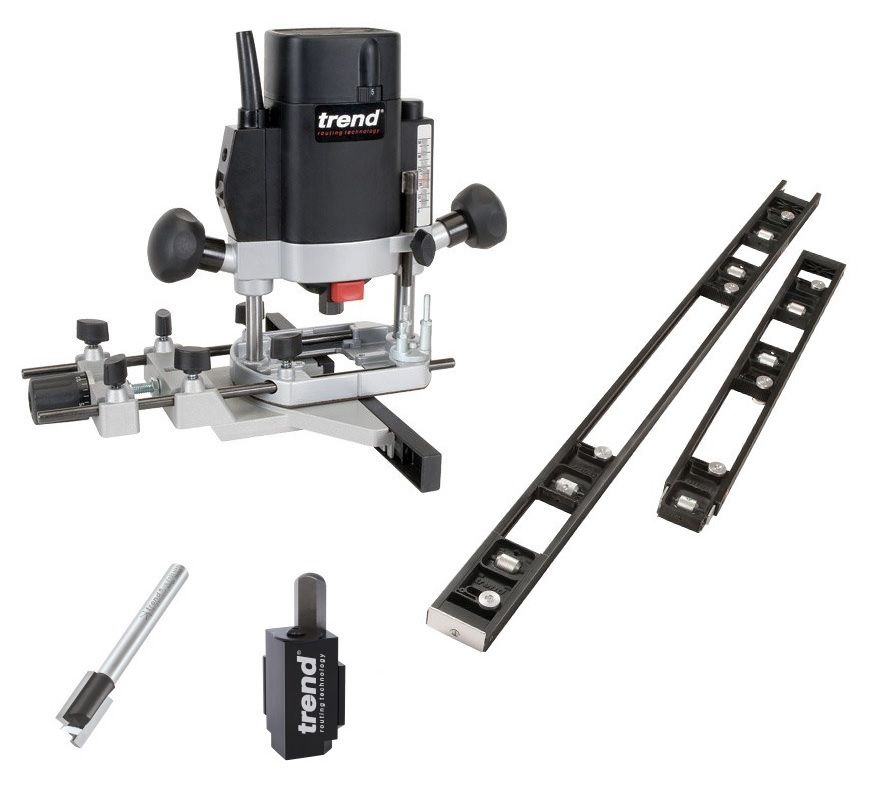

Package includes:

• 1 x TREND T5 T5EB 1000W 1/4" Collet Variable Speed Plunge Router 240V
• 1 x TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE
• 1 x TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
• 1 x TREND CORNER CHISEL C/CHISEL for Hinge Jig

Trend T5 1000W 1/4" Variable Speed Router 240V
Ref: T5EB

• Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only).
• For UK sale only.

• 1 x 1/4" Collet
• 1 x 35mm Clip-in Dust Spout
• 1 x 20mm Guide Bush
• 1 x Side-fence with Micro Adjuster
• 1 x Beam Trammel Attachment

• Rating: Professional/Trade
• Voltage: 240 volt
• Plunge stroke: 0-50 mm
• Power input: 1000 watt
• Power ampage: 4.6 amp
• Standard model collet diameter: 1/4"
• Cutter diameter max: 40 mm
• No load speeds: 9-27000 rpm
• Dust spout size ID: 35 mm
• Guide bush diameter: 20 mm
• Rod diameter: 8 mm
• Rod length: 300 mm
• Rod centres: 84 mm
• Weight: 3.3 kg
• Sound pressure Lpa: 81.0 dB(A)1
• Acoustic pressure Lwa: 94.01 dB(A)2
• Hand arm vibration: <2.5 m/s2

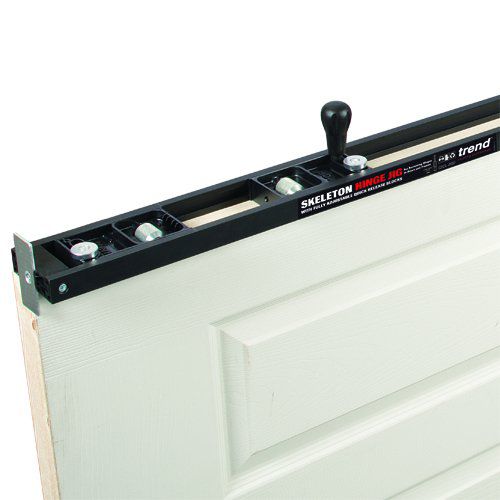

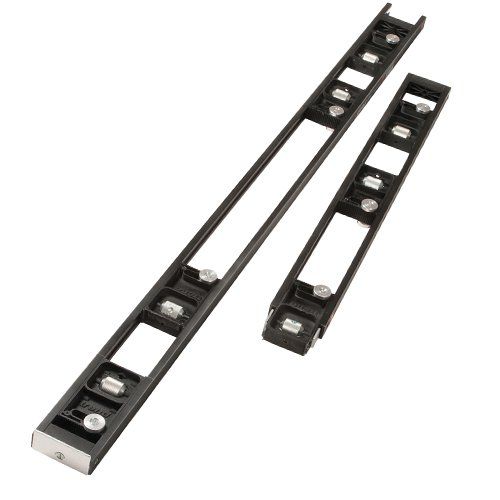

Trend Hinge Jig C - Hinge Jig Skeleton Two Part In Case - Ref: H/JIG/C

• The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.
• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Fully adjustable apertures for fire door requirements and renovation work.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
• Ideal for fitting a new door in an old frame.
• No need for marking out in the conventional way.
• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
• Unibase may be needed.
• Patent No. GB2490139
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

• 3 x Hinge sliding aperture block assemblies
• 4 x Bradawls (short blade)
• 1 x 16mm guide bush
• 1 x Carry case

• Length min: 2 5/8" (67 mm)
• Length max:  5" (127 mm)
• Width min:  1/2" (12.7 mm)
• Width max:  1 3/8" (35 mm)
• Width max. in 35mm rebate: 23 mm
• Width max. in 44mm rebate: 32 mm
• Door sizes possible
• Height min: 6' 5" (1956 mm)
• Height max: 2100 mm* (6' 10"*)
• Thickness min: 5/8" (16 mm)
• Thickness max: 2" (51 mm)
• Edge stops thickness: 6 mm
• Weight: 2.9 kg
• Jig overall length: 1956 mm
• Plate thickness: 3 mm
• Fixed stop max. thickness: 25 mm**

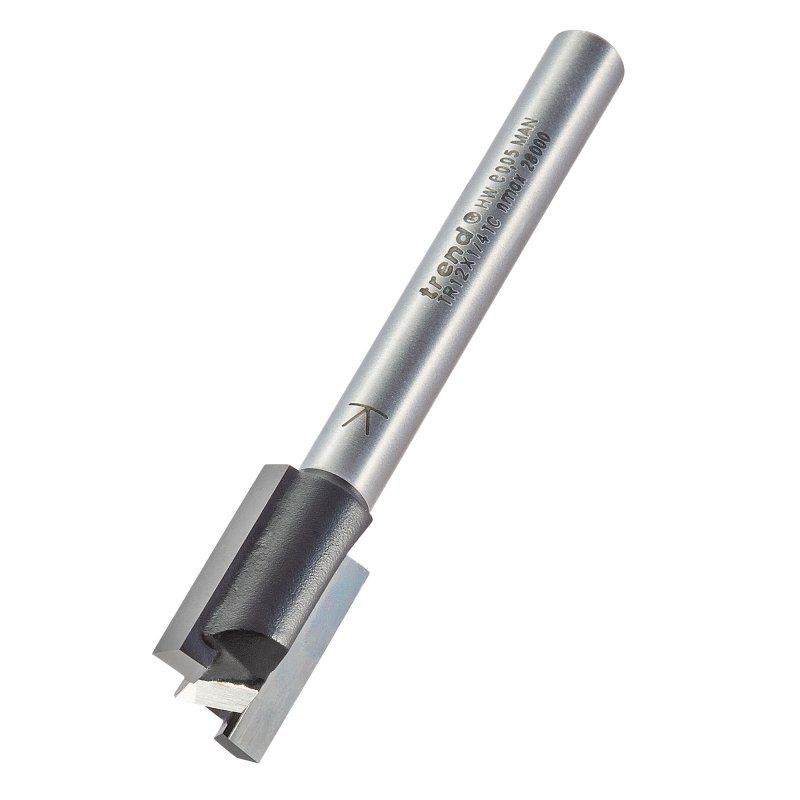

TR12X1/4TC - Two Flute Straight Cutter
12mm Dia x 19mm Cut x 1/4" Shank

For use with the Trend Hinge Jig and Lock Jig

• Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods
• For housing, grooving and mortising
• Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
• PTFE coated, indicated by distinctive black colouring
• Can be used on hardwood & softwood, fibreboard, plywood and particle board
• Etched dimensions on extra long 40mm shanks

• D: 15/32 inch (imperial diameter)
• D: 12 mm (metric diameter)
• C: 3/4 inch (imperial cut length)
• C: 19 mm (metric cut length)
• OL: 70 mm (overall length)
• Shank Diameter: 1/4 inch

Trend Corner Chisel - To quickly square up rounded corners when using lock and hinge jigs - (Ref: C/CHISEL)

• Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
• Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
• Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
• Light weight aluminium body design
• Can be used with the Trend Hinge Jig
• Can be resharpened

• Length: 70 mm
• Width: 29 mm
• Weight: 100 g
