Trend T10EK - 2000W 1/2" Router with Skeleton Jig, Straight Cutter and Corner Chisel
Product Code: T10EK-PK7
Brand: Trend
In Stock
Was £769.22 Inc. VAT
Now £585.99!
£488.33 Exc. VAT
COLLECTION
DELIVERY

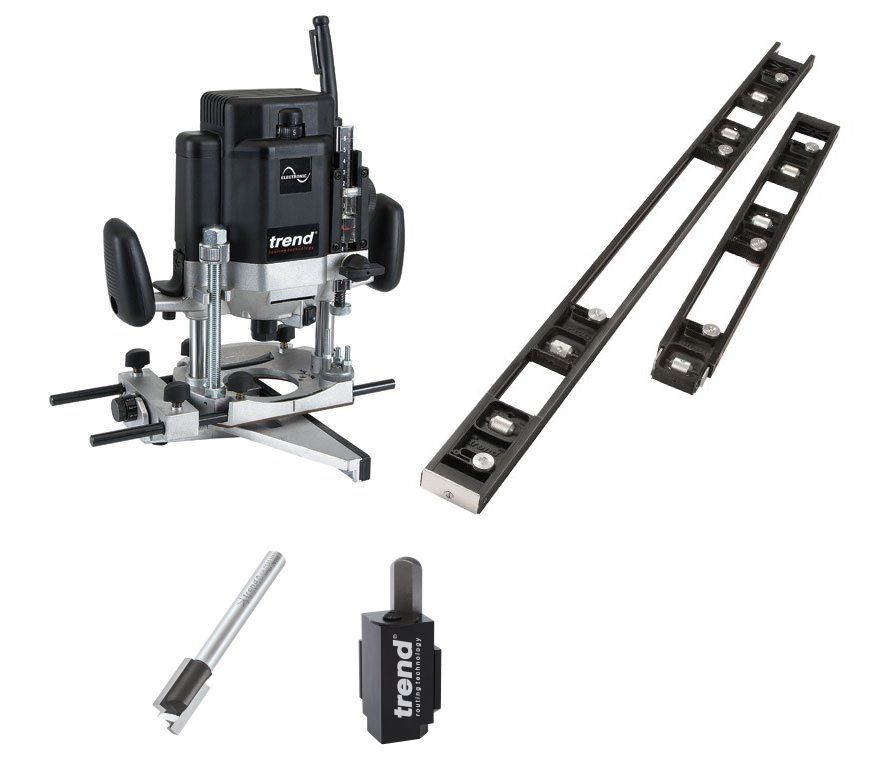

Trend T10EK - 2000W 1/2" Router with Skeleton Jig, Straight Cutter and Corner Chisel
Package includes:
- 1 x Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
- 1 x TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE
- 1 x TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
- 1 x TREND CORNER CHISEL C/CHISEL for Hinge Jig
Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
Heavy Duty Trade Router Designed for Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.
Key Features
- Powerful 2000 Watt Motor for heavy duty work
- Electronic variable speed control with soft start for a better finish
- Micro adjustable side fence: Improves accuracy with micro adjustments for straight edge work
- 80mm plunge depth: Ideal for worktop fitting and lock body mortising
- Electronic full wave variable control of spindle speed under load for a fine finish on all types of material.
- Soft start eliminates sudden movement of machine on start up.
- Two column precision base with large phosphor bronze bushes for plunging accuracy.
- Spindle lock and hex collet nut results in easy cutter changes with the 22mm spanner supplied.
- Adjustable twin rod parallel side-fence guide with integral micro-adjuster for straight edge work.
- Precision machined one-piece multi-slit collet for fail-safe grip of cutter shank.
- 3-position revolving depth stop for fast adjustable settings.
- Adjustable inner plate for guide bush accuracy.
- Large base aperture for large cutters with quick release dust spout.
- Three year extended warranty with online registration (UK and Eire only).
Items included
- 1 x 1/2" Collet - CLT/T10/127
- 1 X Inner Plate - WP-T9/075
- 1 x 30mm Guide Bush
- 1 X Line up Pin - WP-T9/090
- 1 X 35mm Clip-in Dust Spout - WP-T11/107
- 1 X Side-fence with Micro Adjuster - WP-T10/087
- 1 X Storage Case - CASE/T10
Specification
- Rating: Professional/Trade
- Voltage: 230 volt
- Plunge stroke: 0-80 mm
- Power input: 2000 watt
- Power ampage: 9.6 amp
- Standard collet dia: 1/2 inch
- No load speeds: 8-20000rpm
- Dust spout size ID: 35 mm
- Guide bush dia. supplied: 30 mm
- Cutter dia. max: 50 mm

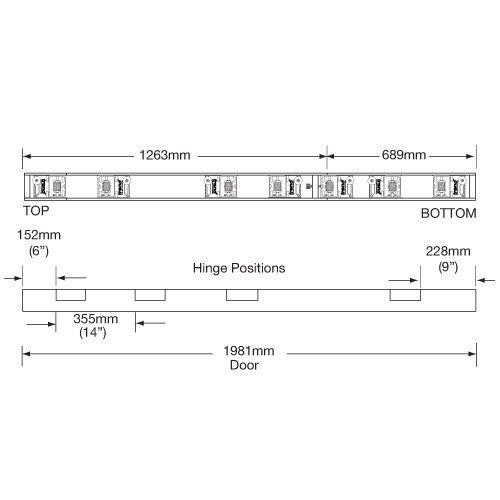

Trend Hinge Jig C - Hinge Jig Skeleton Two Part In Case - Ref: H/JIG/C
Key Features
- The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.
- It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
- Used on-site & in joinery shops to increase productivity with excellent results.
- Fully adjustable apertures for fire door requirements and renovation work.
- Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
- Ideal for fitting a new door in an old frame.
- No need for marking out in the conventional way.

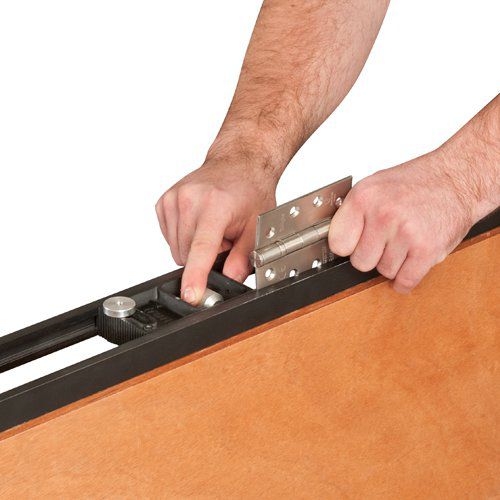

- Quick & simple to set-up as the hinge is used as the pattern.
- Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
- Use with a light duty plunge router with 1/4 inch collet.
- Long reach router cutter required, 12mm diameter with 70mm overall length.
- Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
- Unibase may be needed.
- Patent No. GB2490139
- T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
Items included
- 3 x Hinge sliding aperture block assemblies
- 4 x Bradawls (short blade)
- 1 x 16mm guide bush
- 1 x Carry case
Specification
- Length min: 2 5/8" (67 mm)
- Length max: 5" (127 mm)
- Width min: 1/2" (12.7 mm)
- Width max: 1 3/8" (35 mm)
- Width max. in 35mm rebate: 23 mm
- Width max. in 44mm rebate: 32 mm
- Door sizes possible
- Height min: 6' 5" (1956 mm)
- Height max: 2100 mm* (6' 10"*)
- Thickness min: 5/8" (16 mm)
- Thickness max: 2" (51 mm)
- Edge stops thickness: 6 mm
- Weight: 2.9 kg
- Jig overall length: 1956 mm
- Plate thickness: 3 mm
- Fixed stop max. thickness: 25 mm**
* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
** Max. hinge leaf width 22mm (35mm doors)
TR12X1/4TC - Two Flute Straight Cutter
12mm Dia x 19mm Cut x 1/4" Shank
For use with the Trend Hinge Jig and Lock Jig
Key Features
- Gives a clean finish to abrasive materials such as chipboard, MDF, plywood and certain hardwoods
- For housing, grooving and mortising
- Features 2mm micrograin Tungsten Carbide tips, for cutting the most abrasive materials to give extra long life
- PTFE coated, indicated by distinctive black colouring
- Can be used on hardwood & softwood, fibreboard, plywood and particle board
- Etched dimensions on extra long 40mm shanks
Specification
- D: 15/32 inch (imperial diameter)
- D: 12 mm (metric diameter)
- C: 3/4 inch (imperial cut length)
- C: 19 mm (metric cut length)
- OL: 70 mm (overall length)
- Shank Diameter: 1/4 inch
Trend Corner Chisel - To quickly square up rounded corners when using lock and hinge jigs - (Ref: C/CHISEL)
Key Features
- Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
- Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
- Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
- Light weight aluminium body design
- Can be used with the Trend Hinge Jig
- Can be resharpened
Specification
- Length: 70 mm
- Width: 29 mm
- Weight: 100 g
