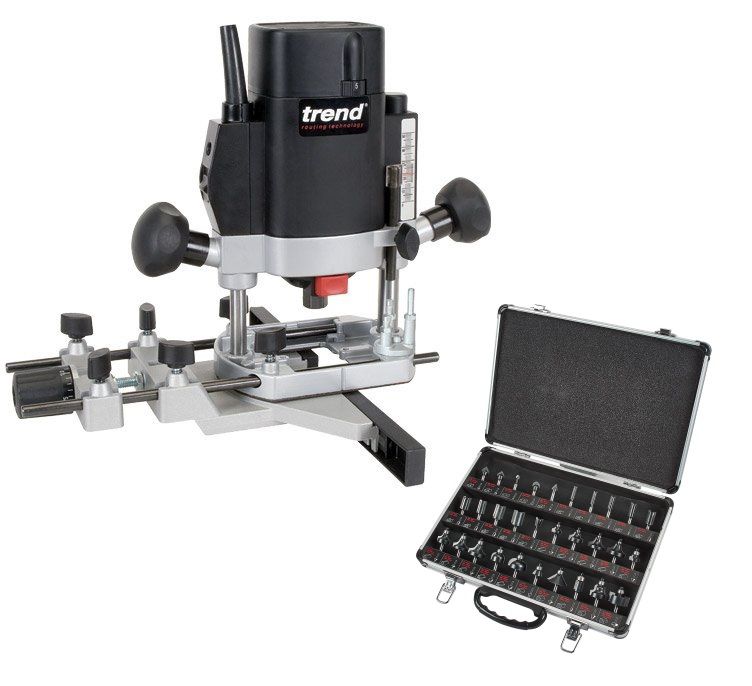

TREND T5EB 1/4" Plunge Router with 30 Piece Cutter Set

TREND T5EB 1/4" Plunge Router with 30 Piece Cutter Set

T5 Mark 1

Trend T5EB Router 240v

Electronic full wave variable control of spindle speed under load for a fine finish on all types of material

• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout
  and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only)

• Rating: Professional / Trade
• Plunge stroke: 0-50 mm
• Power input: 1000 watt
• Power ampage: 4.6 amp
• Standard collet dia: 1/4"
• No load speeds: 9-27000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 20 mm
• Rod diameter: 80 mm
• Rod length: 300mm
• Rod centres: 84 mm
• Cutter dia. max: 40 mm
• Other collet dia: none only 1/4"
• Weight: 3.3kg
• Voltage: 240 volt
• Sound pressure Lpa: 81.0 dB(A)1
• Acoustic pressure Lwa: 94.01 dB(A)2
• Hand arm vibration: <2.5 m/s2

• 1 x 1/4" Collet
• 1 X 20mm Guide Bush
• 1 X 35mm Clip-in Dust Spout
• 1 X Side-fence with Micro Adjuster
• 1 X Beam Trammel Attachment

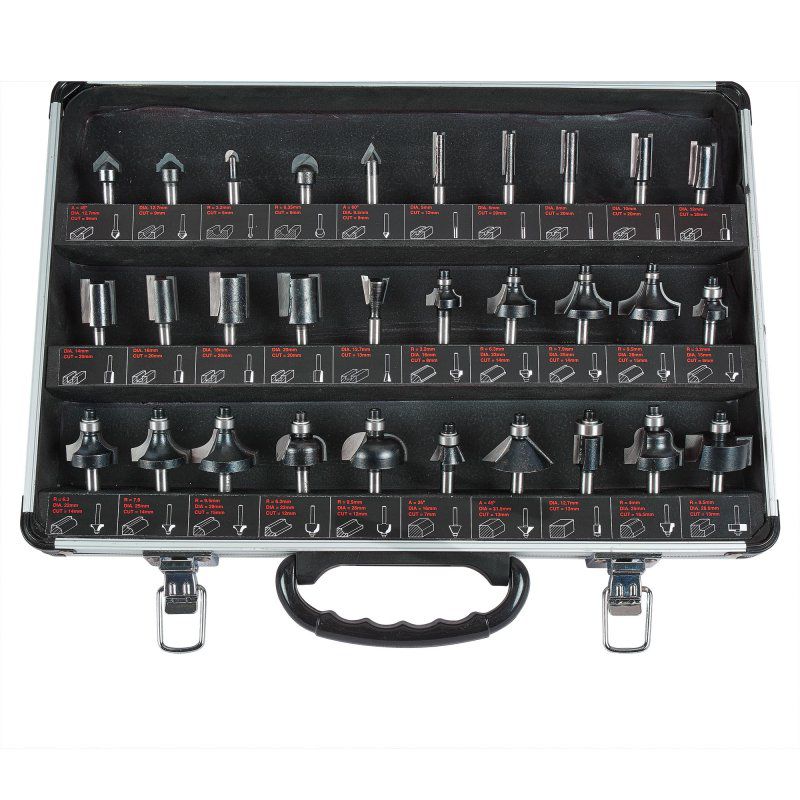

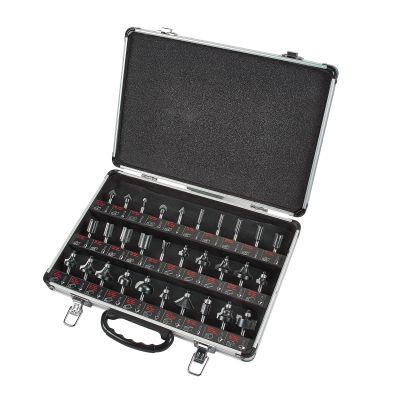

30 Piece Starter Set 1/4" Shank
Ref: SET/SS31X1/4TC

• This thirty-piece cutter set contains a range of popular Tungsten Carbide Tipped cutters for a variety of applications
• 1/4-inch shank diameter
• For softwood, hardwood, chipboard, plywood and MDF
• Excellent value for money
• Set includes fifteen guided and fifteen unguided router cutters
• Supplied in aluminium carry case

• 1 x Straight 5mm x 12mm cut
• 1 x Straight 6mm x 20mm cut
• 1 x Straight 8mm x 20mm cut
• 1 x Straight 10mm x 20mm cut
• 1 x Straight 12mm x 20mm cut
• 1 x Straight 14mm x 20mm cut
• 1 x Straight 16mm x 20mm cut
• 1 x Straight 18mm x 20mm cut
• 1 x Straight 20mm x 20mm cut
• 1 x 45 Degree v groove x 12.7mm dia
• 1 x 45 Degree v groove x 9.5mm dia
• 1 x Dovetail 104 deg x 12.7mm dia
• 2 x Core box R3.2mm & R6.35mm
• 1 x Guided trimmer 12.7mm x 13mm
• 1 x Guided 45 degree chamfer 31.5mm dia
• 1 x Guided 25 degree chamfer 16mm dia
• 4 x Guided round over R3.2, R6.3mm, R7.9mm & R9.5mm
• 4 x Guided ovolo R3.2mm, R6.3mm, R7.9mm & R9.5mm
• 2 x Guided cove R6.3mm & 9.5mm
• 1 x Classic panel 12.7mm dia
• 1 x Guided roman ogee R4mm x 25mm dia
• 1 x Guided rebater 9.5mm x 28.6mm dia

• Shank Diameter: 1/4 inch
