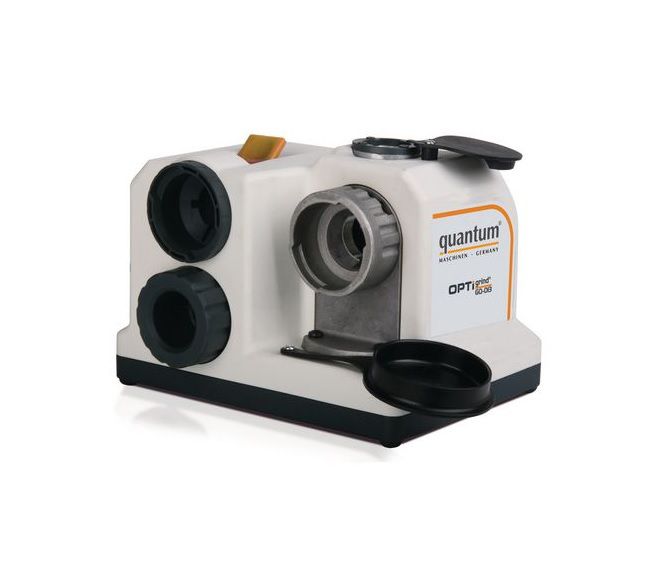

Sturmer Optimum Quantum GQ-D13 Drill Grinding Machine 80W 230v

Sturmer Optimum

Quantum GQ-D13 Drill Grinding Machine 80W 230v

ref: 3140020

• OPTI-grind GQ-D13 3-13mm Drill grinding machine + auto grinding of the drill bit geometry + diamond grinding stone for perfect finish + 80W motor 230v
• Easy operation for cost-effective grinding of double-edged twist drills
• Drill loops with no previous knowledge - clean, fast and precise
• Easy to transport
• Easy replacement of the grinding wheel
• Sharpening forced action and therefore easy to use
• Automatic grinding of the tip geometry thanks to the cam
• Robust plastic housing with non-slip feet
• Diamond grinding stone with long life for a perfect finish

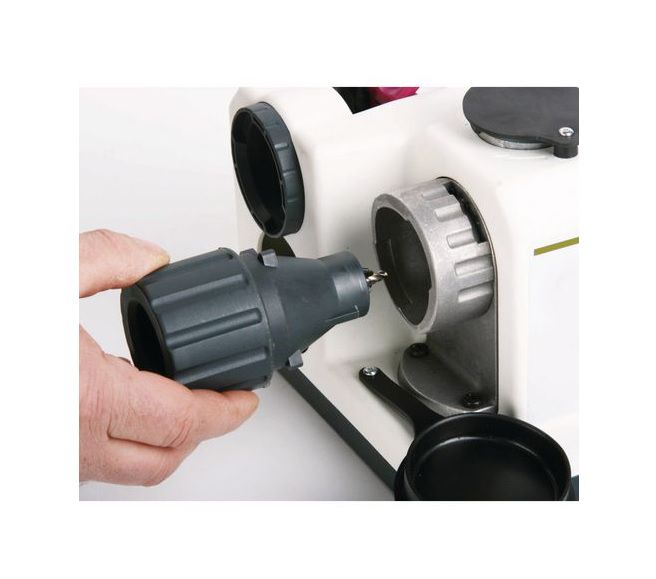

• Adjust drill bit - Twist drill is aligned in the overhang length and in the correct angle

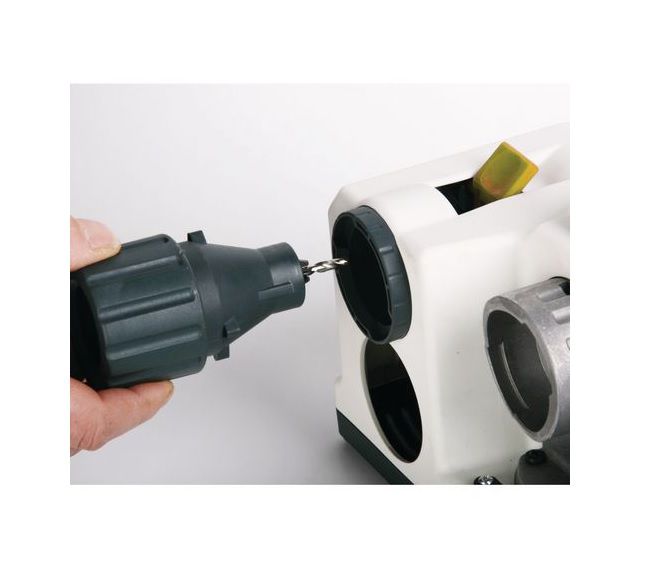

• Regrind the drill - by turning it from one stop to the other
• Tooth drill - Also by slightly turning from stop to stop

• Speed: 4200 min¯¹
• Grinding disc external diameter: 78 mm
• Grinding capacity drill diameter: 3 – 13 mm
• VPE: 1

Dimensions and weights

• Length approx.: 220 mm
• Width/depth approx.: 200 mm
• Height approx.: 160 mm
• Weight approx.: 2.5 kg

Electrical Data

• Drive motor output: 0.08 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
