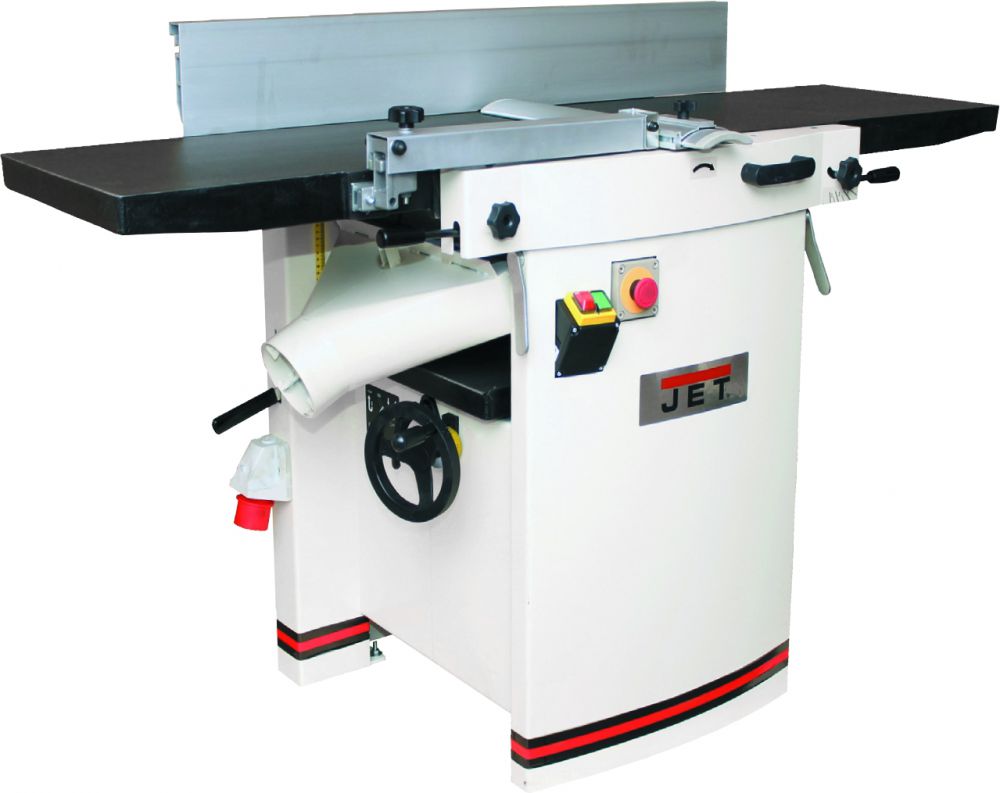

Jet JPT-410HH-T HELICAL PLANER THICKNESSER

JET HELICAL PLANER THICKNESSER 400V
Ref: JPT-410HH-T

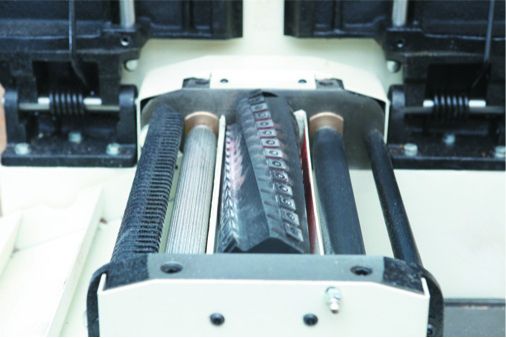

• Integrated spiral planing shaft fitted with 56×4-fold carbide cutting inserts
• Optimal surface finish through drawn cut, tear-free even with an unfavourable grain structure
• The volume of chips is significantly reduced (approx. 50%)
• Extremely quiet
• The fine-grain carbide cutting inserts are robust and wear proof (5×HSS), simply continue turning by 90° to the next cutting edge where required
• A machine investment that will pay off

• Motor (V/kW): 400/3.7
• Cutterhead rotation (rpm): 5500
• Feed speed (m/min): 7
• Maximum planing width (mm): 407
• Thicknessing height (mm): 4 – 225
• Maximum depth of cut (mm): 3
• Maximum thicknessing depth of cut (mm): 4.5
• Number of knives: 4
• Planer blades (mm) –
• Depth of cut table size (mm): 1660
• Planing table length (mm): 1100×150
• Indexable inserts number: 56
• Minimum thicknessing length (mm): 150
• Fence size (mm): 1100×150
• Fence tilt (deg.): 45° /90°
• Dust port (ø-mm): 100/120
• Dimensions (mm): 1660×870×1000
• Weight (kg): 315

• Motor KW: 400v/3.7kw
• Table Size: 1100×150mm
• Feed Speed: 7
• Dimensions L x W x H: 1660×870×1000mm
