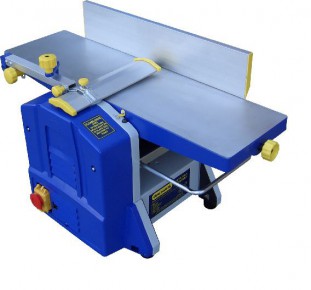

Charnwood W588 8'' x 5'' Bench Top Planer Thicknesser

Click For Bigger Image
Product Code: CH/W588
In Stock

£269.00 Inc. VAT
£224.17 Exc. VAT
Qty
Bookmark and Share
Charnwood
Click For Bigger Image: Click For Bigger Image: Click For Bigger Image:
Product Features & Specification



Charnwood W588 8" x 5" Bench
Top Planer Thicknesser

Key Features

A compact and portable planer thicknesser.

  • 8'' Planing Capacity
  • 8'' x 5'' Thicknessing Capacity
  • Aluminium Tables To Minimise Weight
  • Extruded Guide Fence For Accuracy
  • Tilting Fence With Twin Guides
  • Rubber Coated Feed Rollers
  • 100mm Diameter Chip Extraction Outlet

Light enough to move off the bench when not in use and yet tough enough to produce 8" x 5" timber into flat and dimensioned pieces. The planing beds are precision ground aluminium and the guide fence is a rigid aluminium extrusion which can be tilted and locked at any angle up to 45 degrees when required.

The steel thicknessing bed has an extension arm on the outfeed side and is supported in each corner by chain driven adjusting screws. Once the height is set, rubber coated feed rollers pass the timber through the high speed cutterblock leaving a beautiful finish with no roller marks.

The dust hood is particularly good, fitting onto the thicknessing bed during planing operations and then moved over the top when thicknessing. As a safety feature a location sensor detects that the dust hood has been correctly fitted before allowing the motor to run.

Supplied with re-grindable knives, 100mm diameter dust extraction outlet, blade setting tool, 4 adjustable rubber feet, cable and plug.

Specifications

Surfacing width 200mm
Length of surfacing tables 740mm
Maximum depth of cut 3mm
Fence tilt 90 - 45
Table height 360mm
Thicknessing capacity 5 - 125mm
Length of thicknessing table 270mm
Feed speed 8m/min
Maximum depth of cut 2mm
Cutterblock speed 8000rpm
Number of knives 2
Motor (carbon brush) 1500w
Dimensions (WxDxH) 790mm x 420mm x 470mm
Weight 28kg
Rating Hobby
Warranty  1 Year

Online Video





Charnwood Operators Manual

It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
